Backyard Creations CON-1010-21 - Step 7: Connect Bar Connectors to Corner Posts; Step 8: Install Bar Shelves

12 of 19

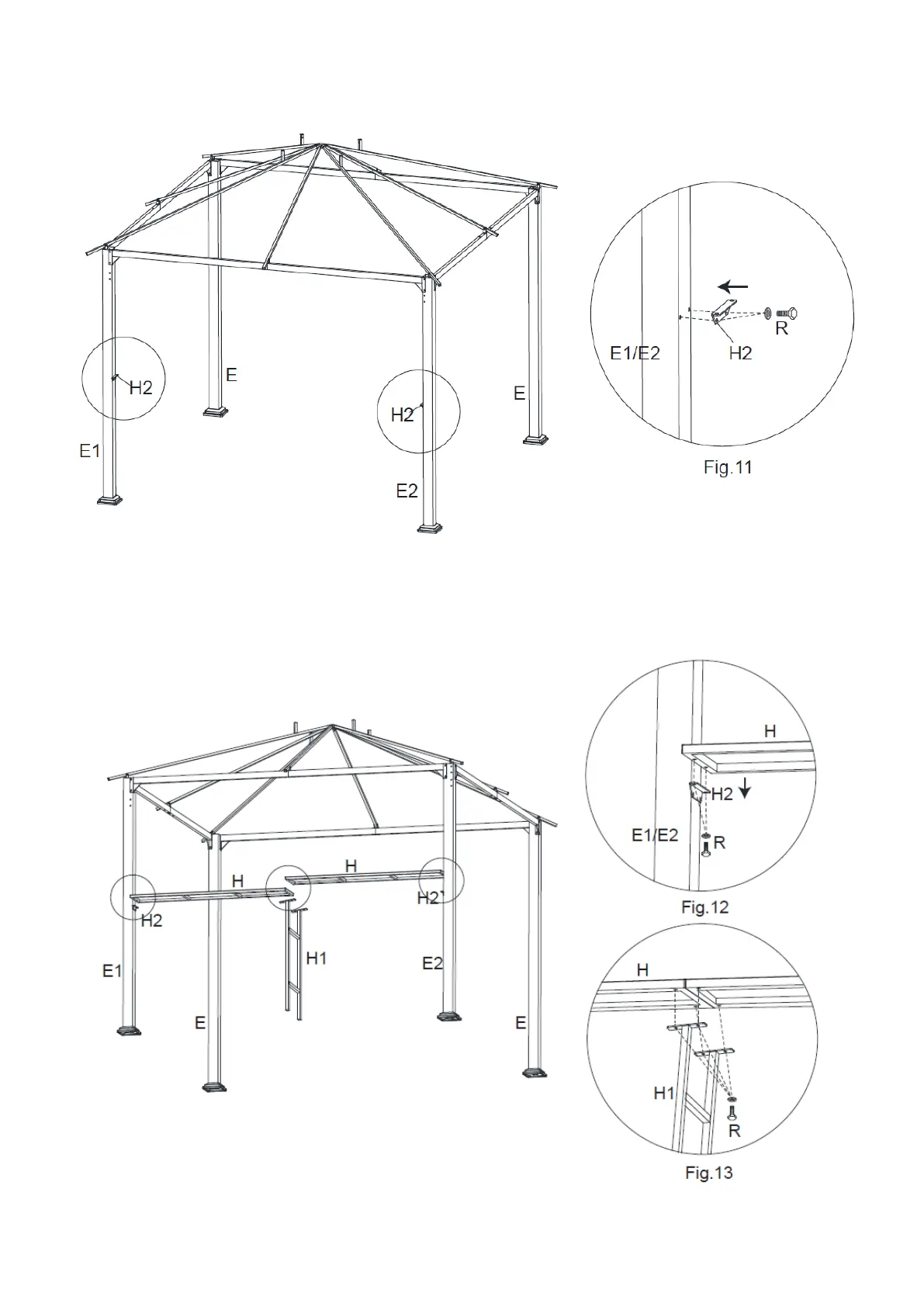

Step 7: Connect the Bar Connector (H2) to the Corner Post (E1/E2) and tighten with Bolt and Washer (R).
See Figure 11. TIGHTEN BOLTS.
Step 8: Using two people connect one end of the Bar Shelf (H) to Bar Connector (H2) using Bolt and
Washer (R). Attach opposite end to the Bar Support Stand (H1) using Bolt and Washer (R). Repeat
for second Bar Shelf (H). See Figure 12 and Figure 13. TIGHTEN BOLTS.
