Backyard Creations CON-1010-21 - Step 10 A: Place Main Roof Canopy; Step 10 B: Attach Assembled Upper Roof Frame

14 of 19

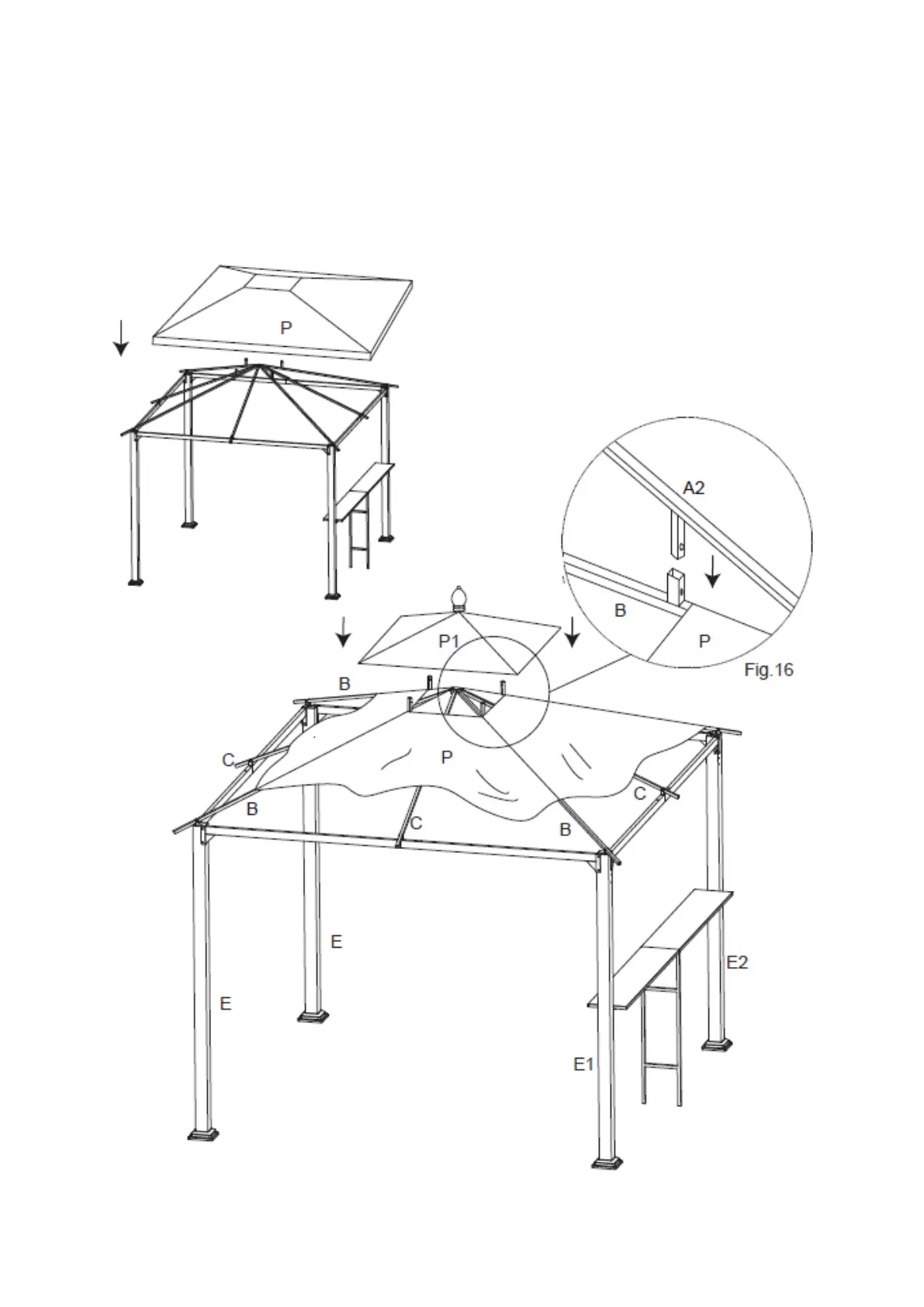

Step 10A: Place Main Roof Canopy (P) over main roof frame.
Note: The Main Roof Canopy (P) has two "open" corner seams. The "open" corner seams are
placed over Corner Posts (E1/E2). Do not secure the Main Roof Canopy (P) until the upper roof
frame is installed.
Step 10B: Attach assembled upper roof frame by inserting the Upper Roof Support (A2) into the Main
Roof Corner Supports (B) until the "push button" lock clicks. Repeat for each corner. See Figure
16.
