Backyard Creations CON-1010-21 - Step 3 A: Attach Cross Beams to Corner Posts; Step 3 B: Attach Cross Beams to Corner Posts

8 of 19

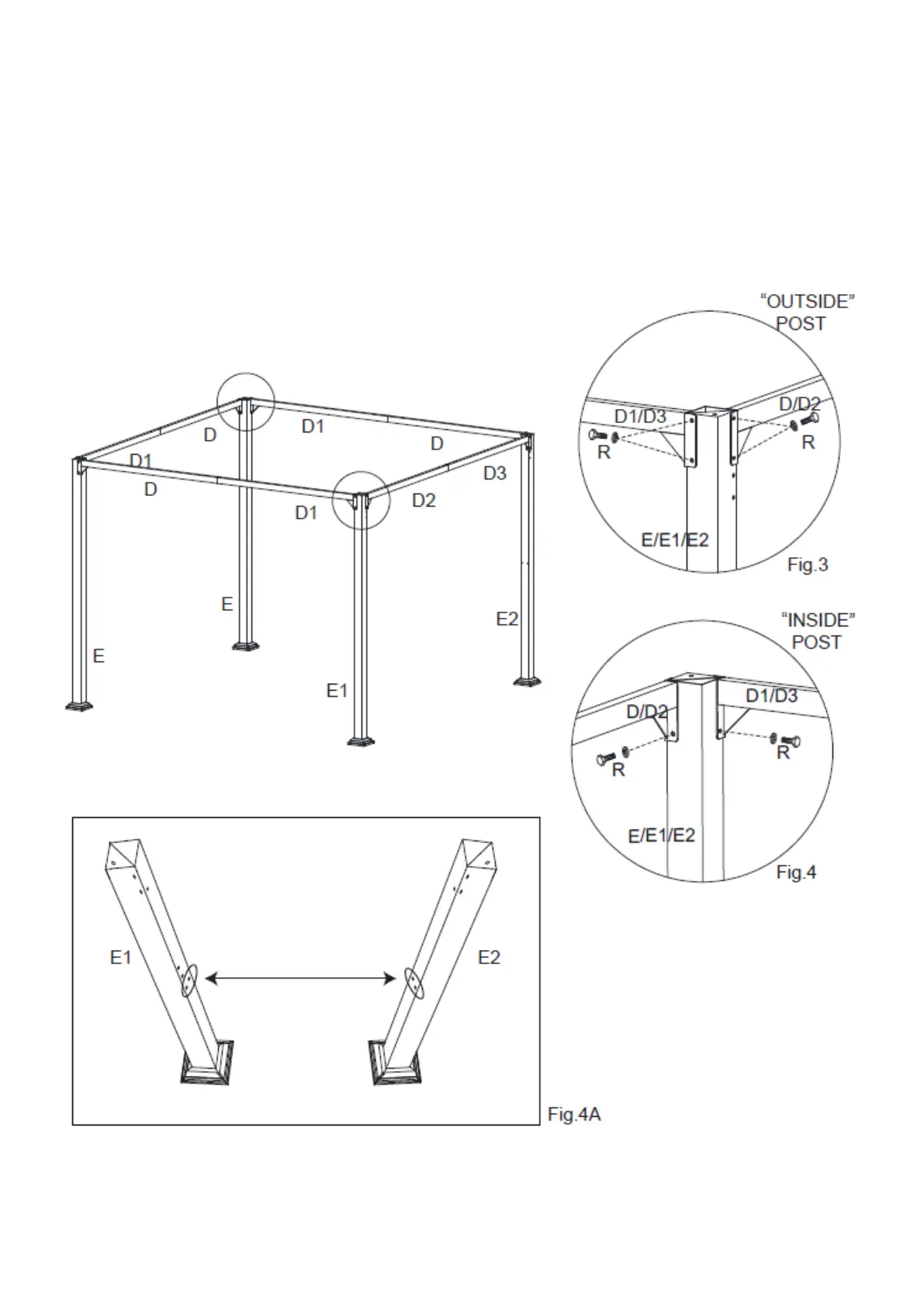

Step 3A: Attach Cross Beams (D/D1) to Corner Posts (E/E) using Bolt and Washer (R). Repeat for corner
Posts (E/E1) and (E/E2). See Figure 3 and Figure 4.
DO NOT TIGHTEN BOLTS UNTIL AFTER STEP 4
Step 3B: Attach Cross Beams (D2/D3) to Corner Post (E1/E2) using Bolt and Washer (R). See Figure 3 and
Figure 4.
Note: Bar Shelf connector holes must face each other on Corner Posts (E1/E2). See Figure 4A. This
is required for installing bar shelfs.
DO NOT TIGHTEN BOLTS UNTIL AFTER STEP 4
