Backyard Discovery BEACH FRONT - Page 21

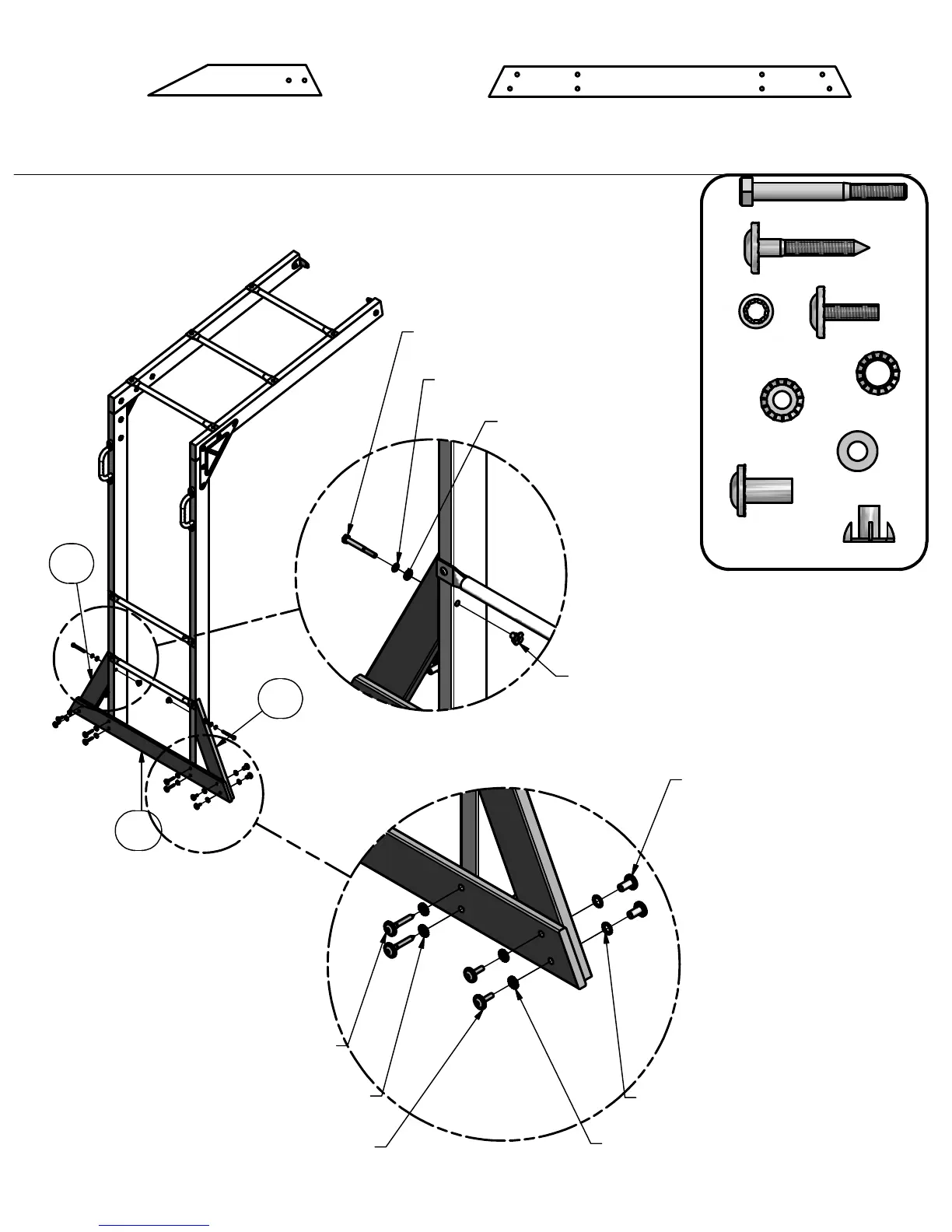

MONKEY BAR ASSEMBLY
STEP 6
BOLT HEX
5/16x2-3/4
(2)
LAG SCREW
WH 5/16x2
(4)
WASHER
LOCK EXT
8x19
(8)
WASHER
LOCK EXT
12x19
(4)
WASHER
LOCK INT
8x15
(2)
WASHER
FLAT 9x18
(2)
T-NUT 5/16
(2)
NUT BARREL
WH 5/16x7/8
(4)
BOLT HEX 5/16x2-3/4
(2 PLCS)
WASHER LOCK INT 8x15
(2 PLCS)
WASHER FLAT 9x18
(2 PLCS)
WASHER LOCK EXT 8x19
(4 PLCS)
BOLT WH 5/16x1
(4 PLCS)
LAG SCREW WH 5/16x2
(4 PLCS)
WASHER LOCK EXT 8x19
(4 PLCS)
H81
H81
M82
H81 - MONKEY BAR BRACE - W4L06965
1"x3 3/8"x19 3/8" (24x86x492)
(2)
M82 - MONKEY BAR GROUND BOARD - W4L06966
5/8"x3 3/8"x40 3/8" (16x86x1026.204)
(1)
T-NUT 5/16
(2 PLCS)
WASHER LOCK EXT 12x19
(4 PLCS)
NUT BARREL WH 5/16x7/8
(4 PLCS)
BOLT WH
5/16x1
(4)
