Backyard Discovery BEACH FRONT - SLIDE ASSEMBLY

SLIDE ASSEMBLY

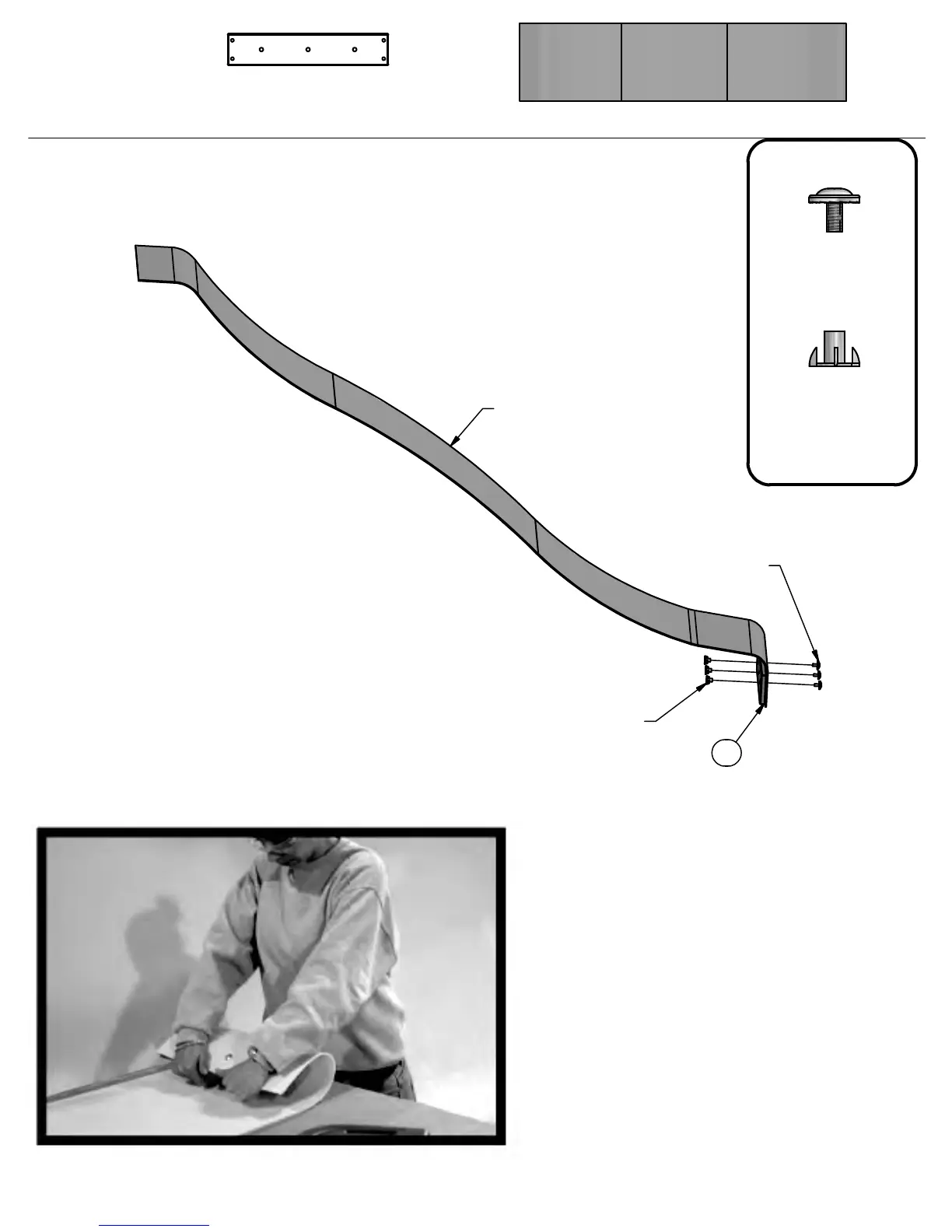

STEP 1
TOP
BOTTOM
TIP: PREBENDING THE ENDS WILL EASE ASSEMBLY.
M77 - SLIDE BRACE - W100544
(1)
BOLT WH
5/16x1/2
(3)
USE 'M77' SLIDE BRACE AS A
TEMPLATE FOR DRILLING
BOTTOM HOLE PATTERN IN
SLIDE BED. BE SURE TO PLACE
SLIDE BRACE UP 1/4" FROM
BOTTOM EDGE OF SLIDE BED
BEFORE MARKING HOLE
PATTERN. USE A 7/16" DRILL BIT.
T-NUT 5/16
(3)
- SLIDE BED 8' LIME - A6P00131
(1)
BOLT WH 5/16x1/2
(3 PLCS)
T-NUT 5/16
(3 PLCS)
M77
SLIDE BED 8' LIME
