Backyard Discovery BEACH FRONT - Page 31

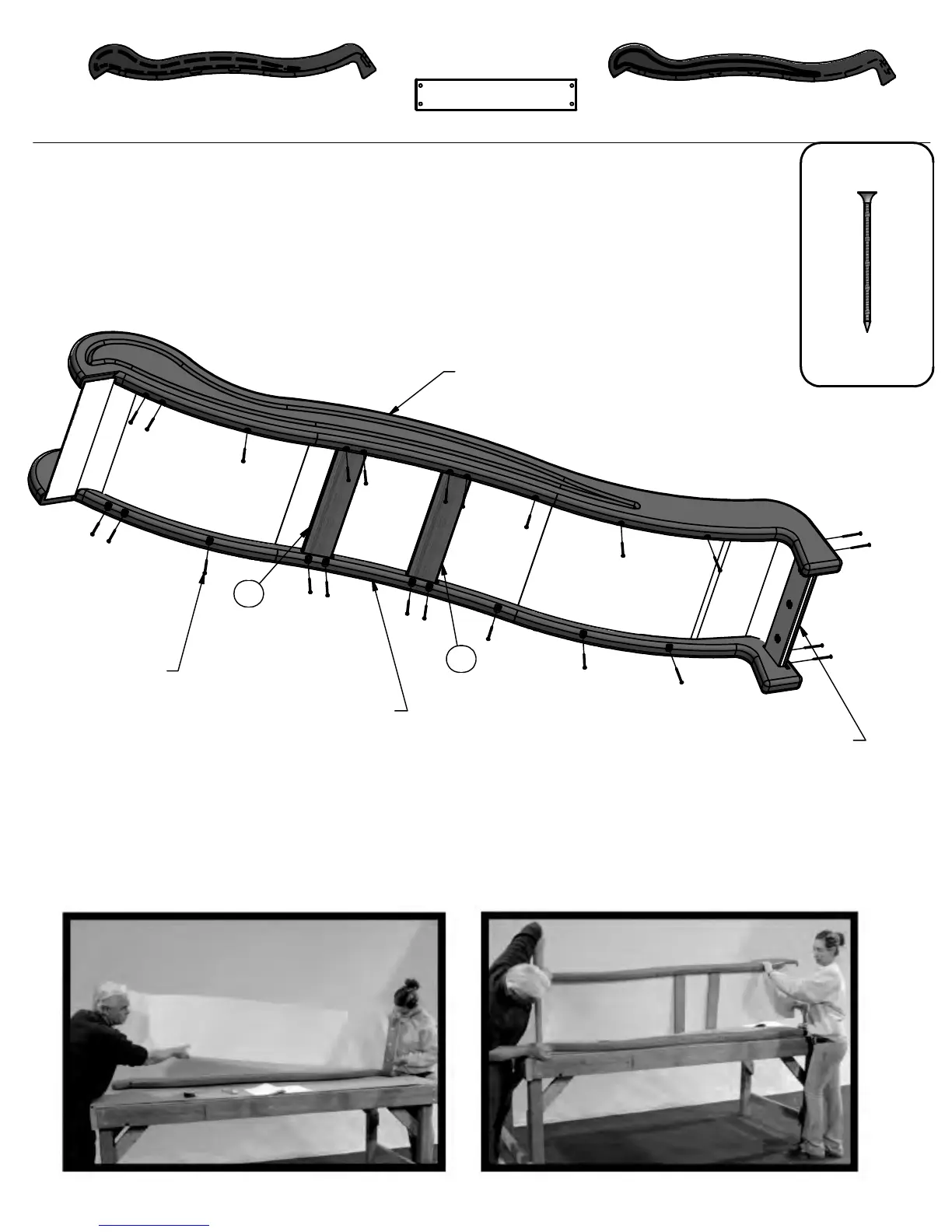

SLIDE ASSEMBLY
STEP 2
TIP: A HELPER IS REQUIRED FOR THIS PHASE.
NOTE:
MAKE CERTAIN
SUPPORTS AND SLIDE
BED ARE FULLY
ENGAGED WITHIN
CHANNEL OF SLIDE
RAILS.
SCREW PFH
8
x2 1/2
(24)
M78 - CENTER SLIDE BRACE - W100545
(2)
HA - SLIDE RAIL 8' BLUE LEFT - A100162
(1)
GZ - SLIDE RAIL 8' BLUE RIGHT - A100161
(1)
PRE-DRILL USING 1/8" DRILL BIT.
SCREW PFH 8x2 1/2
(24 PLCS)
M78
M78
SLIDE RAIL 8' BLUE RIGHT
SLIDE RAIL 8' BLUE LEFT
