Backyard Discovery BEACH FRONT - Page 32

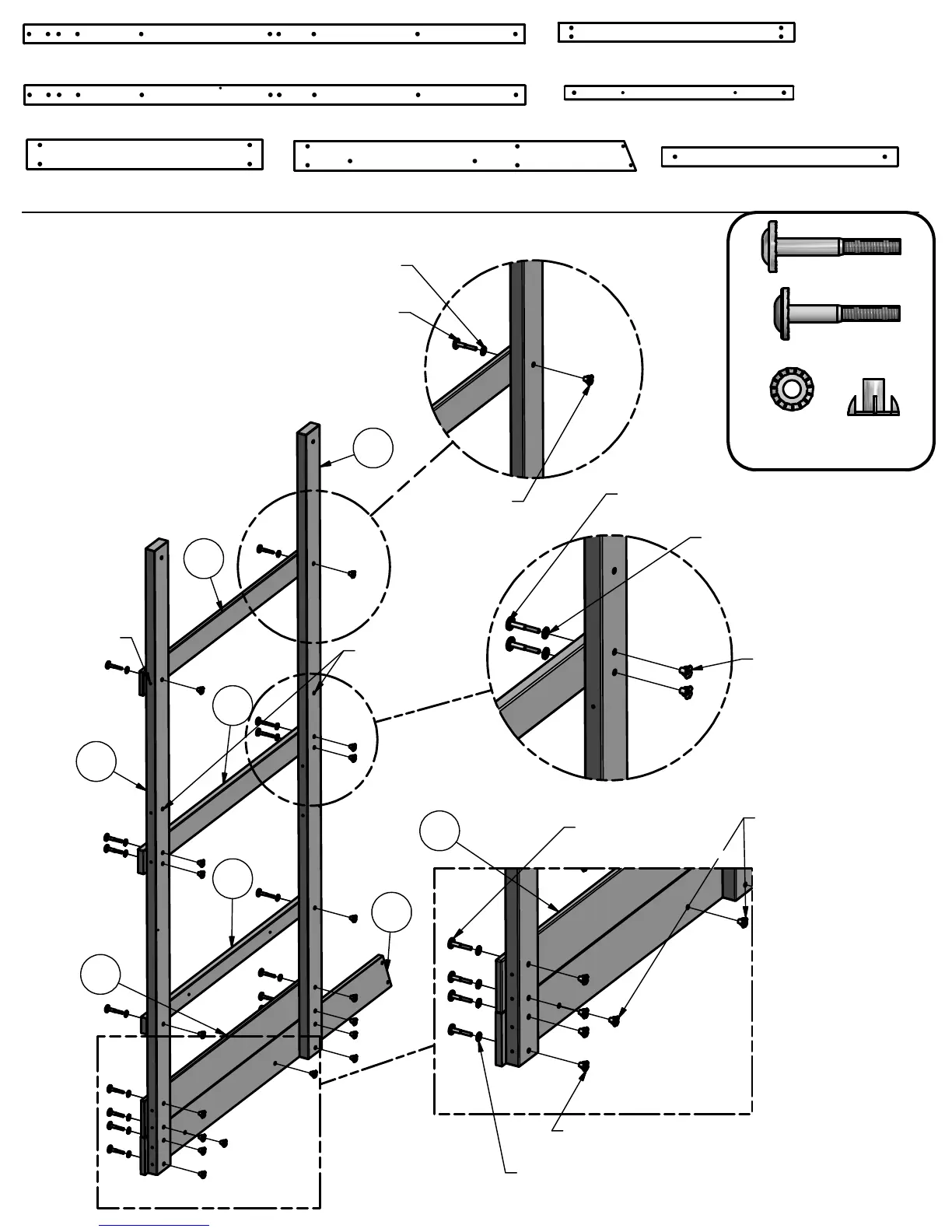

STEP 1
E2
M8
E3
H1
J1
K4
K3
K3
BOLT WH
5
/16x2
(10)
WASHER
LOCK EXT
8x19
(16)
T-NUT 5/16 (18)
E2 - UPRIGHT - W4L06891
1
3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
E3 - UPRIGHT - W4L06892
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
K3 - GROUND BOARD - W4L06896
5/8"x5 1/4"x42 1/8" (16x134x1070)
(1)
H1 - FLOOR RAIL - W4L06898
1"x3 3/8"x42 1/8" (24x86x1070)
(1)
J1 - WALL RAIL - W4L06900
1"x2 3/8"x40 7/8" (24x60x1038)
(1)
K4 - GROUND BOARD - W4L06899
5/8"x5 1/4"x61" (16x134x1549)
(1)
M8 - WALL RAIL - W4L06920
5/8"x3 3/8"x42 1/8" (16x86x1070)
(1)
NOTE HOLES
BOLT WH
5/16x2 1/4
(6)
NOTE HOLES
CENTER T-NUTS
SHOULD BE PLACED
BEFORE MOUNTING
K3 BOARD.
BOLT WH 5/16x2 1/4
(6 PLCS)
WASHER LOCK EXT 8x19
(6 PLCS)
T-NUT 5/16
(6 PLCS)
BOLT WH 5/16x2
(8 PLCS)
WASHER LOCK EXT 8x19
(8 PLCS)
T-NUT 5/16
(10 PLCS)
BOLT WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
T-NUT 5/16
(2 PLCS)
