Backyard Discovery BEACH FRONT - Page 33

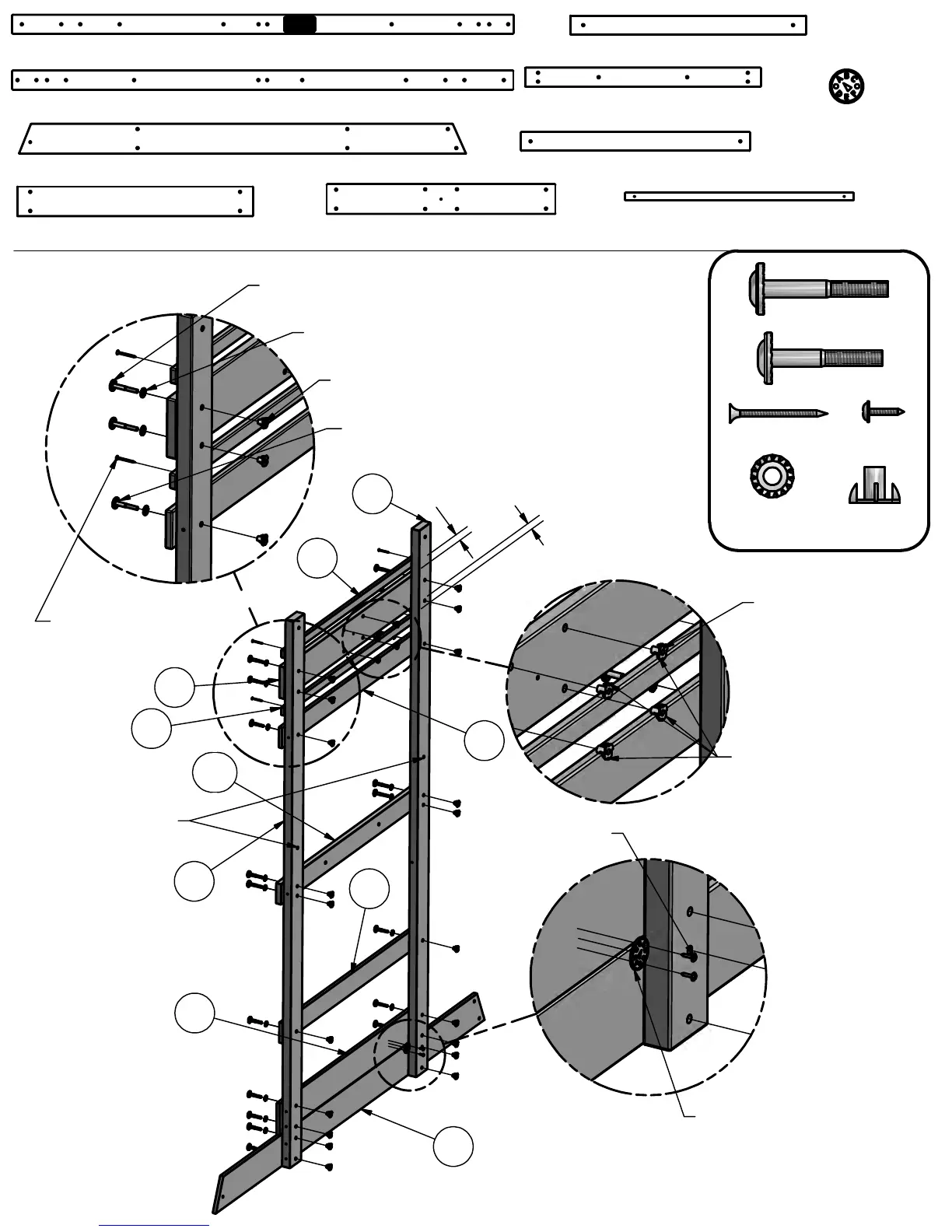

STEP 2
E4
O3
G1
O3
M8
H10
M1
E1
K3
K1
BOLT WH 5/16x2 1/4
(8 PLCS) BOLT WH
5/16x2 1/4
(8)
BOLT WH
5/16x2
(12)
SCREW PFH
8x1 3/4
(4)
SCREW PWH
8x5/8
(2)
WASHER
LOCK EXT
8x19
(20)
T-NUT 5/16
(24)
WASHER LOCK EXT 8x19
(20 PLCS)
T-NUT 5/16
(20 PLCS)
SCREW PFH 8x1 3/4
(4 PLCS)
T-NUT 5/16
(4 PLCS)
SCREW PWH 8x5/8
(2 PLCS)
"A" REVISION TAG
SHOULD BE PLACED
ON K3 BOARD NEXT TO
E4 BOARD.
E4 - UPRIGHT - W2A01970
1
3/8"x3 3/8"x57 3/8" (36x86x2274)
(1)
E1 - UPRIGHT - W4L06890
1 3/8"x3 3/8"x89 1/2" (36x86x2274)
(1)
K3 - GROUND BOARD - W4L06896
5/8"x5 1/4"x42 1/8" (16x134x1070)
(1)
M8 - WALL RAIL - W4L06920
5/8"x3 3/8"x42 1/8" (16x86x1070)
(1)
G1 - SWING BEAM MOUNT - W4L06945
1"x5 1/4"x40 7/8" (24x134x1038)
(1)
K1 - GROUND BOARD - W4L06893
5/8"x5 1/4"x79 7/8" (16x134x2028)
(1)
M1 - SAFETY BOARD - W4L06895
5/8"x3 3/8"x40 7/8" (16x86x1038)
(1)
O3 - SAFETY BOARD - W4L06948
5/8"x1 3/8"x40 7/8" (16x34x1038)
(2)
BOLT WH 5/16x2
(9 PLCS)
CENTER T-NUTS
SHOULD BE PLACED
BEFORE MOUNTING
G1 BOARD.
NOTE HOLES.
1" SPACING
1"SPACING
SQ - "A" REVISION TAG - A100314
(1)
H10 - FLOOR RAIL - W4L07317
1"x3 3/8"x42 1/8" (24x86x1070)
(1)
