Backyard Discovery BEACH FRONT - Page 28

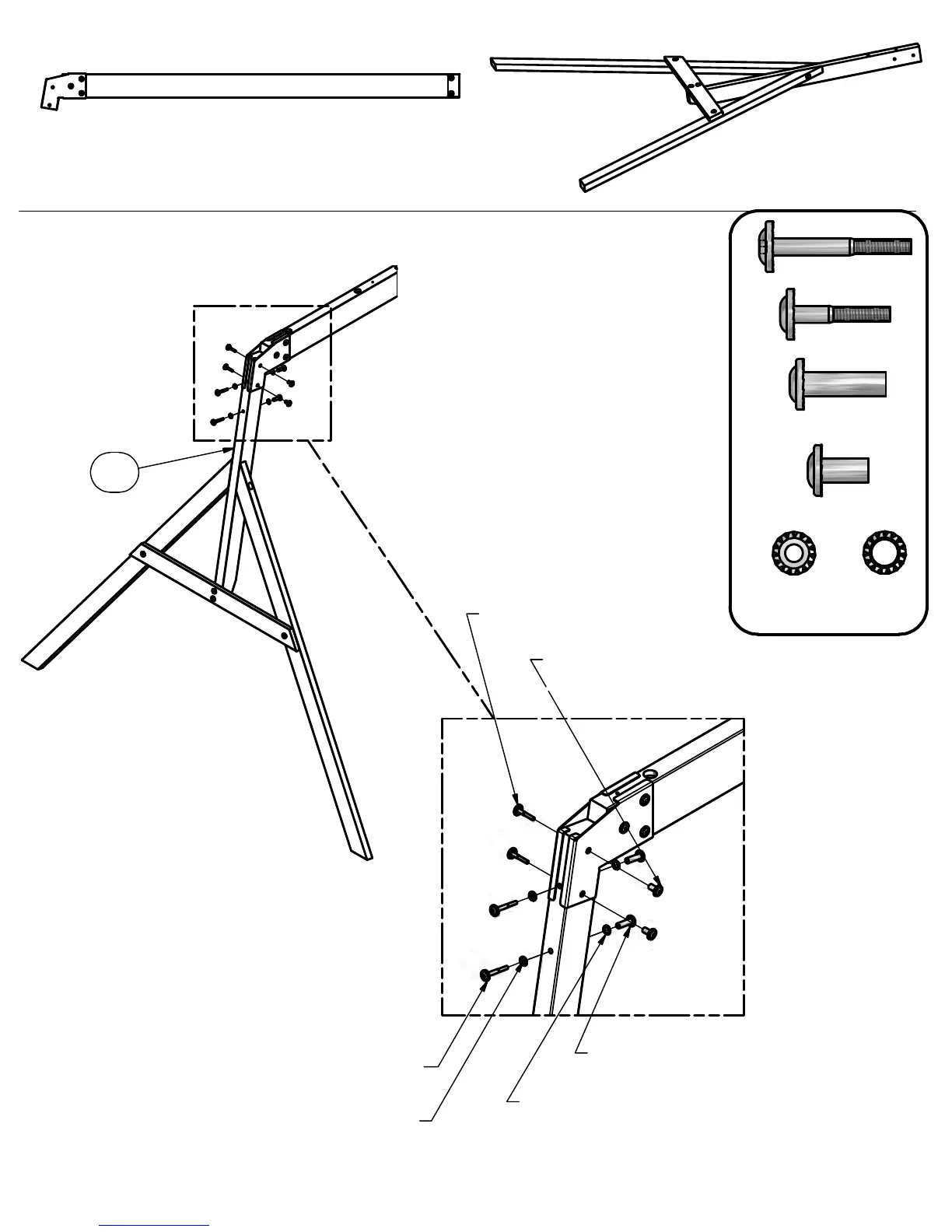

SWING BEAM ASSEMBLY
STEP 3
SWING BEAM BRACKET
(STEP 1)
SWING BEAM END
(STEP 2)
BOLT WH
5/16x2 1/2
(2)
BOLT WH
5
/16x1 3/4
(2)
NUT BARREL
WH 5/16x1 1/2
(2)
WASHER
LOCK EXT
12x19
(2)
NUT BARREL
WH 5/16x7/8
(2)
WASHER
LOCK EXT
8x19
(2)
BOLT WH 5/16x1 3/4
(2 PLCS)
NUT BARREL WH 5/16x7/8
(2 PLCS)
NUT BARREL WH 5/16x1 1/2
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
BOLT WH 5/16x2 1/2
(2 PLCS)
W71
