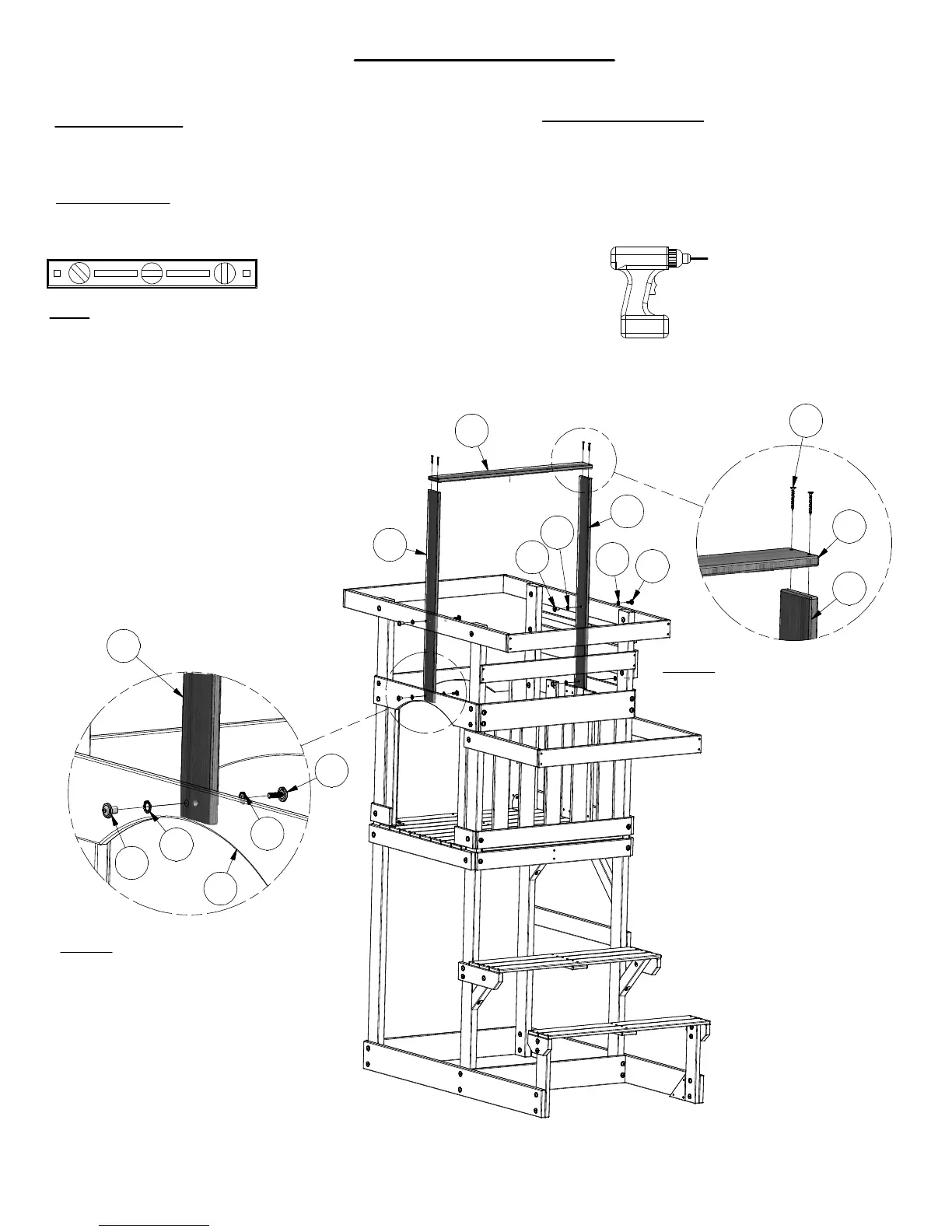

Step 1: Attach 'M1' Tarp Support to
'K3' arched wall rail & 'H1' wall rail
using "Safe-T-Fuse" hardware, as
shown. Repeat step attaching 'M1'
Tarp Support to 'K4' wall rail & 'H1'
wall rail using "Safe-T-Fuse" hardware.
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) M1 - TARP SUPPORT - W101540
• (1) M4 - FLOOR / TARP SUPPORT - W101541
Fort Assembly
Phase 13
Hardware needed:
• (2) B - NUT BARREL WH 5/16x5/8 - H100004
• (2) D - NUT BARREL WH 5/16x7/8 - H100005
• (4) AD - WASHER LOCK EXT12x19 - H100031
• (4) AC - WASHER LOCK EXT8x19 - H100030
• (4) F - BOLT WH 5/16x1 - H100008
• (4) BP - SCREW PFH 8x1-1/2 - H100086
Note: It is vital that the fort
be level before and after
each phase of assembly.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
Step 2: Attach 'M4' Floor / Tarp
Support to 'M1' tarp support using
Screws 'BP', as shown.
BP
M4
M1
F
AC
K3
M1
AD
B
D
AD
AC
F
M4
M1
M1
To Next Page
