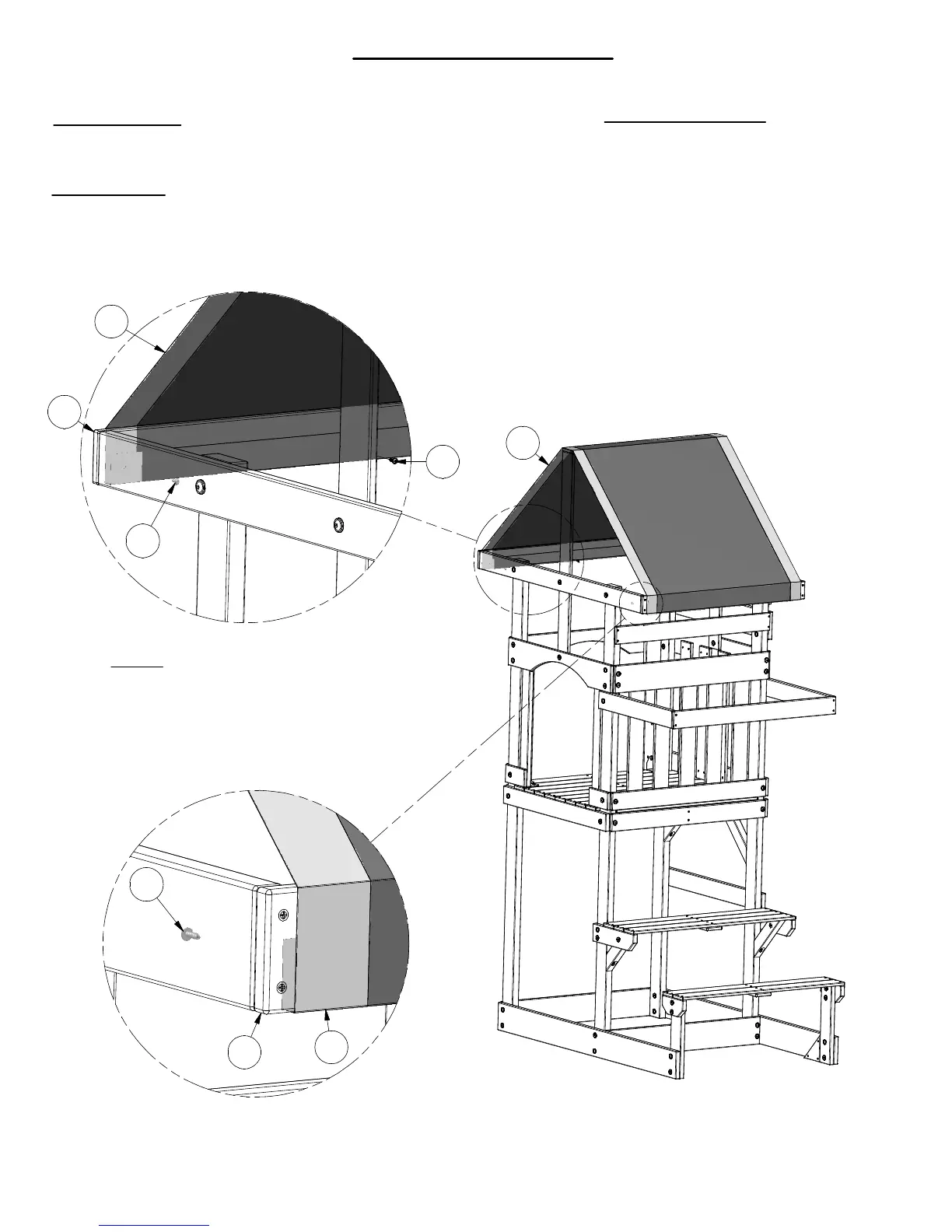

Step 1: Drape 'KC' Tarp over 'M4' floor /
tarp support and 'M3' tarp supports.
Attach one side of tarp to the inside of
'M3' with (3) Screws 'CY'. Pull other side
of tarp tight and attach to the inside of
other 'M3' tarp support using (3) Screws
'CY', as shown.
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (1) KC - ROOF TARP - A100196
Fort Assembly
Phase 14
Hardware needed:
• (6) CY - SCREW PWH 8x5/8 - H100128
KC
M3
KC
KC
M3
CY
CY
CY
