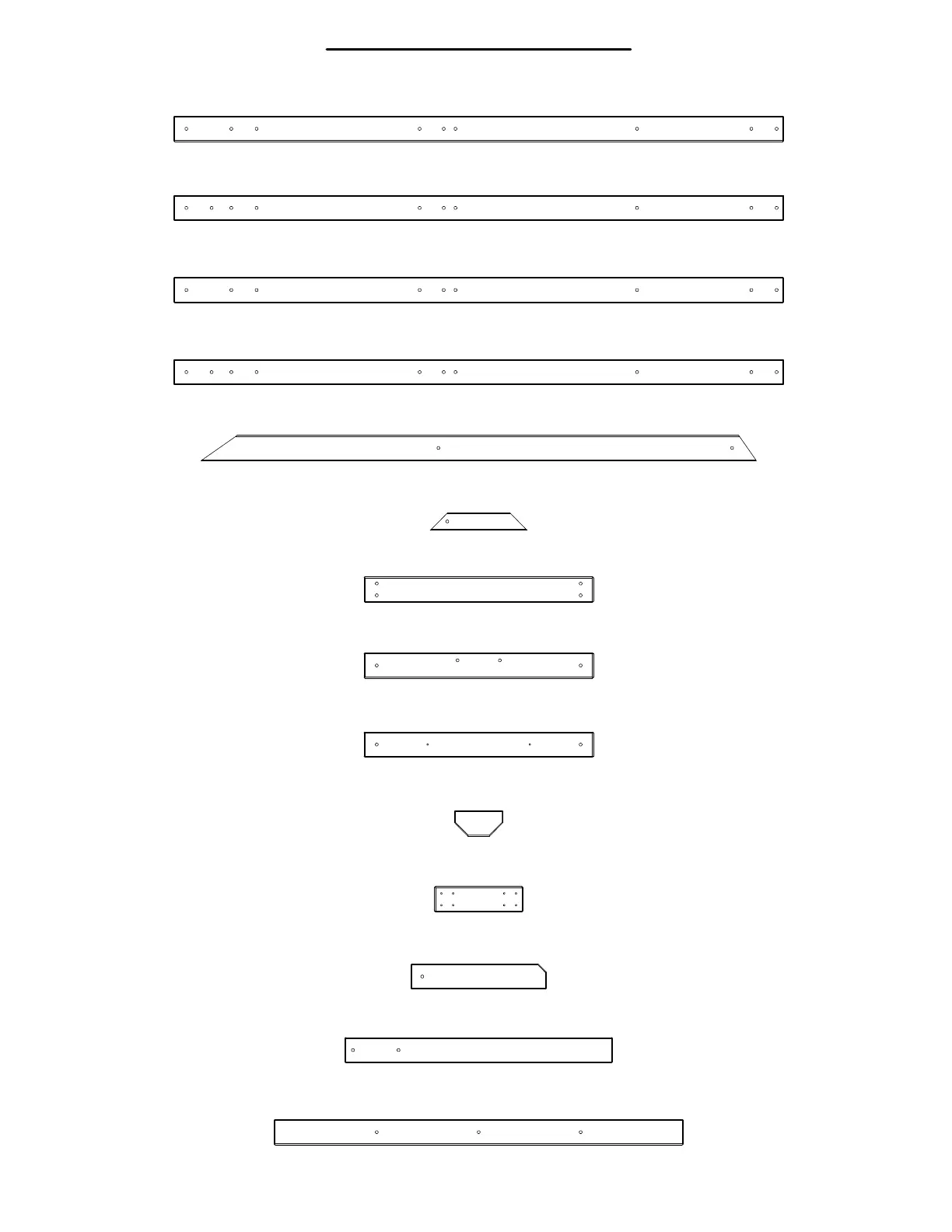

Parts Identification
Wood Components
(NOT TO SCALE)
E1 - UPRIGHT - W103800
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E2 - UPRIGHT - W103807
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E3 - UPRIGHT - W103809
1
3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E4 - UPRIGHT - W103808
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E77 - ANGLE BRACE - W100991
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
F71 - STANDARD ANGLE BRACE - W100689
1 3/8"x2 3/8"x13" (36x60x330)
(4)
H1 - FLOOR RAIL - W103804
1"x3 3/8"x30 3/4" (24x86x780)
(2)
H2 - SWING BEAM MOUNT - W103814
1"
x3 3/8"x30 3/4" (24x86x780)
(1)
H3 - WALL RAIL - W103815
1"x3 3/8"x30 3/4" (24x86x780)
(1)
H7 - VERTICAL TARP SUPPORT - W103819
1"
x3 3/8"x35 7/8" (24x86x910)
(2)
H8 - HORIZONTAL TARP SUPPORT - W103816
1"x3 3/8"x54 3/4" (24x86x1392)
(1)
H4 - BENCH SEAT SUPPORT - W104040
1"
x3 3/8"x6 1/2" (24x86x166)
(2)
H5 - BENCH UPRIGHT - W104041
1"x3 3/8"x11 3/4" (24x86x300)
(2)
H6 - BENCH GROUND BOARD - W104042
1"x3 3/8"x18 1/8" (24x86x460)
(2)
