Parts Identification

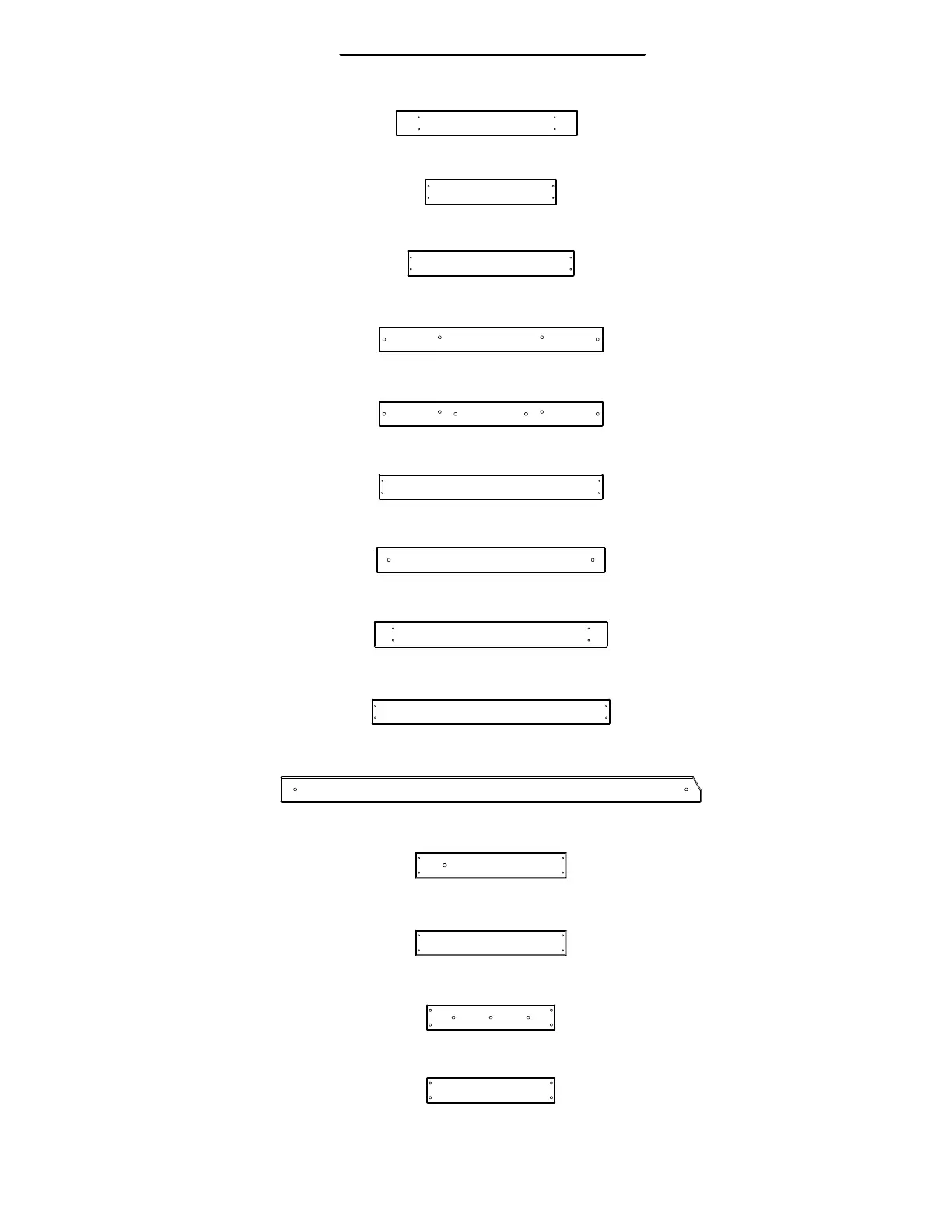

Wood Components
(NOT TO SCALE)
M3 - FLOOR BOARD - W103824
5/8"x3 3/8"x17 5/8" (16x86x448)
(7)
M4 - FLOOR BOARD - W103823
5/
8"x3 3/8"x22 3/8" (16x86x568)
(9)
M5 - FLOOR RAIL - W103805
5/8"x3 3/8"x30" (16x86x762)
(1)
M6 - FLOOR RAIL - W103806
5/8"x3 3/8"x30" (16x86x762)
(1)
M7 - TOP TARP SUPPORT - W103820
5/8"x3 3/8"x30" (16x86x762)
(1)
M8 - WALL RAIL - W103813
5/8"x3 3/8"x30 3/4" (16x86x780)
(3)
M9 - FLOOR BOARD - W103822
5/
8"x3 3/8"x31 1/4" (16x86x794)
(1)
M10 - END TARP SUPPORT - W103817
5/8"x3 3/8"x31 7/8" (16x86x810)
(2)
M11 - ANGLE BRACE - W103826
5/8"x3 3/8"x56 3/8" (16x86x1431)
(2)
M71 - ROCK BOARD - W100022
5/8"x3 3/8"x20 1/4" (16x86x514)
(6)
M72 - ROCK WALL SLAT - W100023
5/8"x3 3/8"x20 1/4" (16x86x514)
(2)
M77 - SLIDE BRACE - W100544
5/
8"x3 3/8"x17 1/4" (16x86x438)
(1)
M78 - CENTER SLIDE BRACE - W100545
5/8"x3 3/8"x17 1/4" (16x86x438)
(2)
M2 - BENCH SEAT - W104043
5/
8"x3 3/8"x24 3/8" (16x86x618)
(2)
