(c) Attach left & right side panels (G & H) to bottom
panel (B) using (4) Truss head screws (AA) with
(4) Lock washers. See Fig.3.
(d) Attach back panel (I) to bottom panel (B) using (7)
Truss head screws (AA) with (7) Lock washers.
Attach Triangle Bracket Left (F1) and Triangle
Bracket right (E1) to both side panels (G & H)
using (8) Truss head screws (BB) with (8) Lock
washers. See Fig.4.
(e) Loosen screw which is attached to cart frame. Re-
attach screw connect cart frame (Z) to both side
panels (G & H) from outside. See Fig.5.

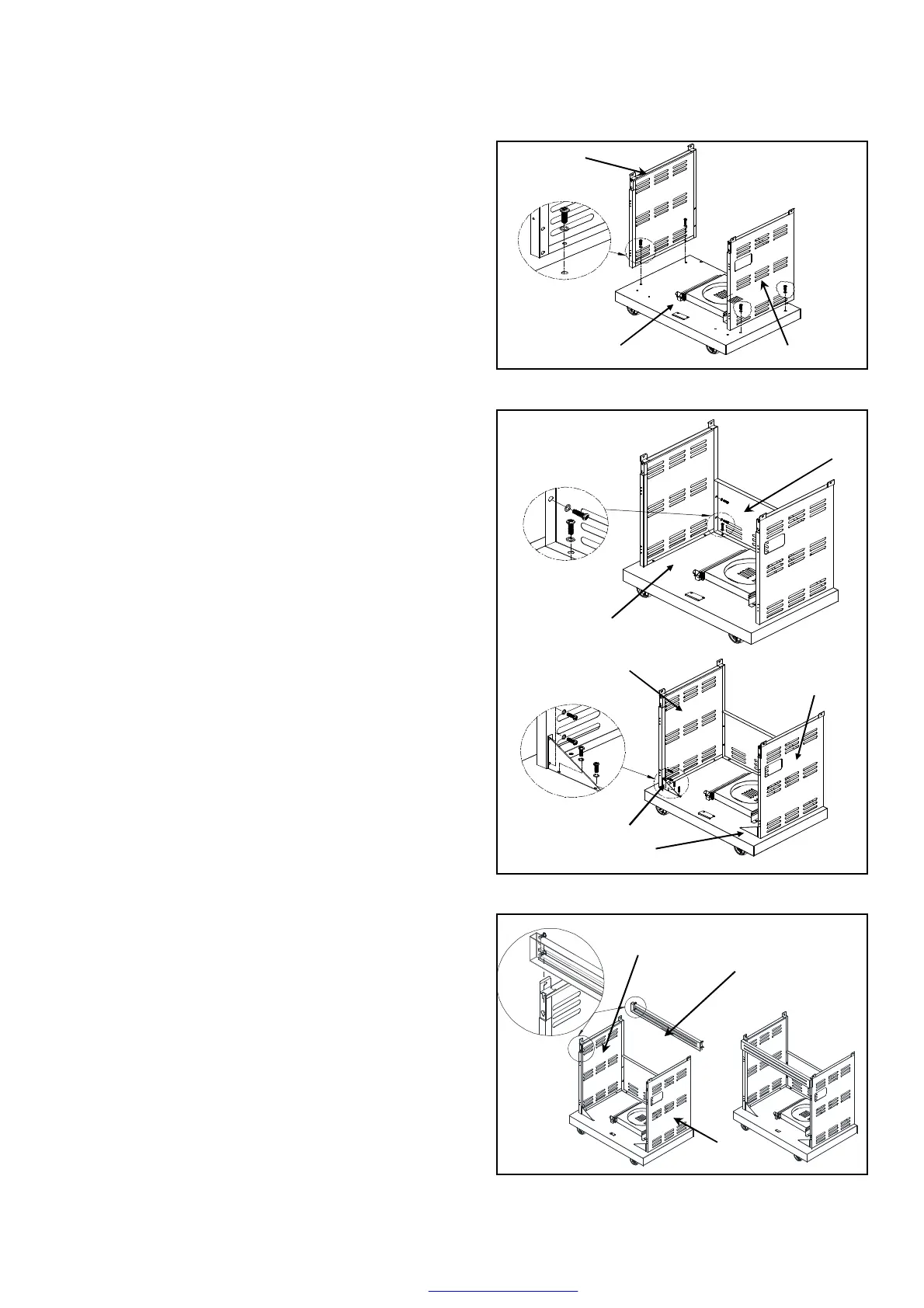

Fig.3
