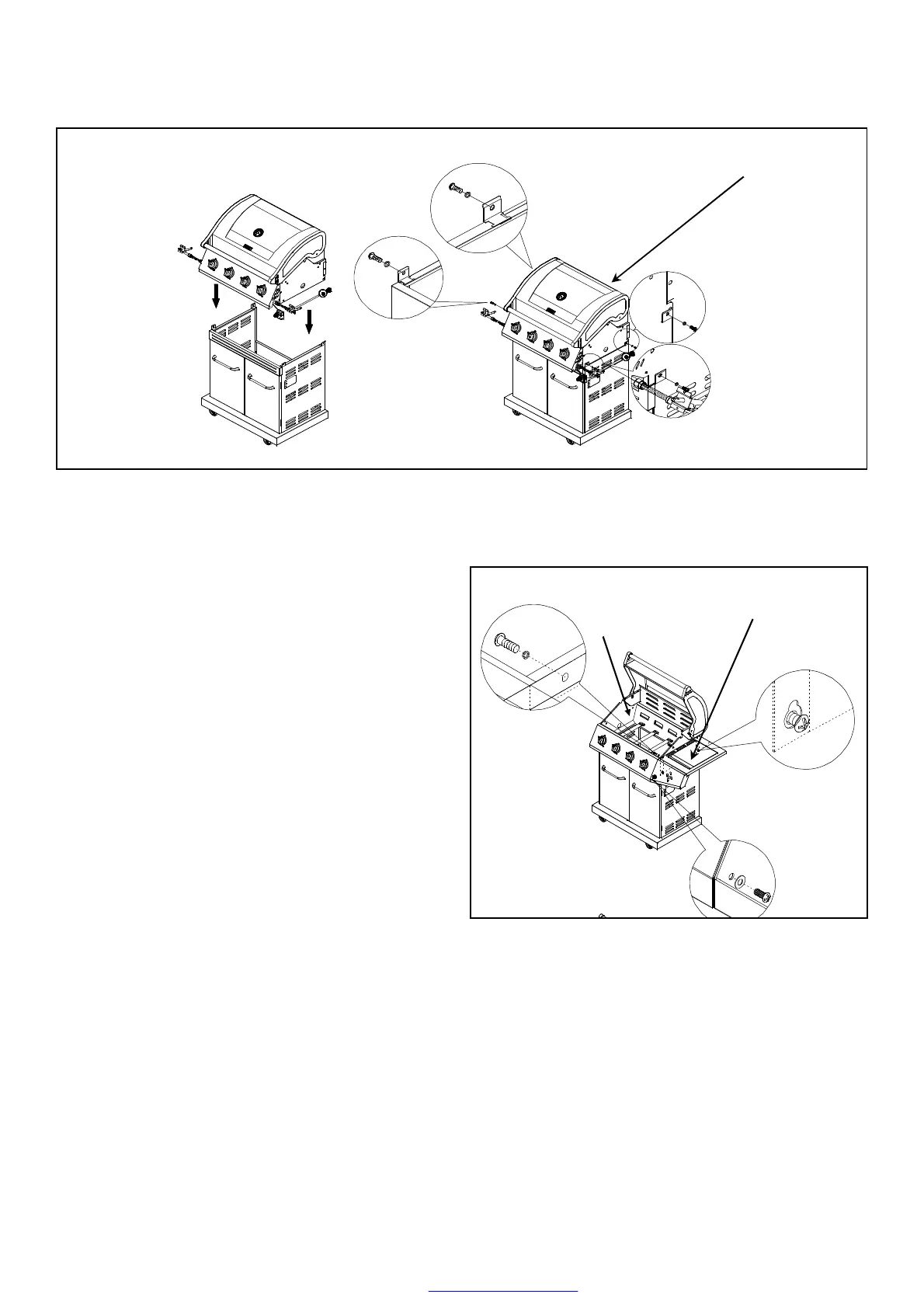

3. Side Burner Assembly
(a) Loosen (2) preinstalled head screws from right
side of Firebox (A) as shown. Do not screw out
fully; leave ¼ extended for shelf assembly.
Through side burner shelf keyholes, hang side
burner shelf (N) on two loosened screws. See
Fig.11.
(b) Using (2) Truss head screws (AA), (2) Flat
washer (DD), attach side burner shelf (N) to
Firebox from inside the firebox. Insert (2) Truss
head screws (BB), (2) Flat washer (EE) to
attach the side burner shelf front panel to the
control panel. Fully tighten the two loosened
screws to secure shelf to firebox.
13
Fig.11
Fig.9
A
Fig.10
N
A
