Fig.24
P
R
S

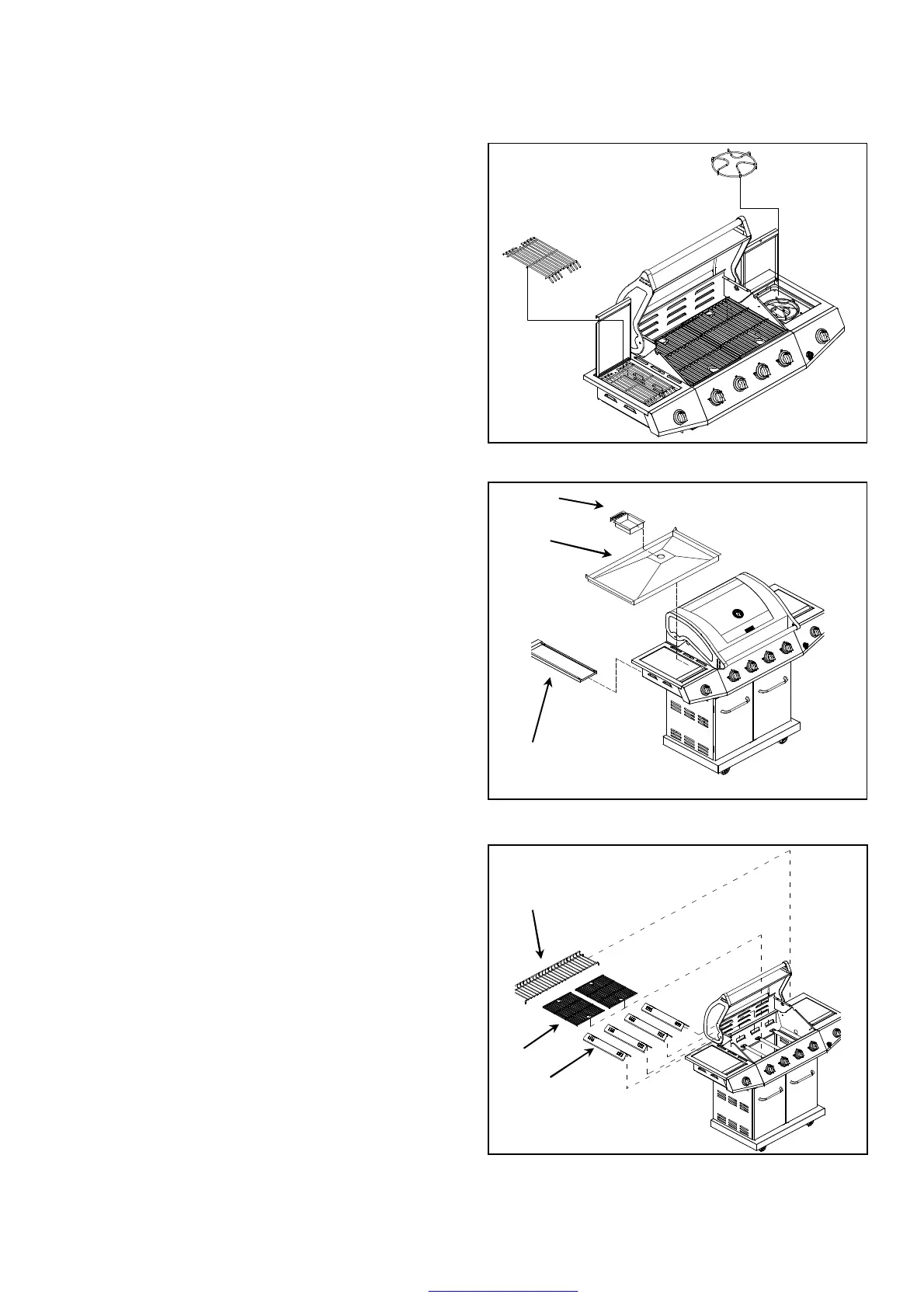

8. Side Burner Grates Assembly
Replace both grates to each side burner.
See Fig.23a.
9. Grease Cup Assembly
From the back, pull out grease trays (W & J),
remove any packaging materials from it, then insert
grease cup (X) into grease tray (W) as shown in
Fig.23b. Push grease trays back into grill.
10. Installing Cooking Components
(a)Place heat diffusers (P) over burners as shown.
Diffuser ends insert into channels on front and back
of firebox. See Fig.24.
(b) Evenly space cooking grids (R) on the ledge
above heat diffusers. See Fig.24.
To obtain Searing marks in cooked meat, be sure to
insert grids so that side with four corner feet faces
down.
(c) Insert legs of warming rack (S) into the holes in the
top of firebox side panels. See Fig.24.
Fig.23b
17
W
X
J
Fig.23a
