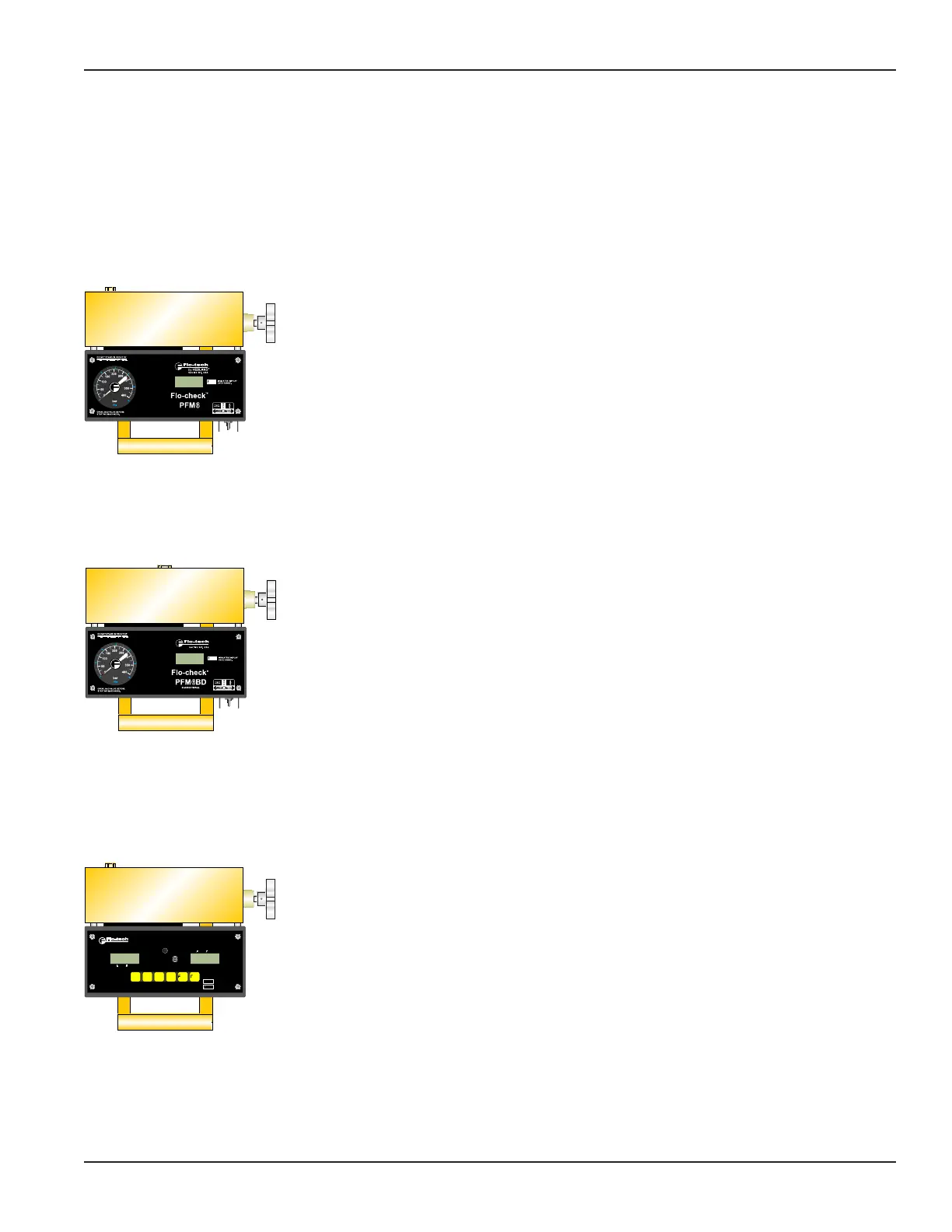

PFM Portable Hydraulic Testers PFM6, PFM6BD, and PFM8
INTRODUCTION
Flo-tech Portable Hydraulic Testers are designed to provide fast diagnostic troubleshooting of hydraulic systems and
components. These compact, self-contained testers feature laboratory accuracy and provide flow, temperature, pressure and
optional power measurements simultaneously from one point.
Flo-tech offers three models, all available in a choice of up to 5 flow ranges and 3 port sizes:
PFM6 Digital Hydraulic Tester
Features:
• Accuracy of ±1% of full flow range
• 3½ digit LCD display for flow and temperature
• Helical tube pressure gauge
• One toggle switch to control power and select flow and temperature
• Loading valve with fingertip control of pressure up to 6000 PSI (414 Bar)
• Platinum resistive temperature sensor
• Internal over pressure burst disc protection
PFM6BD Bi-directional Hydraulic Tester
Features:
• Bi-directional testing
• Low pressure drop
• Accuracy of ±1% of full flow range
• 3½ digit LCD display for flow and temperature
• Helical tube pressure gauge
• One toggle switch to control power and select flow and temperature
• Loading valve with fingertip control of pressure up to 6000 PSI (414 Bar)
• Platinum resistive temperature sensor
• Internal over pressure burst disc protection
PFM8 Digital Hydraulic Tester & Dynamometer
Features:
• Accuracy of ±1% of full flow range
• 3½ digit LCD displays
• Digital pressure readings
• Membrane switch to select flow, temperature, pressure or power
• Front panel switch to select U.S. or metric readings
• Loading valve with fingertip control of pressure up to 6000 PSI (414 Bar)
• Platinum resistive temperature sensor
• Internal over pressure burst disc protection
OFF ON LOW EMP
PRESS
PWR
Flo-check
PFM
TM
OPEN LOAD VALVE BEFORE
OPERATING
DO NOT STAND IN FRONT OF
PRESSURE RELIEF DISC VENT
FLASHING LO-BAT?
REPLACE BATTERIES.
INDICATES DISPLAY
OVER RANGE.
U.S. METRIC
AUTO SHUT-OFF 5 MINUTES
WHEN NO FLOW
- H.P., - kW
PRESSURE
LOW - EMP
GPM, l/min - F°, C°
