PFM Portable Hydraulic Testers PFM6, PFM6BD, and PFM8
DIMENSIONS
C
2
B
A
C
1

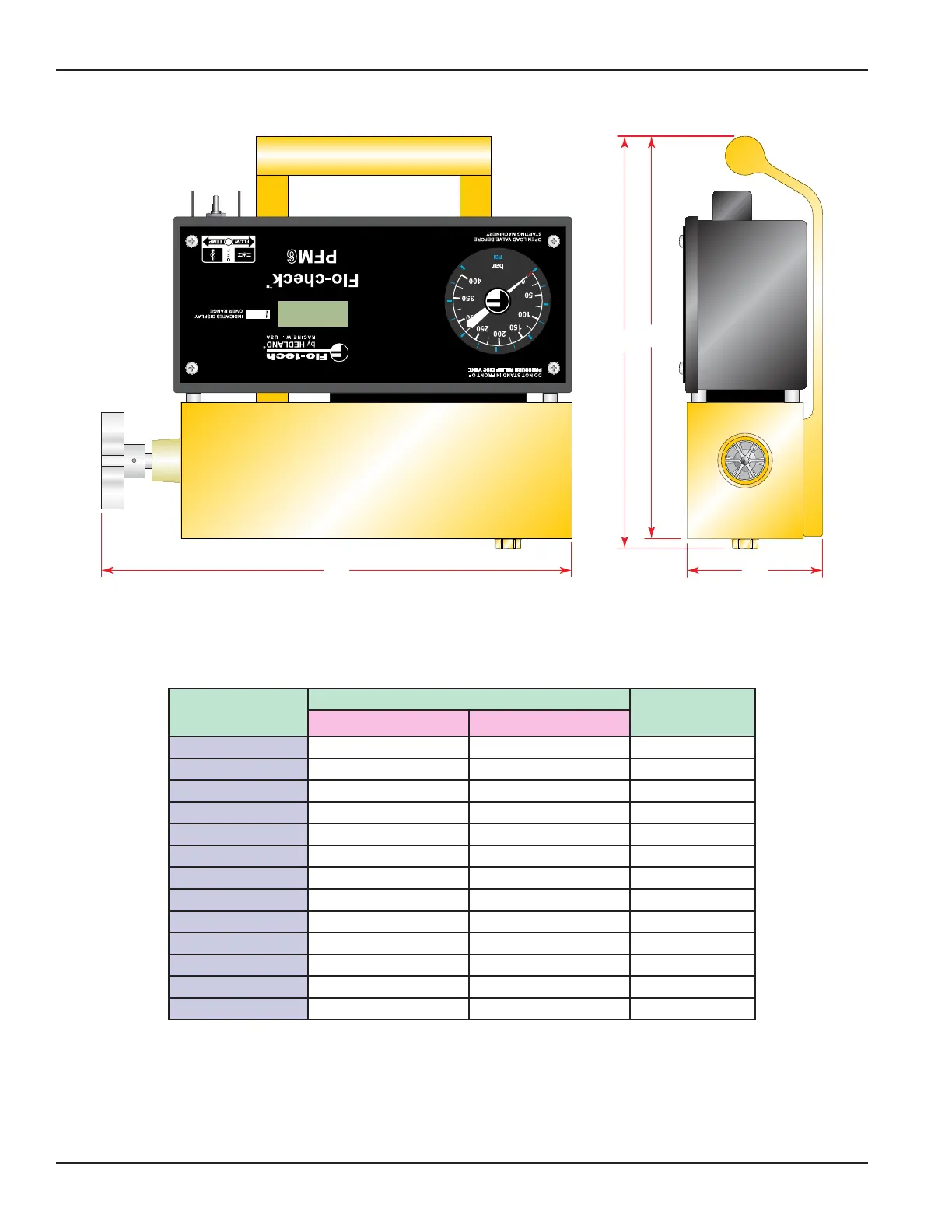

Figure 1: Hydraulic Tester Dimension Illustration
C
1
- PFM6 and PFM8 Series
C
2
- PFM6BD Series
SERIES
DIMENSIONS LENGTH A × DEPTH B × HEIGHT C
WEIGHT LBS KG
INCHES MM
PFM6-15 11.3 × 3.5 × 9.8 287 × 89 × 249 13.85 (6.3)
PFM6-30 11.3 × 3.5 × 9.8 287 × 89 × 249 13.85 (6.3)
PFM6-60 11.5 × 3.5 × 9.8 292 × 89 × 249 16.50 (7.5)
PFM6-85 11.5 × 3.5 × 9.8 292 × 89 × 249 16.50 (7.5)
PFM6-200 12.3 × 4.0 × 10.3 311 × 101 × 262 20.00 (9.1)
PFM6BD-60 11.3 × 3.5 × 10.1 287 × 89 × 256 16.50 (7.5)
PFM6BD-85 11.3 × 3.5 × 10.1 287 × 89 × 256 16.50 (7.5)
PFM6BD-200 11.8 × 4.0 × 10.6 300 × 101 × 268 20.00 (9.1)
PFM8-15 11.3 × 3.5 × 9.8 287 × 89 × 249 13.85 (6.3)
PFM8-30 11.3 × 3.5 × 9.8 287 × 89 × 249 13.85 (6.3)
PFM8-60 11.5 × 3.5 × 9.8 292 × 89 × 249 16.50 (7.5)
PFM8-85 11.5 × 3.5 × 9.8 292 × 89 × 249 16.50 (7.5)
PFM8-200 12.3 × 4.0 × 10.3 11 × 101 × 262 20.00 (9.1)
Table3: Dimensions
