Badger Meter HR-E LCD User Manual

Product Overview
PRODUCT OVERVIEW
LCD Display
HR-LCD encoders have a nine-digit Liquid Crystal Display (LCD) to show consumption, flow and alarm information.
There is no need to activate the display. The display automatically toggles between consumption (segmented leak detector in
this mode), rate of flow and meter model.
OTE:N Devices are shipped in storage mode so that a meter status alarm is not triggered. In storage mode, the meter model
screen is displayed.
Multiplier Value
Depending on the meter model, size and unit of measure, a multiplier value may also be shown. Multiply the displayed value
by the multiplier value to calculate the reading to the nearest gallon, cubic foot, or cubic meter.
Example: 123456 (displayed value) x 10 (multiplier value) = 1234560
Extended Visual
Reading Resolution
Typical Billing
Segments
Status
Indicators
IR Programming
Port
00/00
4-Digit
Date Code
E LCD
HR
Multiplier Value
(x10, x100, x1000, x10,000)
In 6-digit mode, the
last digit is a dashed
line that becomes a
ow nder

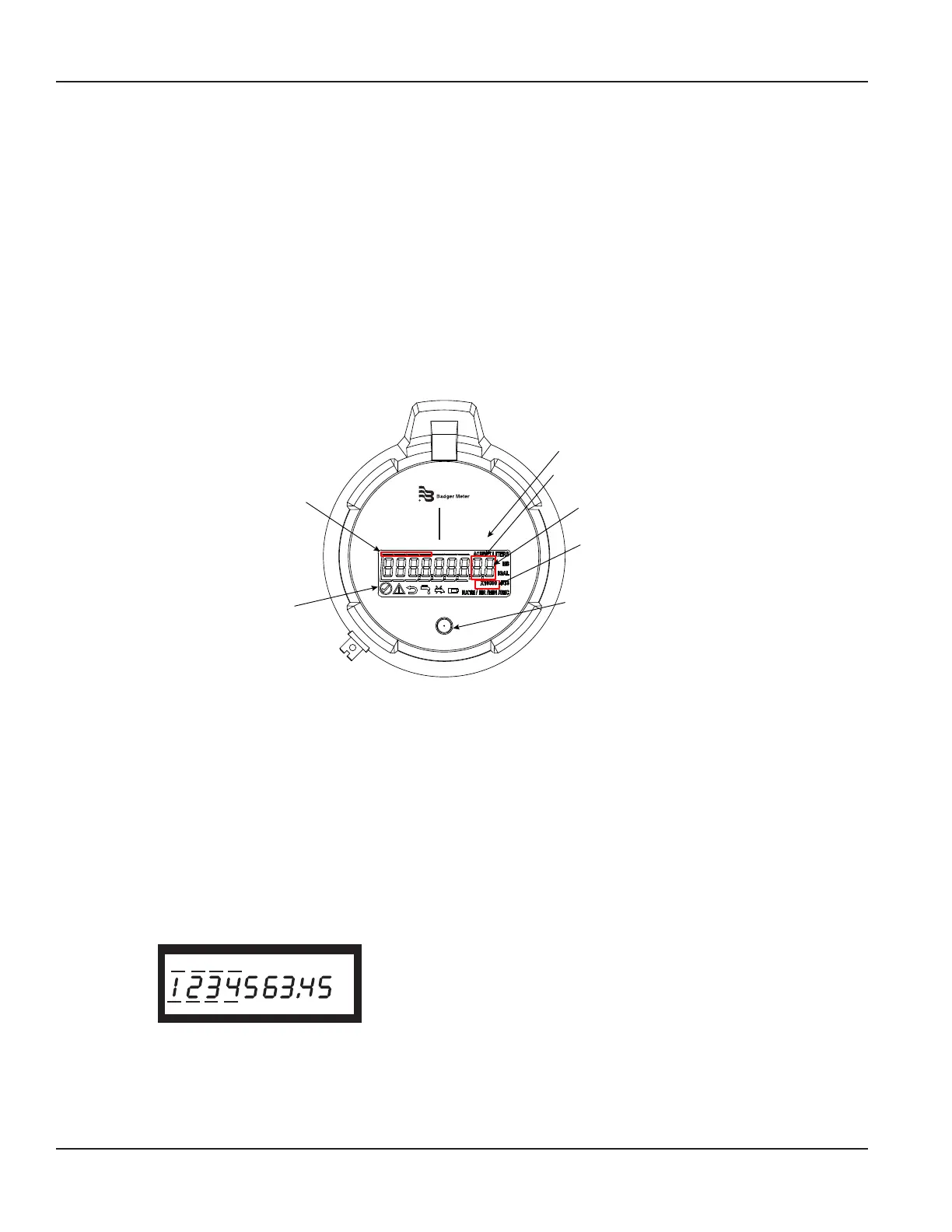

Figure 1: HR-E LCD encoder face
Visual Display
Units of Measure
The units of measure are factory-programmed and user-programmable. Options include U.S. gallons, Imperial gallons, cubic
feet, cubic meters and liters.
9-Digit Totalization
The consumption display includes all nine digits and a decimal point (based on meter model, size and unit of measure). The
displayed value is the sum of the forward flow minus any reverse flow. This screen displays for 45 seconds.
Model 25 Disc Series Meter Calibrated in Gallons
4
GAL
Page 4 April 2019LCD-UM-01482-EN-07
