Register output specifications & wiring
October 2019 AC_ILR_BA_02_1632 Page 13
5.2 Pulse and analog output (model ILR750 and 750T)
Register wiring
External DC+: Yellow
External ground: Brown
Pulse output: White
Analog output: Green
DC input: 8 to 24 VDC; 20 to 40mA
Outputs:
• Analog 4 to 20mA output; external load of 0 ohms to 250 ohms; flow rate is linear scaled between 4mA minimum and
20mA maximum set points.
• Pulse output with internal pull-up resistor (1 KΩ); optional open collector output when the jumper is removed. Please
open the battery compartment. The jumper may only be removed if no external voltage is present. The output is scalable
in pulses per liter or pulses per gallon.

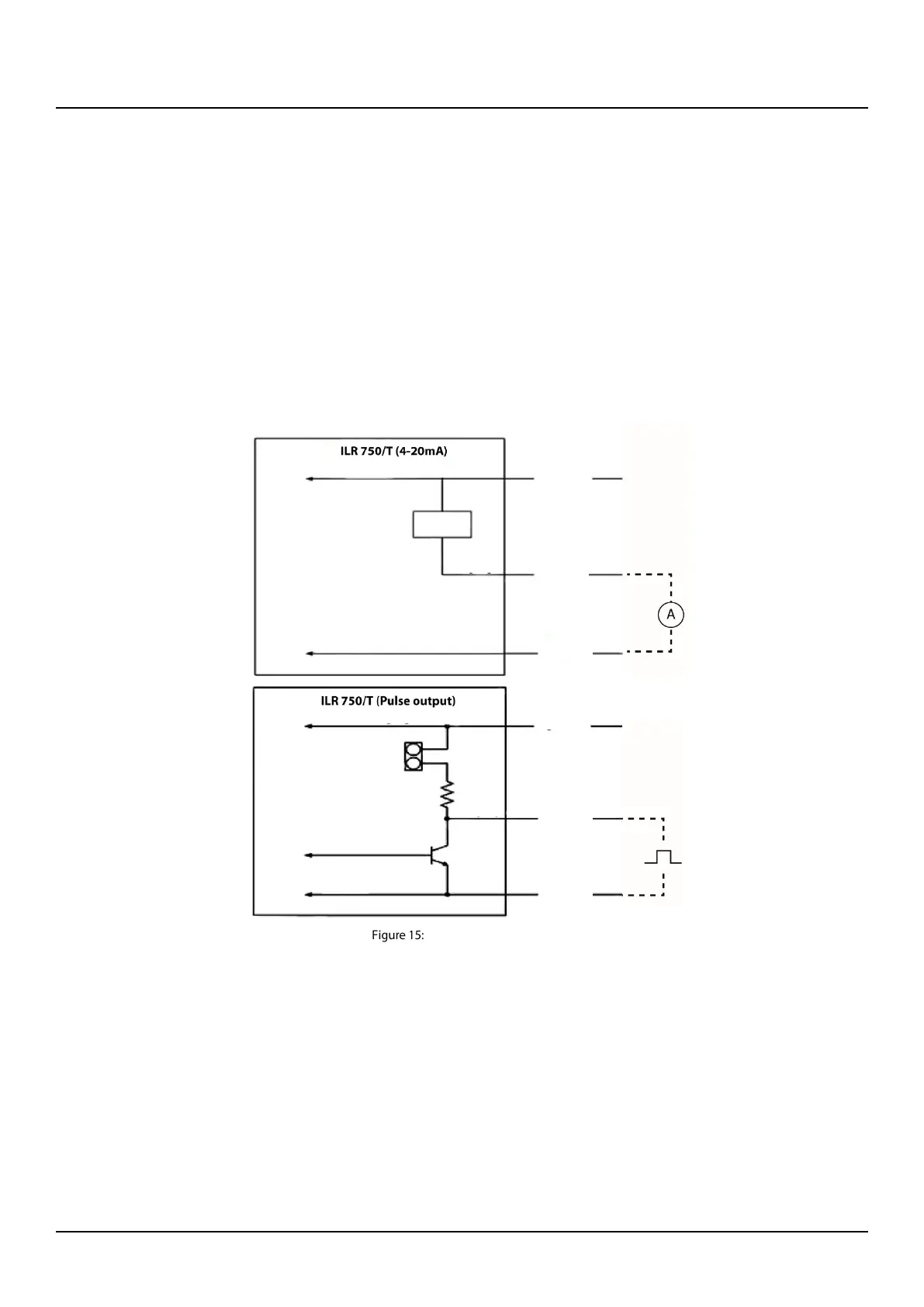

ILR 750, 750T wiring
8-24V DC input
8-24V DC input
Yellow
Green
Brown
Yellow
White
Brown
Ground
Ground
Transmitter
jumper
output
outputv
