Operating Manual BaehrTec S2000
English– V101 – Status 07/2015 Page 15/52
4 Description of device
4.1 Description control device
4.1.1 Front view

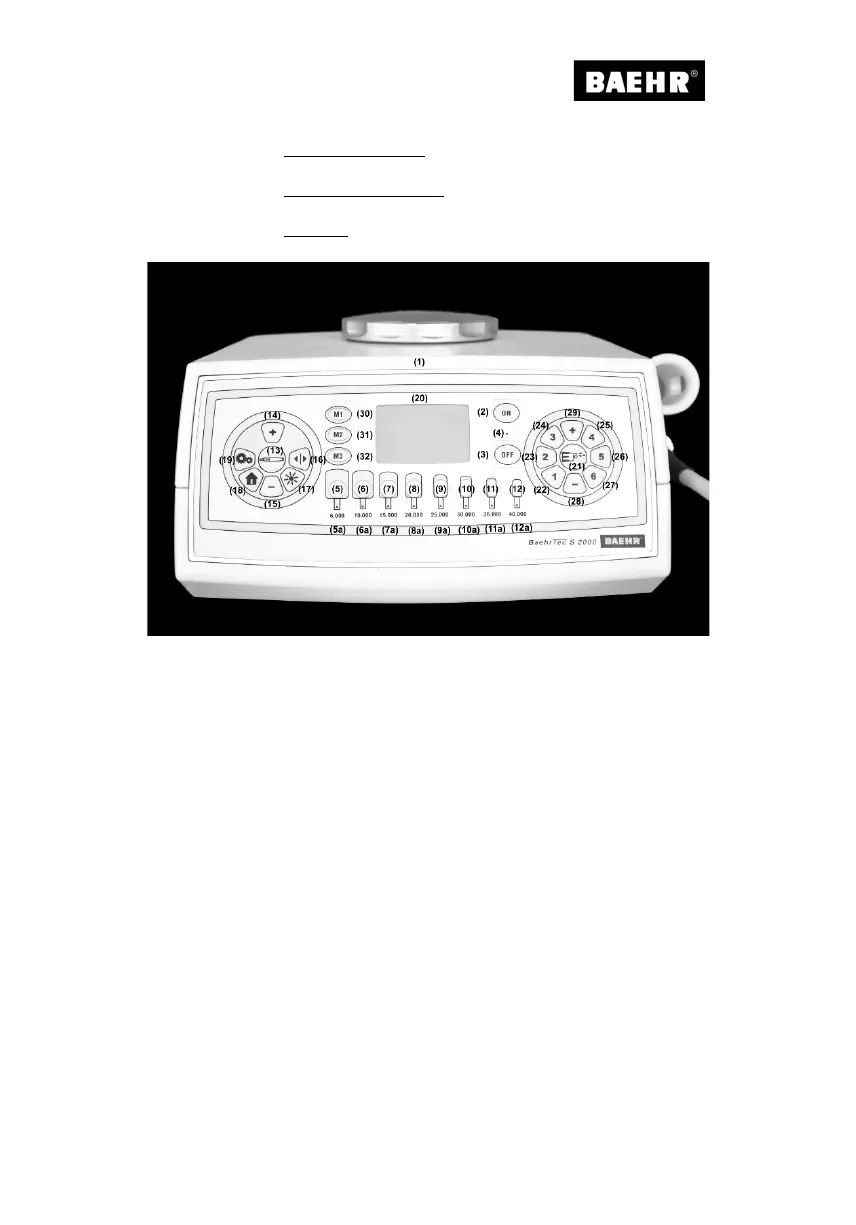

Fig. 4
(1) Controller housing
(2) - (3) Main switch "ON" and "OFF" with respective LED (4)
(5) – (12) Push buttons for instrument speeds (6,000 – 40,000 rpm) with respective
LEDs (5a) – (12a)
(13) Push button to switch handpiece motor on and off
Push buttons handpiece speed: (14) + and (15) - (1,000 rpm)
(16) Push button for instrument direction right/left
(17) Push button for light on handpiece
(18) Push button "Home"
(19) Push button" Options Menu"
(20) Colour display
(21) Push button for standby spray function
(22) - (27) Push buttons "Spray step" (Steps 1-6)
(28) - (29) Push buttons "Spray step adjustments + / - "
(30) - (32) Push buttons "Memory"
