Operating Manual BaehrTec S2000
English– V101 – Status 07/2015 Page 17/52

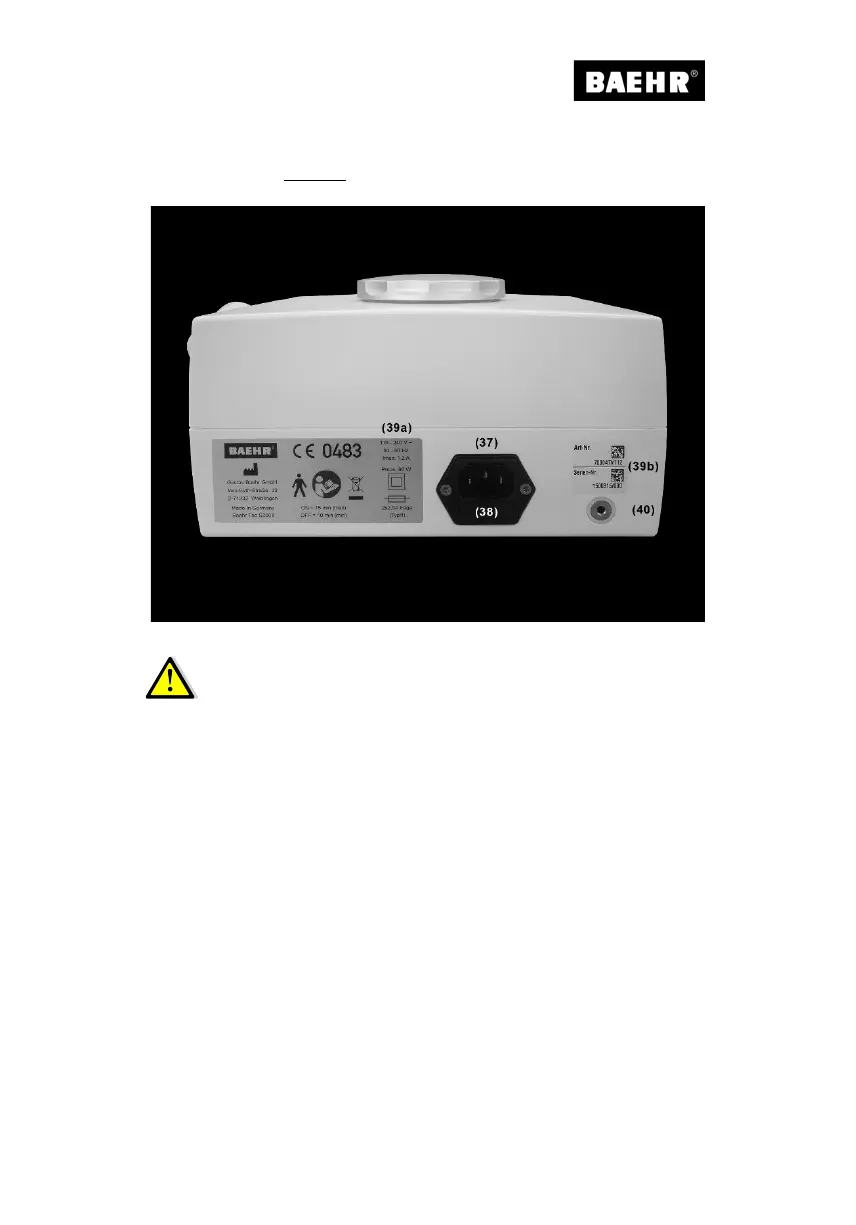

4.1.3 Rear view
Fig. 6
When working from the case, we recommend removing the storage tray
from the case in order that the heat created by the device can escape from
the case and to avoid potential head build-up.
(37) Non-heating device connector
Only connect the connection cable provided or one approved by the manufacturer.
(38) Fuse clip
For fine fuses 2x 2 A inert Type H)
(39a) Nameplate
(39b) Series No. label
(40) Connection inlet for foot pedal
