Operating Manual BaehrTec S2000
English– V101 – Status 07/2015 Page 47/52
5.10.1 Change fuse
The fine fuses protect your device from damage caused by two high
currents.
Attention only there fuses may be used with the device S2000:
2x fine fuses 2A inert (Type H)

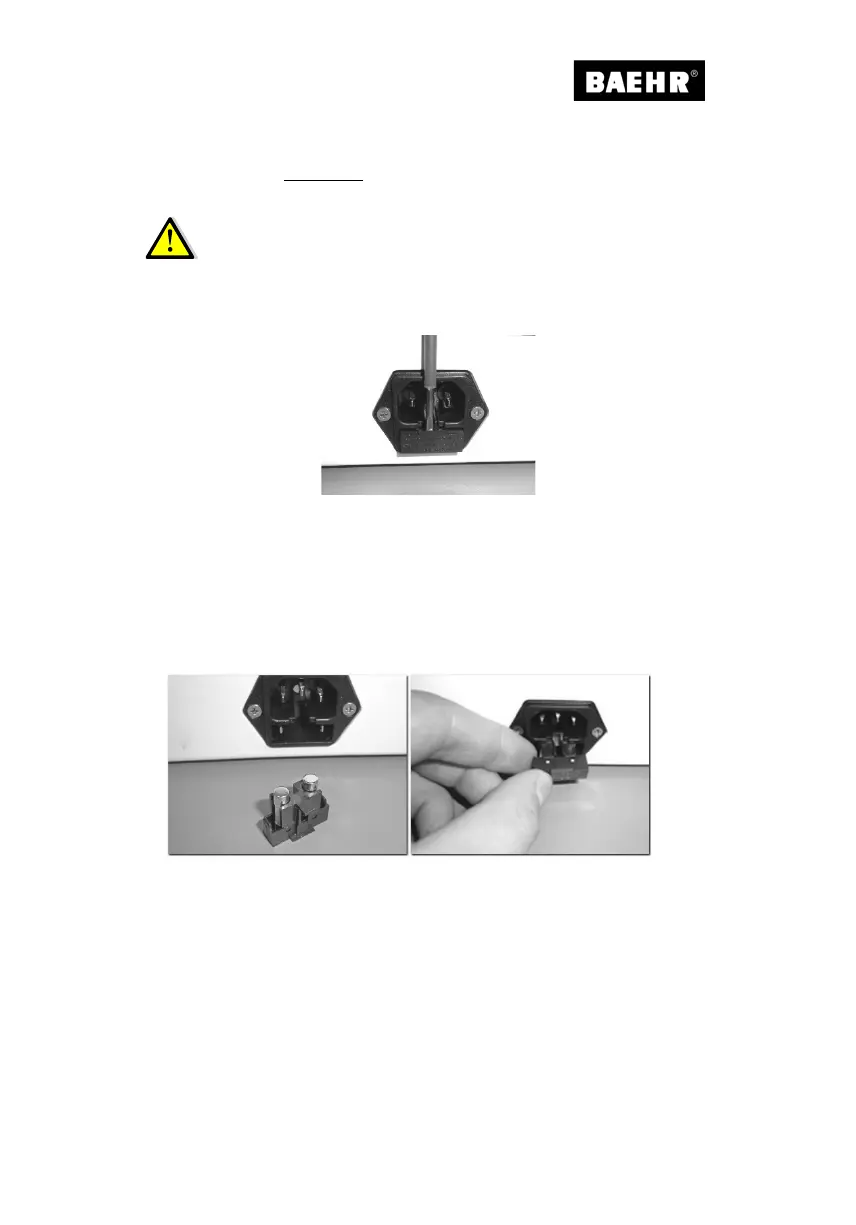

Switch off your device at the main switch and disconnect the device from the mains. Use a
screwdriver to open the fuse compartment on the device socket.
Fig. 26
Replace the microfuses in the compartment.
Now push the compartment back into the device socket.
Make sure that the compartment snaps into place in the device socket.
Reconnect the power cable to the controller.
If your device still does not work, please send it to us for service.
