BAFANG DP E12.UART User Manual

2
DISPLAY MANUAL DP E12.UART
INTRODUCTION
• Name: Intelligent display
• Model: DP E12.UART
• Scope: EN15194 electrically power assis-
tance cycle

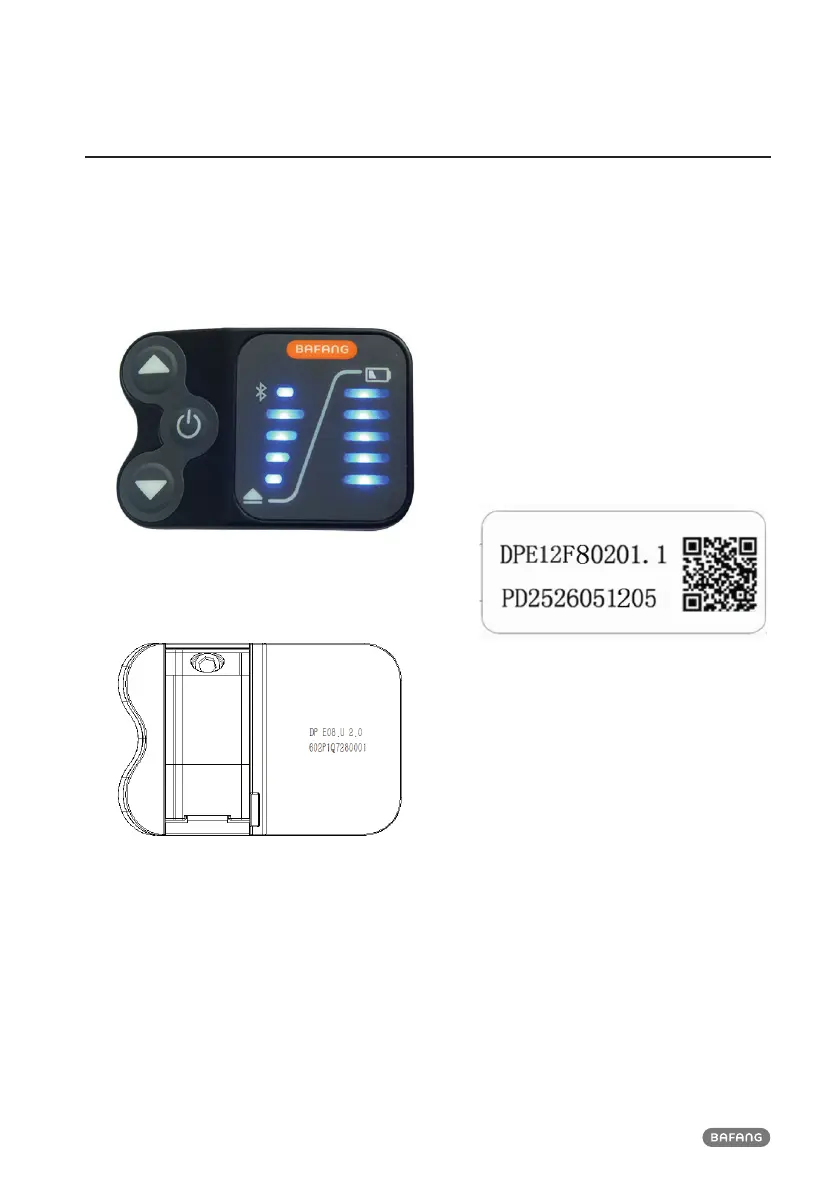

• Appearance:
• Numbering on the back of the display
Numbers are divided into two lines (as
shown in the figure):
A. Up row number (as below)
DP E12.U 2.0
① DP E12.U : BAFANG display model
② 2.0: hardware version number
B. Down row number (as below)
602F8Q7280001
① 602: Wire length and connector model
850 M5.2
② F8: number of test device
③ Q7280001: Production date is
July 28th,2016; SN is 0001
• Display P type wire label number rule
Number on the middle of P type label, num-
ber is divided into up row and down row
and QR code is at right side (as shown in the
below figure)
Content of QR code:
DPE12F80201.1
PD2526051205
DP E12.U 2.0
602F8Q7280001
The first line:
DPE12F80201.1 - Software version
The second line:
PD2526051205 - Parameter code
The last two lines:
DP E12.U 2.0 / 602F8Q7280001 - SN

BAFANG DP E12.UART Specifications

General

Brand	BAFANG
Model	DP E12.UART
Category	Monitor
Language	English
