101
Chapter 4 CARAVAN EQUIPMENT

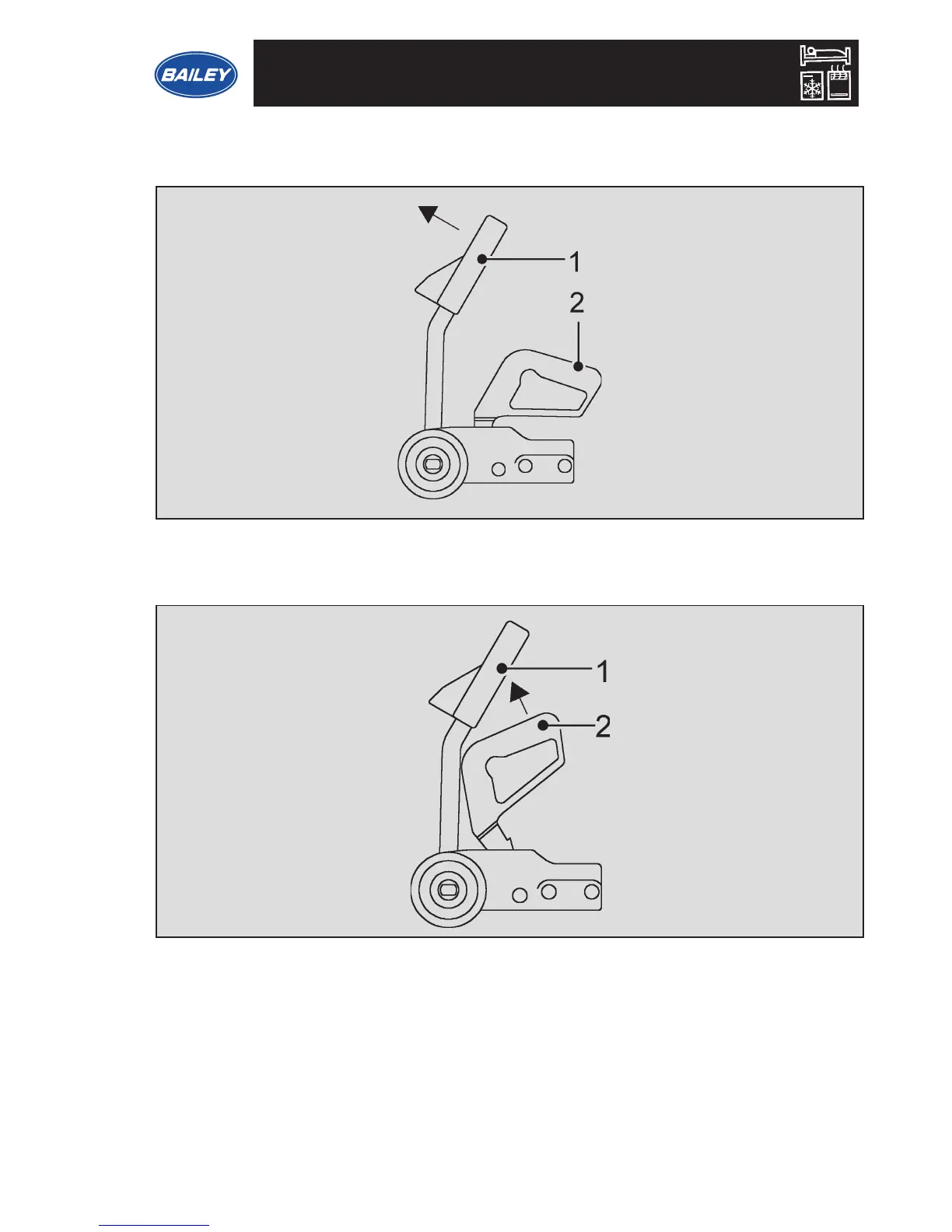

Then pull the coupling handle up and push it forward in the direction of
the arrow.
The hitch can then be lowered onto the vehicle tow ball by unwinding
the jockey wheel.
Put the opened coupling on the tow-ball of the towing vehicle and undo
the coupling handle (2). It should now slide back into the initial position
THE ALKO CARAVAN CHASSIS (continued)
