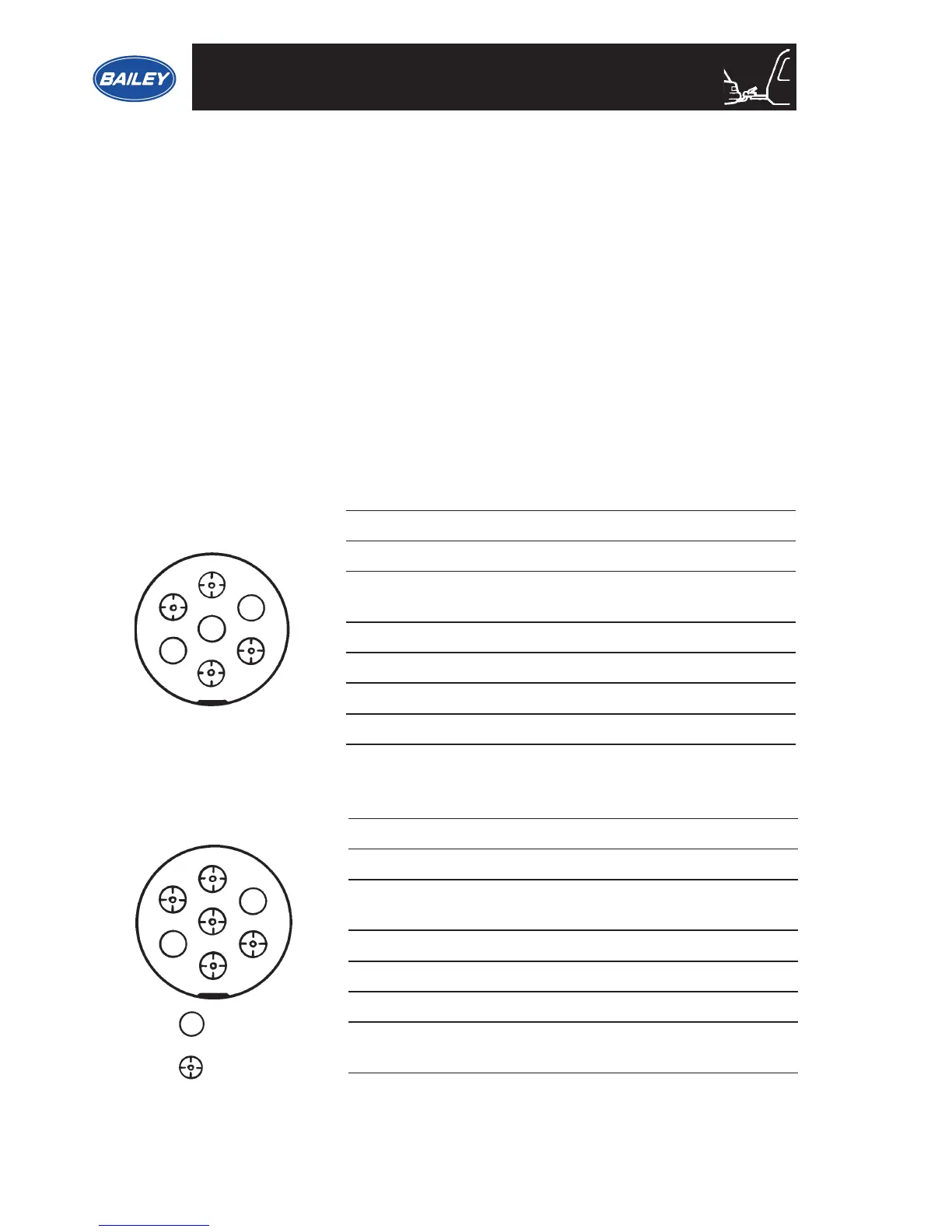

Bailey 2002 Series - 12 N (Black) Plug; 12 S (Grey) Plug

20
Chapter 2 CARAVAN & TOW VEHICLE
TERMINAL COLOUR FUNCTION
1 YELLOW L/H INDICATOR
2 BLUE REAR FOG LAMP
3 WHITE COMMON RETURN
(EARTH)
4 GREEN R/H INDICATOR
5 BROWN R/H SIDE TAIL
6 RED STOP LAMP
7 BLACK L/H SIDE TAIL
12N (BLACK)
1
6
7
53
2
4
12S (GREY)
TERMINAL COLOUR FUNCTION
1 YELLOW REVERSING LIGHT
2 BLUE NO CONNECTION
3 WHITE COMMON RETURN
(EXCEPT FRIDGE)
4 GREEN INTERIOR
5 BROWN NO CONNECTION
6 RED FRIDGE
7 BLACK RETURN FOR FRIDGE
ONLY
1
6
7
3
2
4
5
TUBES
PINS
Towing vehicles with the 12N &12S plugs wired to accept caravans of
any make or model manufactured prior to model year 1999 may need
their wiring configuration altered.
If the tow car has only a single 13-pin socket, an adapter lead will be
required to fit the caravan.
