Bailey 2002 Series - 230 Volt and 12 Volt Primary Circuit Diagram - Pageant

139
Chapter 6 TECHNICAL INFORMATION

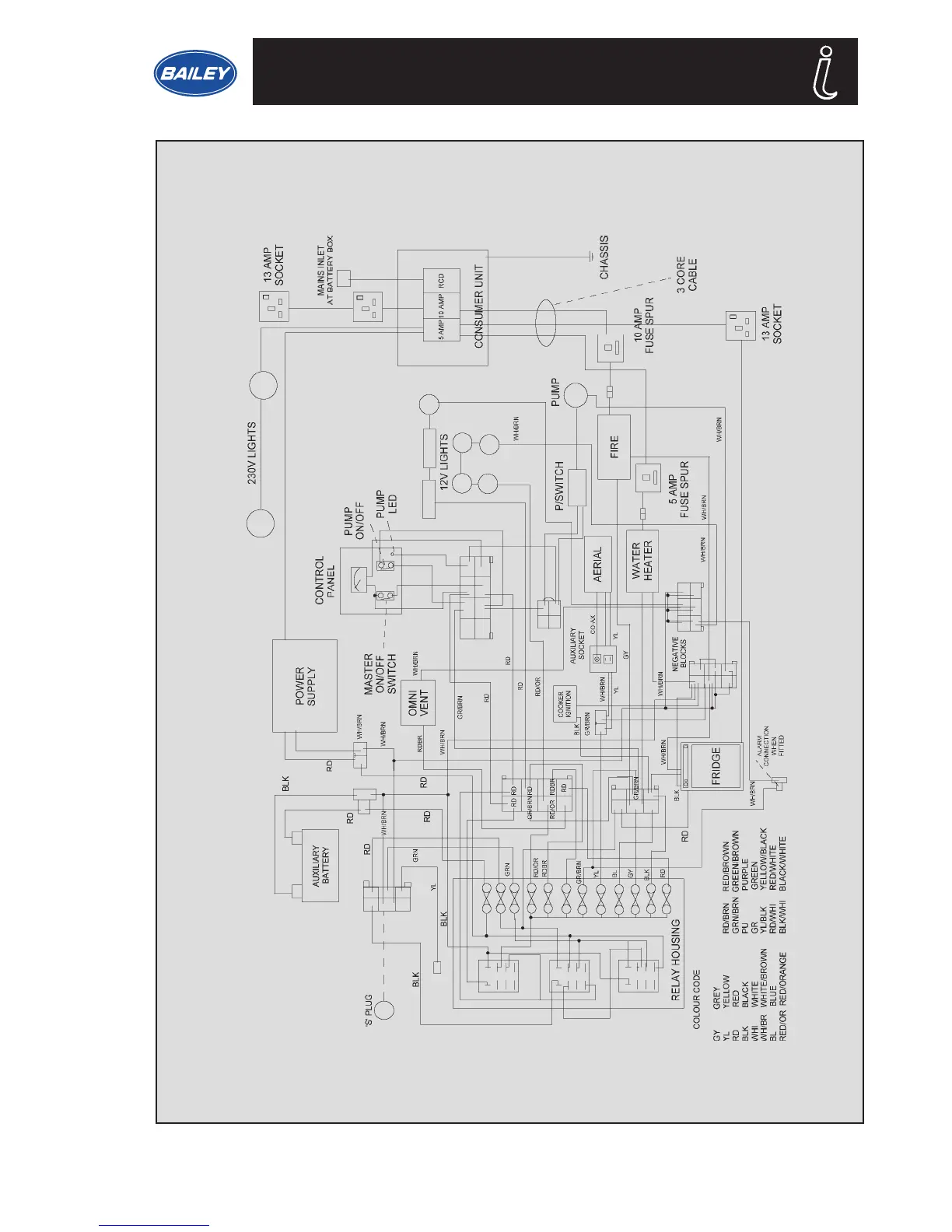

230 VOLT & 12 VOLT PRIMARY CIRCUIT DIAGRAM - PAGEANT
Required car wiring for 12S (Grey) 7 pin socket
Note: When the 12S plug is connected to the towcar and ignition switched on only the fridge and caravan battery charge circuits will
be
activated. With the car ignition switched off the permanent live supply from the car can be utilised.
