31
Chapter 3 CARAVAN SERVICE SYSTEMS
THE WATER SYSTEM (continued)
The capacity of the inboard water tank is approximately 42 litres (9.2
gallons)
Always disconnect the external pump plug once filling operation is
completed.

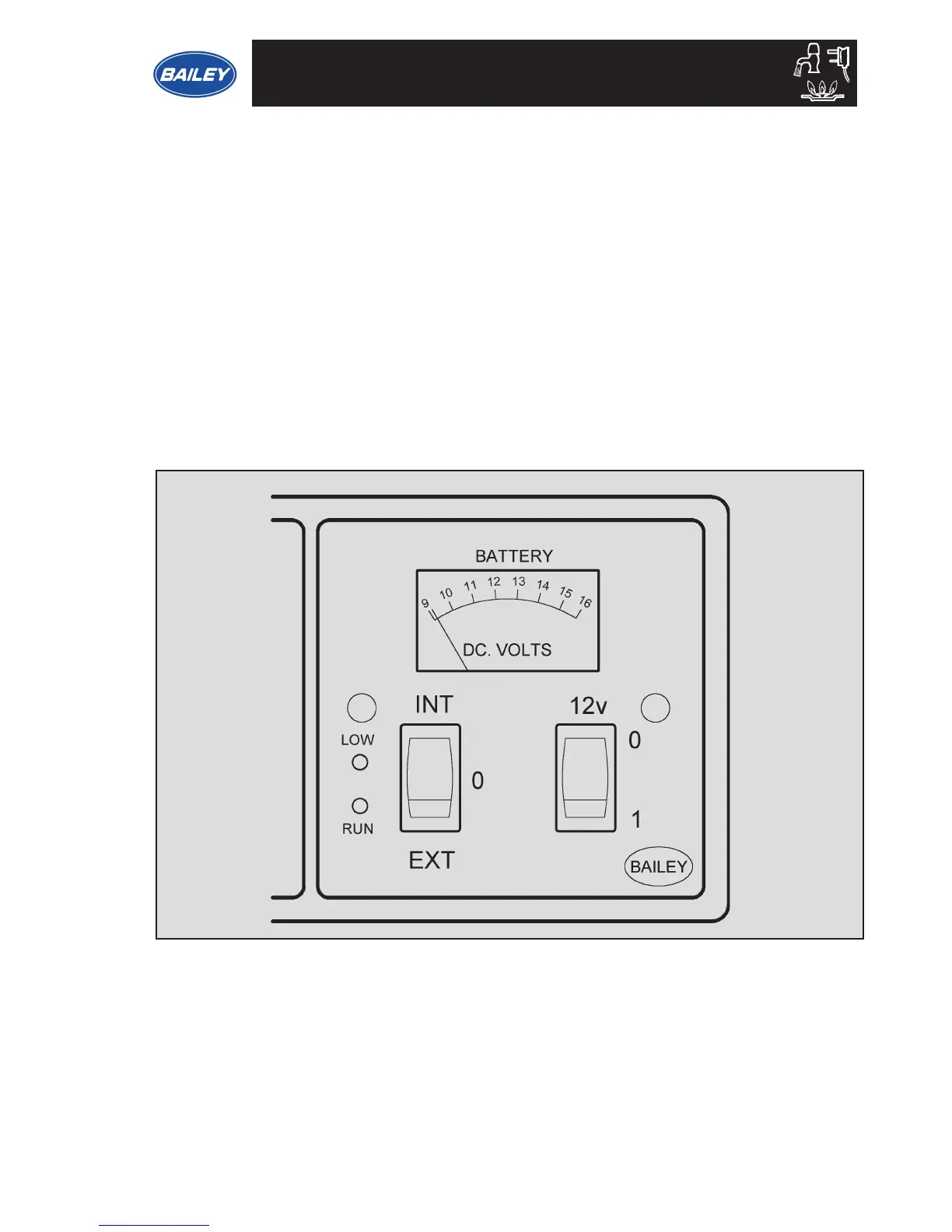

Water can now be obtained from the in-board tank by switching pump
switch on the control panel to INT position and opening the appropriate
tap.
An LED located on the main control panel will flash on and off when the
onboard tank water level falls to approximately 2 gallons.
Always ensure pumps are in water, dry running may cause damage.
Always ensure that the in board water tank is empty when towing.
