Removal & Fitment of Seat
13
Removal of Seat
Remove ‘Side Cover’ RH.
Pull the ‘Seat Release Cable’ (A) to release
seat lock.
Keeping cable pulled, lift the seat from
rear end and slide it towards tail lamp to
remove it.
Fitment of Seat
Match & insert the bracket ('1' of Fig. 'B')
of seat with slot ('2' of Fig. 'B') provided
below fuel tank rear mounting on chassis.
Push seat towards fuel tank and align lock
rod ('3’ of Fig.'C') & seat lock ('4' of Fig.
‘C').
Then press the seat in middle from top to
lock it.

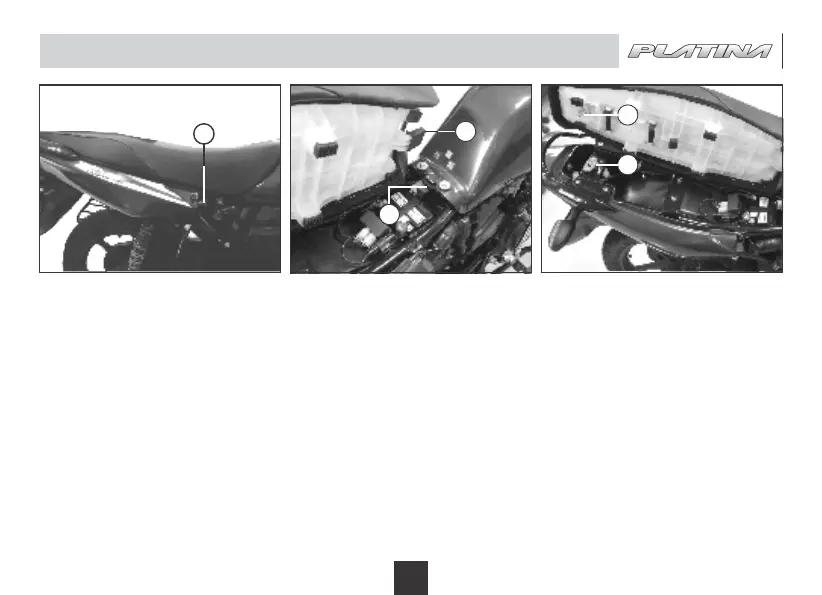

Fig. A
A
Fig. C
3
4
Fig. B
