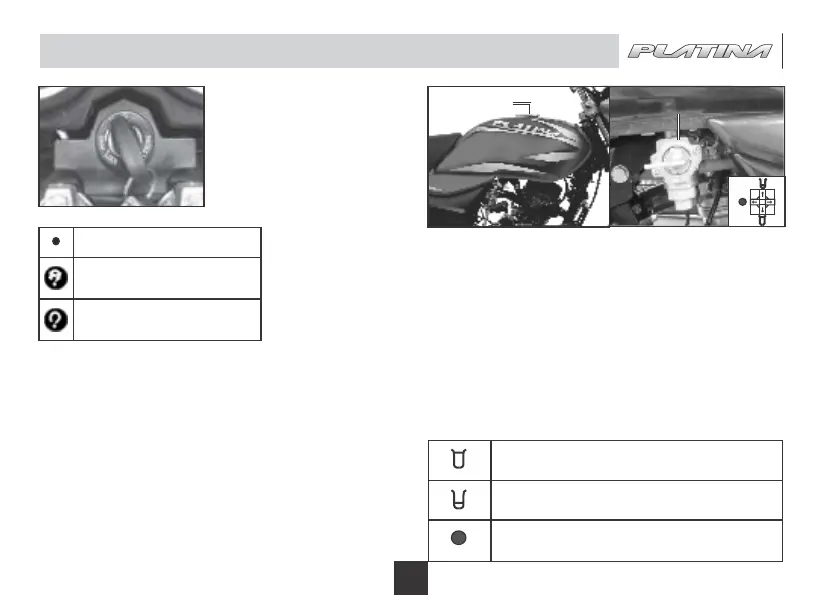

Steering cum Ignition Lock / Fuel Tank Cap / Fuel Tap
Fuel Tank Cap
• To open : Insert the key in the lock and turn
it clockwise and lift fuel tank cap.
• ‘Fuel Tank Cap’ gets locked when pushed
back into the place.
• Don’t attach metallic ‘Key chain’ as it may
damage paint of petrol tank.
Fuel Tap
Fuel Tap
Fuel tap lever has following positions.
ON : When fuel level is above
reserve position.
RES : When fuel level is below
reserve position.
OFF : When fuel supply is to be cut
off.
Fuel Tank Cap
To Lock the Steering : To lock the steering,
turn the handle bar to the left or right. Push
the key inside & turn toward ‘LOCK’ position.
Match the lock position & turn key to ‘LOCK
position. Lock the steering & remove the key.
To Unlock the Steering : To unlock steering,
insert the key in steering cum ignition lock &
turn it clockwise to “OFF” or “ON” position.
Key : A common key is used for ‘Steering
cum Ignition lock’, ‘Fuel tank cap’ & ‘Side
cover RH lock’.
Steering cum
Ignition Lock :
It has three positions.
LOCK: Steering locked. Ignition OFF.
OFF: Steering unlock. Ignition OFF.
ON: Steering unlock. Ignition ON.
