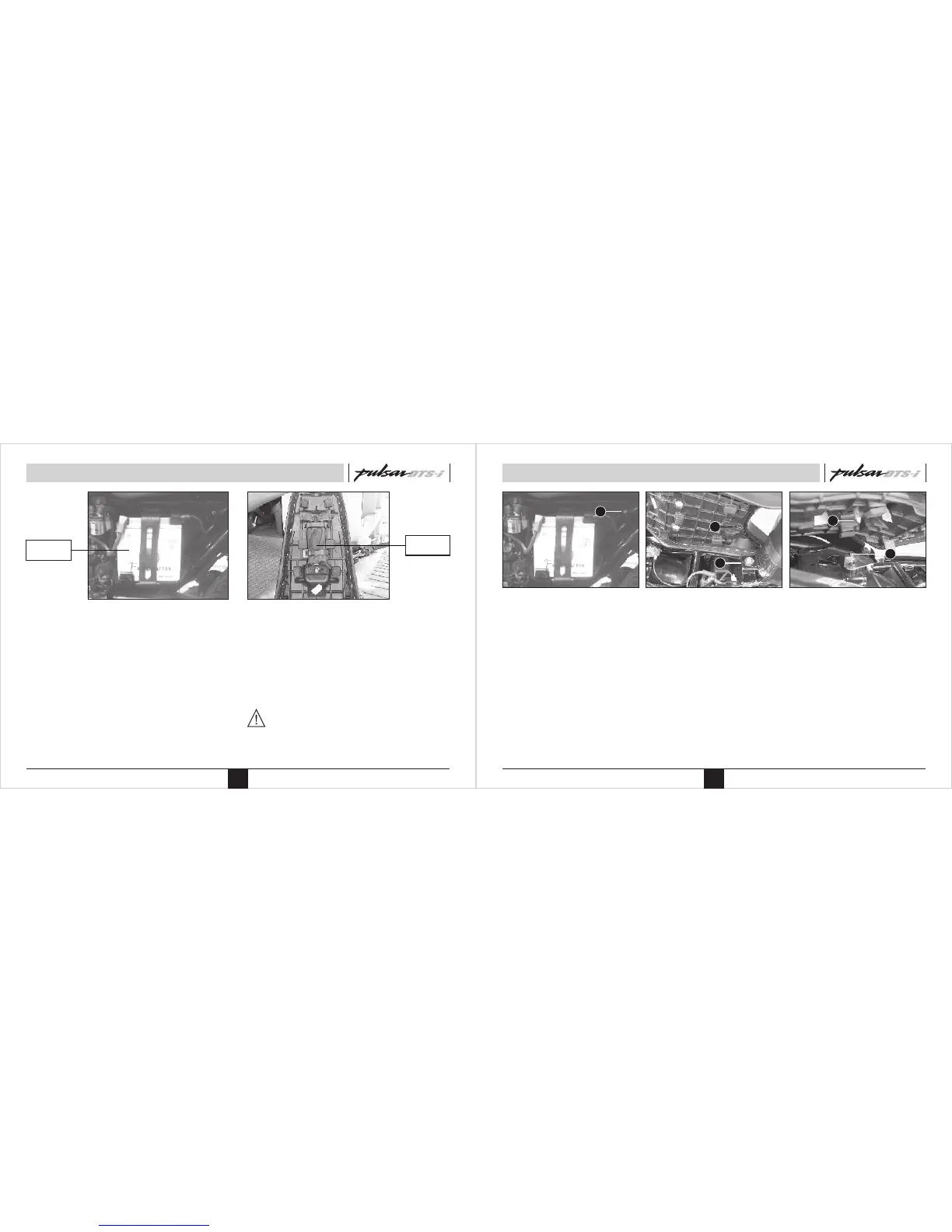

Location of Parts
9
Battery
• It is located inside the ‘Side Cover’ LH.
• Always maintain electrolyte level in each
cell between max and min level lines.
• Always keep a watch on battery charge
level indicating icon, if it flashes (indicates
battery is in low charged condition), show
the vehicle to authorised BAL dealer.
Tool Kit Location
• It is located below seat.
• 2 rubber straps are provided to hold the
tool kit.
CAUTION : Always fit tool kit with
rubber straps.
TOOL KIT
BATTERY
Location of Parts
10
A : Seat Release Cable
A
Fig. B
1
2
Fig. C
3
4
Removal of Seat
• Remove ‘Side Cover’ LH.
• Pull the ‘Seat Release Cable’ (A) to
release seat lock. Keeping cable pulled,
tap the center of seat, lift the seat from
rear end and slide it towards tail lamp to
remove seat.
Fitment of Seat
• Match & insert the bracket (‘1’ of Fig. ‘B’)
of seat with slot (‘2’ of Fig. ‘B’) provided
below fuel tank rear mounting on chassis.
• Push seat towards fuel tank and align
lock rod (‘3’ of Fig. ‘C’) & seat lock (‘4’ of
Fig. ‘C’). Then press the seat in middle
from top to lock the seat.
