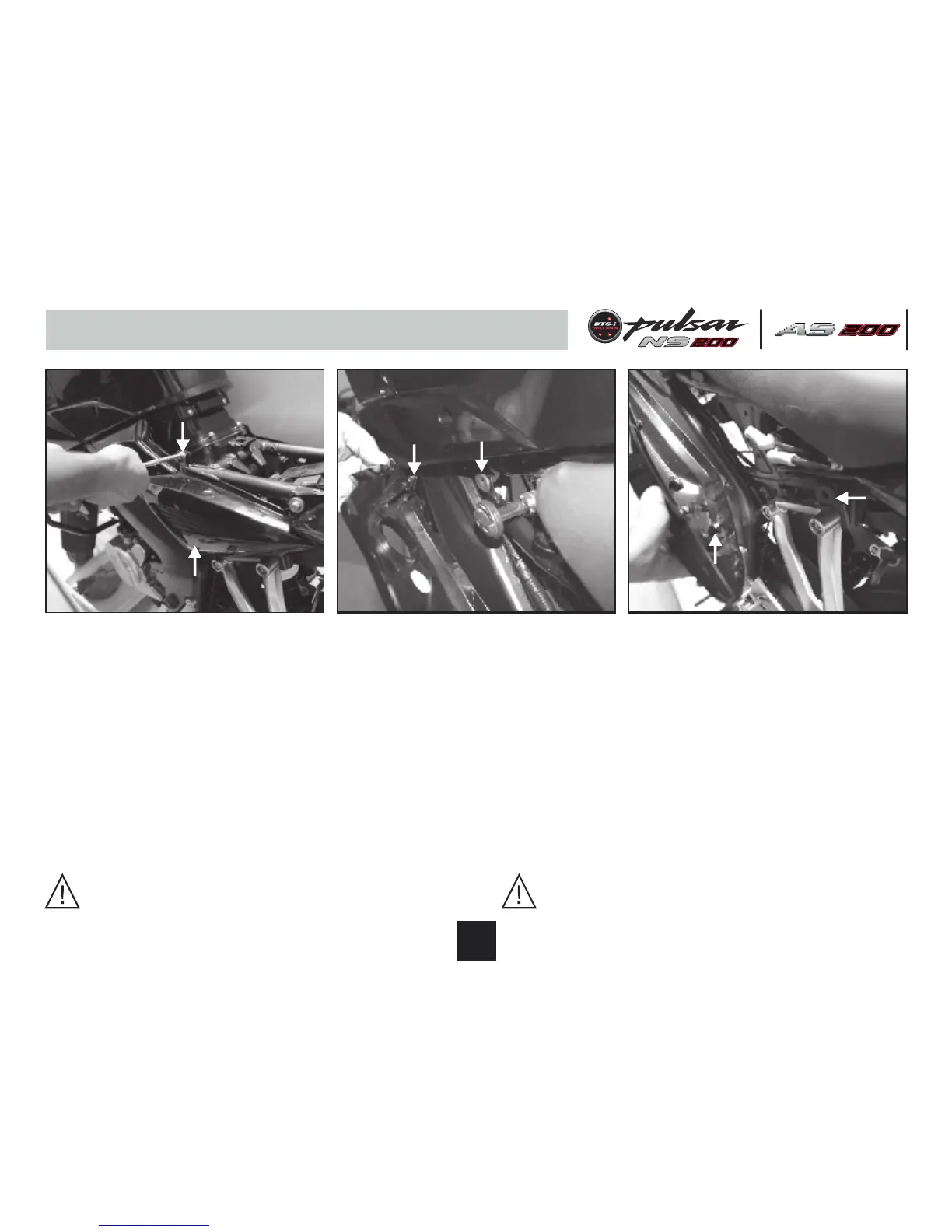

Removal of Side Cover LH or RH
• Remove pillion & rider seat.
• Remove screw (A) upper & (B) lower of side
cover mounting.
• Pull front portion of ‘Side Cover’ to release
its lug from hole (C) provided on ‘Fuel Tank’.
• Pull rear portion of ‘Side Cover’ to release
its Lug (E) from hole (F) provided on
‘Chassis’.
CAUTION : Remove cover as described
above, Otherwise the lugs may break.
Fitment of Side Cover LH or RH
• Match Lug (D) provided on front portion of
‘Side Cover’ with hole (C) provided on
‘Chassis’ and press ‘Side Cover’ inside.
• Match Lug (E) provided on rear portion of
‘Side Cover’ with hole (F) provided on
‘Chassis’ and press ‘Side Cover’ inside.
• Tighten the upper (A) & lower (B) screw with
screw driver.
• Fit pillion & rider seat.
CAUTION : Fit cover as described above
to ensure proper fitment.
19
Removal & Fitment of Side Cover LH / RH
