Filling Your Spa
Once the electric power has been connected, check the following while the power is OFF:
1. Be sure all fittings to the support system are tight. Hand tighten only!
2. Be sure the drain valve is closed.
3. Your spa is equipped with 2 or 4 gate valves. There is one located before the suction side of the pump and one located
adjacent to the discharge side of your heater. If you have a secondary pump, there will be two valves for this pump as well.
Pull the gate valves OUT so they are open (see figure 4 above).
4. Using a garden hose, fill with water to 2-4" above the skim filter. Always fill your spa with hard (not softened) water. Do not
overfill. After the spa is filled, remove the garden hose.
5. Check the equipment module area for water leaks. If there is water dripping, it is probably a loose connection at the
equipment module. You should re-check the tightness of the fittings and placement of the "O"-rings. Check that the filter is
positioned in the skim/filter system.
6. Activate the power to your spa. Refer to the “Control Panel Instruction” section of this manual.
** Spas running on 110v will heat at an average of 1-2 per hour **
* Not to scale; May vary by model
1
1
2
6
3
8
5
4
7
2
1
2
3
4
5
6
7
8
GATE VALVE, 2” SOCKET X 2” SOCKET
PUMP THREADED UNION, 2” SOCKET
PUMP PRIMING BARB
SPA HEATER, 2”
SPA CONTROL SYSTEM
HEATER TAILPIECE, 2” SOCKET
CENTRIFUGAL PUMP, 2” INLET X 2” OUTLET
CONTROL SYSTEM KEYPAD
INSTALLATION OF THIS GFCI POWER CORD MUST BE DONE BY A
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE NATIONAL
ELECTRICAL CODE AND ALL FEDERAL, STATE AND LOCAL CODES IN
EFFECT AT THE TIME OF INSTALLATION.
120VAC POWER CORD WITH INLINE GFCI
•
25 FT LONG CORD
•
STANDARD NEMA 15-5 PLUG
•
CLASS A HEAVY DUTY GFCI PROTECTION
•
15 AMP MAX
•
POWER ON INDICATOR

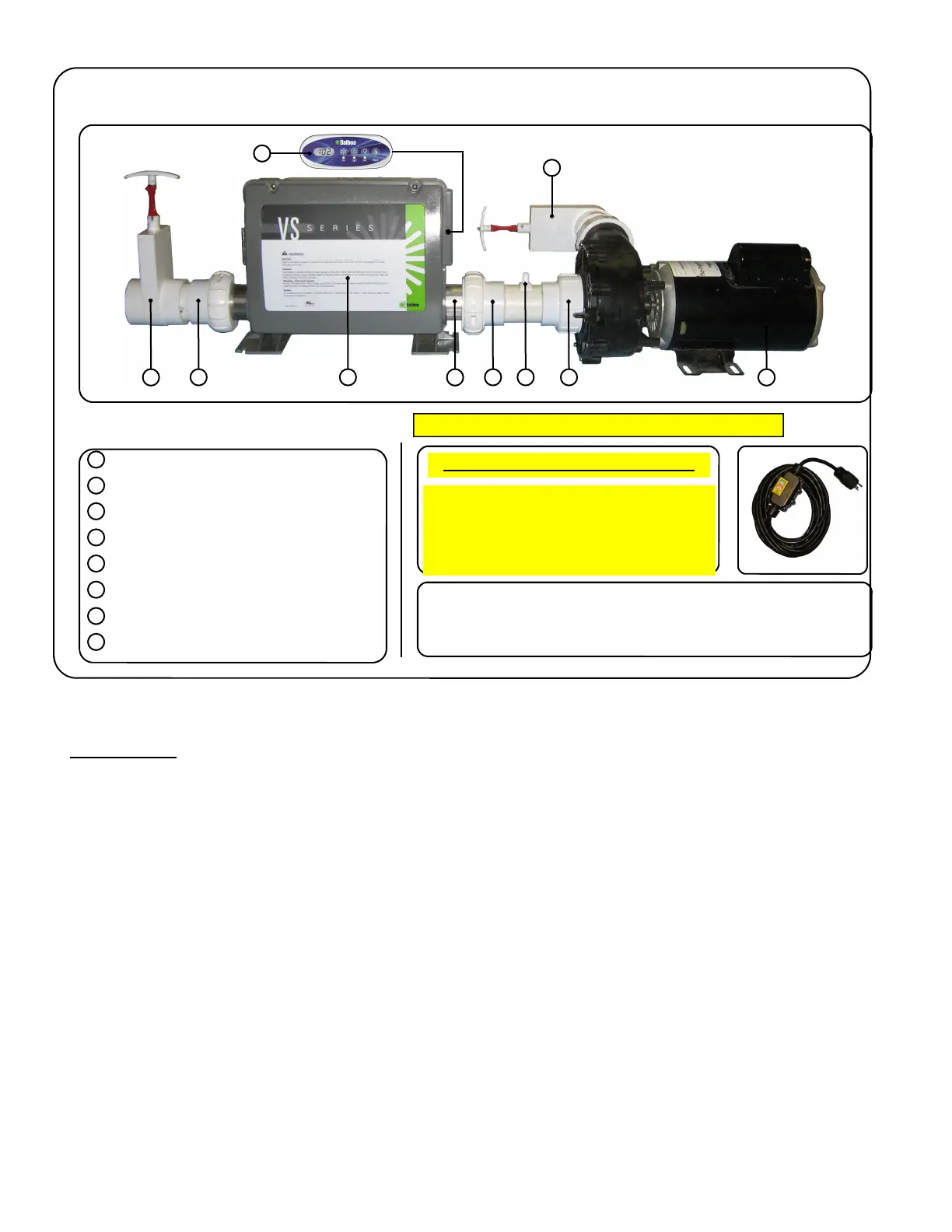

Figure 4
PLUMBING & ELECTRONIC RENDERING
120VAC Power Cord—Models ER15 & ES15 Only
