Digital Engine Controller Description EM0046A21 (MRS17) Continued

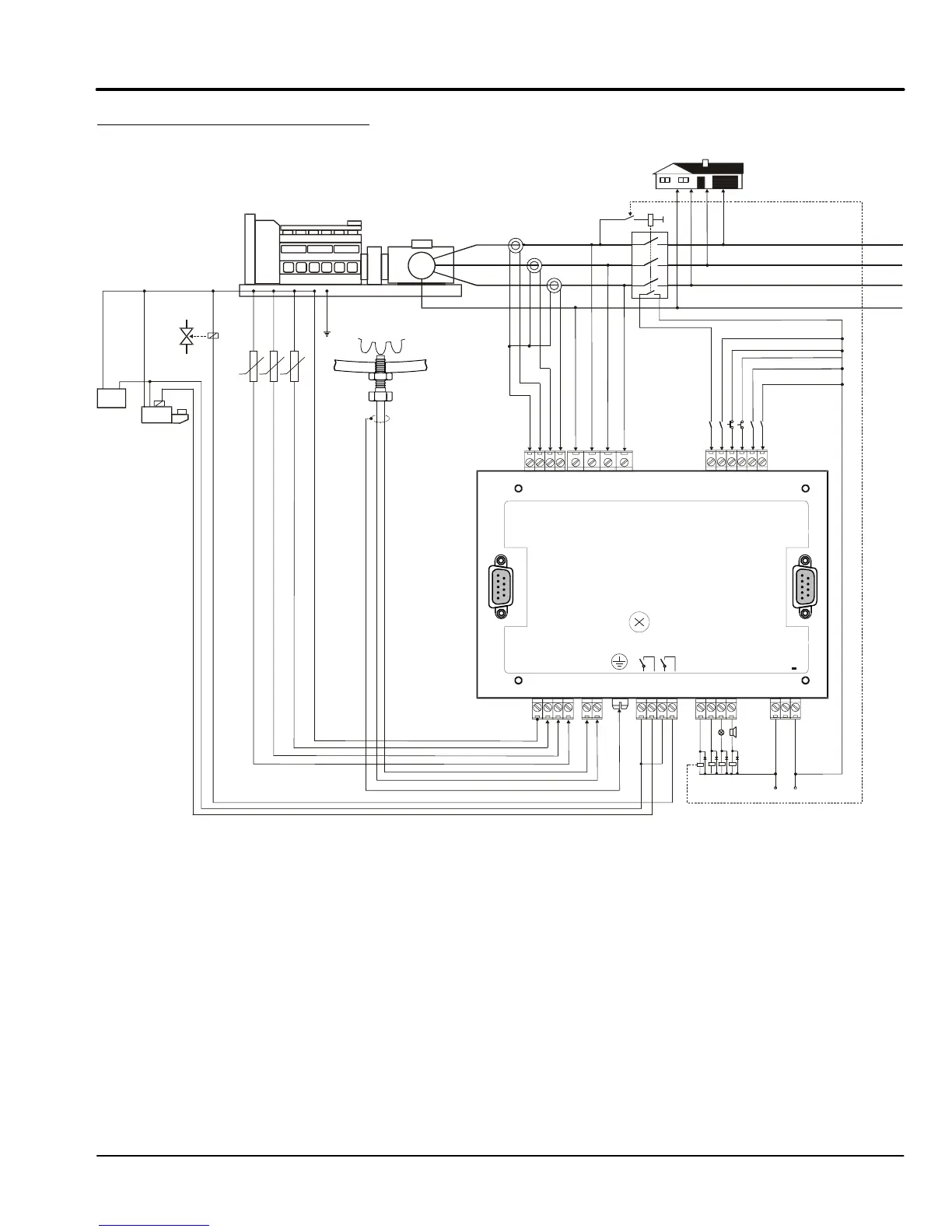

Figure 4-9 Controller Connection Diagram
LOAD
DIESEL/GAS ENGINE
OIL PRESSURE
WATER TEMP
FUELLEVEL
STARTER
BATTERY
− +
FUELSOLENOID
GENERATOR
G
STARTER
FUEL SOLENOI
D
L1
L2
L3
N
Generator C.B.
ANALOG INPUTS
BINARY OUTPUTSRPM
RPM IN COM BO6 BO3 BO4 BO5
BO1 START BO2 FUEL
AI1 OIL AI2 TEMP AI3 FUEL RPM GN
D
POWER
8− 36 V DC
+
EXTENSION MODULES
GENERATOR
CURRENT
GENERATOR
VOLTAGE
N
L1 L2 L3
L3l L2l L1k L1l
BINARY INPUTSBINARY INPUTS
RS 232
BI1 BI2 BI3 BI4 BI5 BI6
BOOT JUMPER
Ground
RPM
Remote Start/Stop Access Lock Emergency Stop Remote Off Sprinkler Not Used
HORN
PRESTART
RDY TO LOAD
ALARM
GENERATOR CB
D+
