Balex ABL2500 - Vehicle Cable Kit Installation

2016-07-23 QF-T05 - BML - Vehicle Kit Installation - 2016-07-23.docx 1

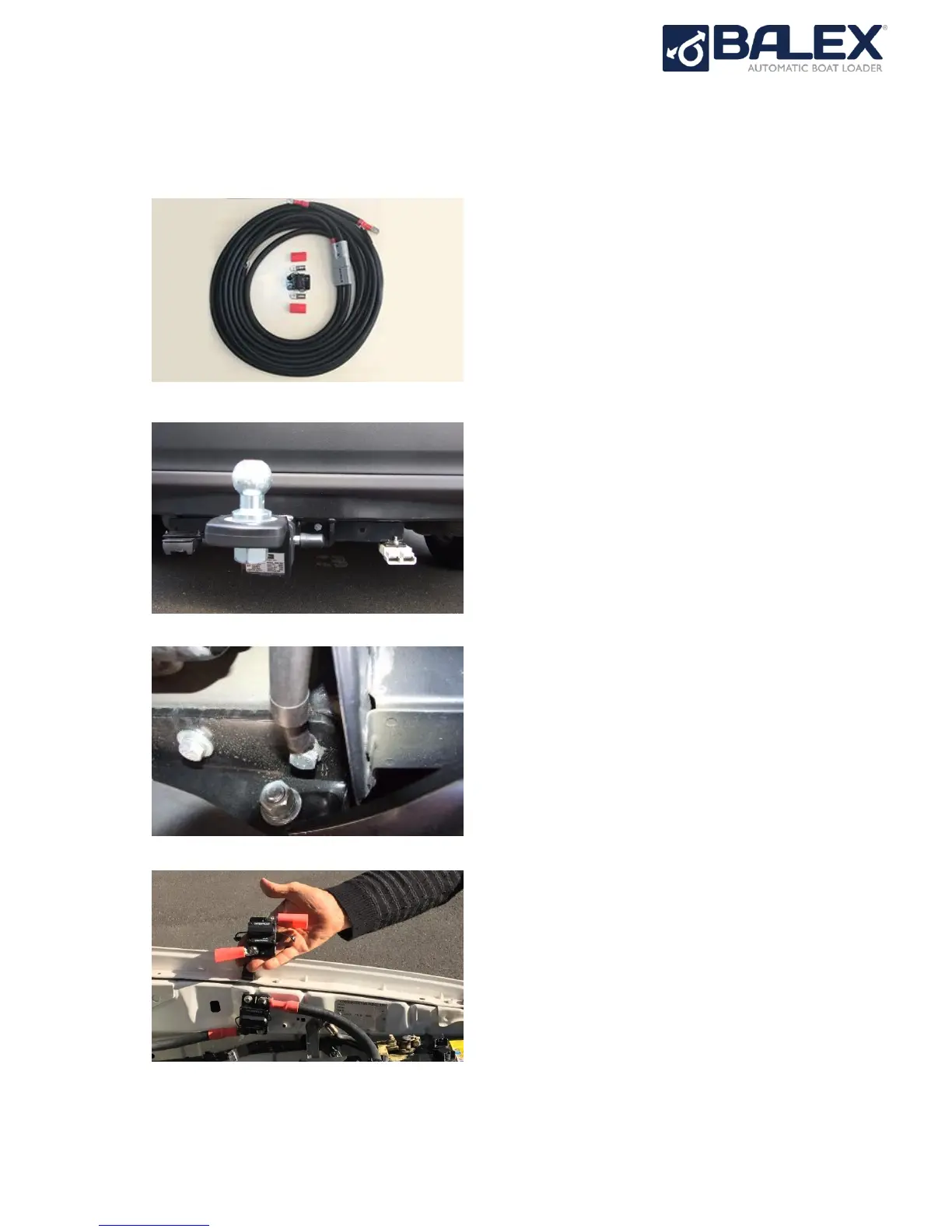

BALEX® ABL2500 VEHICLE CABLE 200A KIT 70mm² (PN: 300112)
Must be fitted by an authorized auto electrician or approved motor vehicle dealer
1. Vehicle Cable 200A KIT includes:
1 x 175 Amp Anderson Type Plug
1 x Positive Cable (Red) 7.0m x 70mm²
1 x Negative Cable (Black) 0.7m x 70mm²
1 x 200 Amp Circuit Breaker
2 x Crimp type circuit breaker lugs (loose)
2 x Heat shrink for lugs (loose)
2. 175AMP Anderson Plug
 Find a suitable place near the tow ball and
mount the Anderson plug (mounting bracket not
included).
3. Positive & Negative Cable
 Run the Positive Cable to the battery avoiding
sharp edges and hot exhaust components,
secure firmly. Do not attach this lead to other
smaller leads or hoses.
 Find a suitable 12mm bolt close to the tow ball
and bolt the short Negative Cable to the bolt.
Ensure it is grounded properly.
4. Circuit Breaker
 Mount 200A Circuit Breaker close to Battery
with RED reset tab showing.
 Run Positive Cable to the Circuit Breaker and cut
to length.
 Run the remaining Positive Cable from the
Battery to the Circuit Breaker and cut to length.
 Crimp the Terminal Lugs to Cable ends, install
Heat Shrink and secure Lugs to Circuit Breaker.
 Attach Positive Cable to the + Battery terminal.
