12 english
5.4 Presettings
The station address can be configured through the
Set_Slave_Address service. This service requires a class2
DP master. The linear position sensor’s GSD file is used for
configuration. The GSD file provides all setup option
information. The COMProfibus from Siemens, for example,
can be used for configuration.
NOTICE
Device damage
Particles, dirt or dust entering the housing can affect the
functioning of the BTL and damage it.
► When opening the housing, make sure that no
particles can get into the device.
► When closing the cover, make sure that there
is enough pressure on the seal. Tightening
torque:0.8Nm
For use in standard Profibus systems, the station address
and the terminating resistor are set via the integrated S1
DIP switch before startup (see Fig. 5-1 and Fig. 5-2).

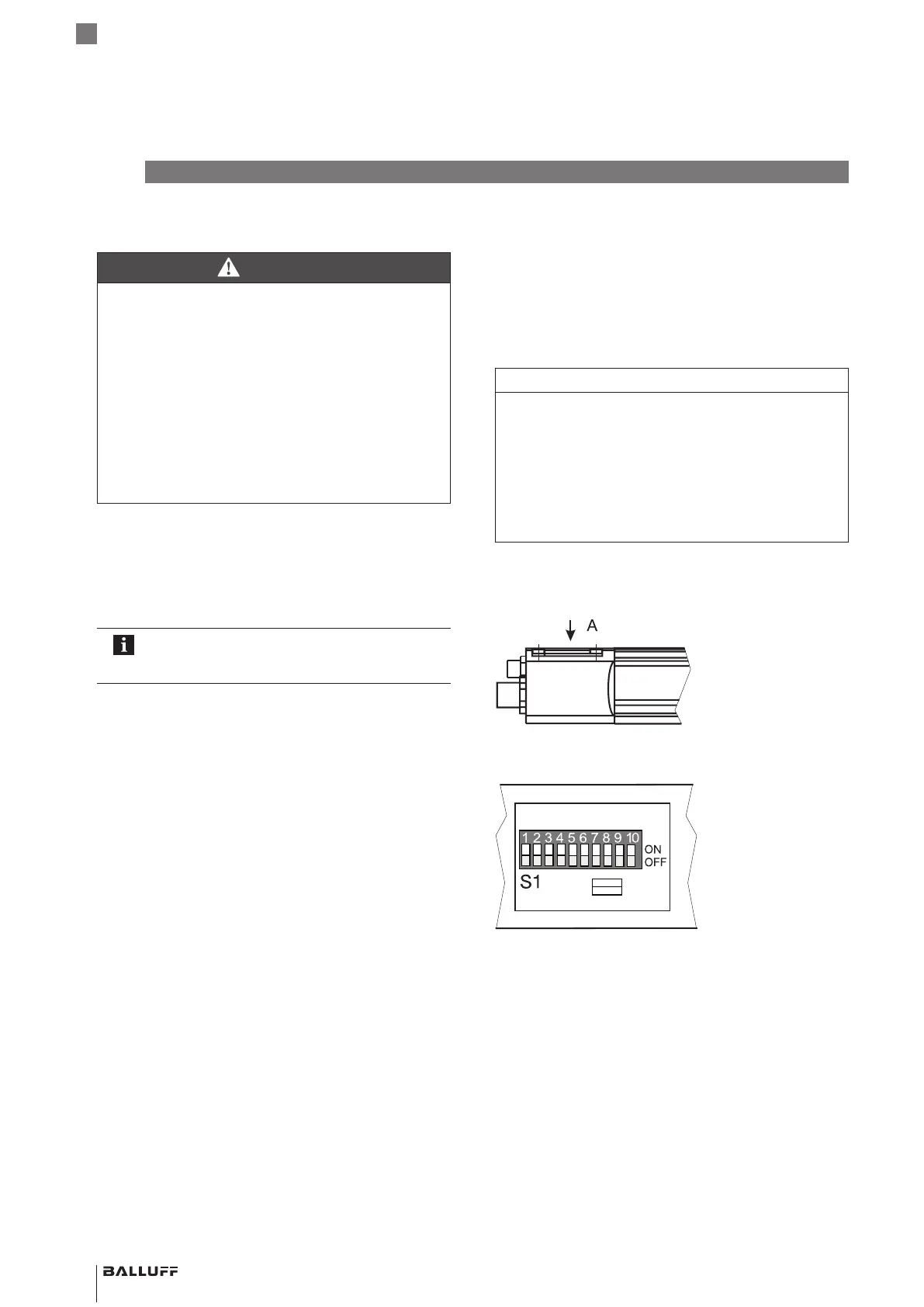

Fig. 5-1: Position of the S1 DIP switch
Fig. 5-2:
red
green
ViewA, S1 DIP switch for setting the station address and
terminating resistor
5
Startup
5.1 Starting up the system
DANGER
Uncontrolled system movement
When starting up, if the position measuring system is part
of a closed loop system whose parameters have not yet
been set, the system may perform uncontrolled
movements. This could result in personal injury and
equipment damage.
► Persons must keep away from the system’s
hazardous zones.
► Startup must be performed only by trained technical
personnel.
► Observe the safety instructions of the equipment or
system manufacturer.
1. Check connections for tightness and correct polarity.
Replace damaged connections.
2. Turn on the system.
3. Check measured values and adjustable parameters
and readjust the BTL if necessary.
Check for the correct values, especially after
replacing the BTL or after repair by the
manufacturer.
5.2 Operating notes
– Regularly check function of the BTL and all associated
components.
– Take the BTL out of operation whenever there is a
malfunction.
– Secure the system against unauthorized use.
5.3 Default setting
The BTL is delivered with the following default settings:
– Station address: 126
– Resolution: position 5µm, velocity 0.1mm/s
– Maximum working/useful range
BTL5-T1 __ -M ____ -P-S103
Magnetostrictive Linear Position Sensor – Profile Style
