Balluff BTL5-T1 M P-S103 Series User Manual

www.balluff.com 15english
7.1 Captive magnets
BTL5-M/N-2814-1S
Y
28
22
41
Ø 2
20
X
M5

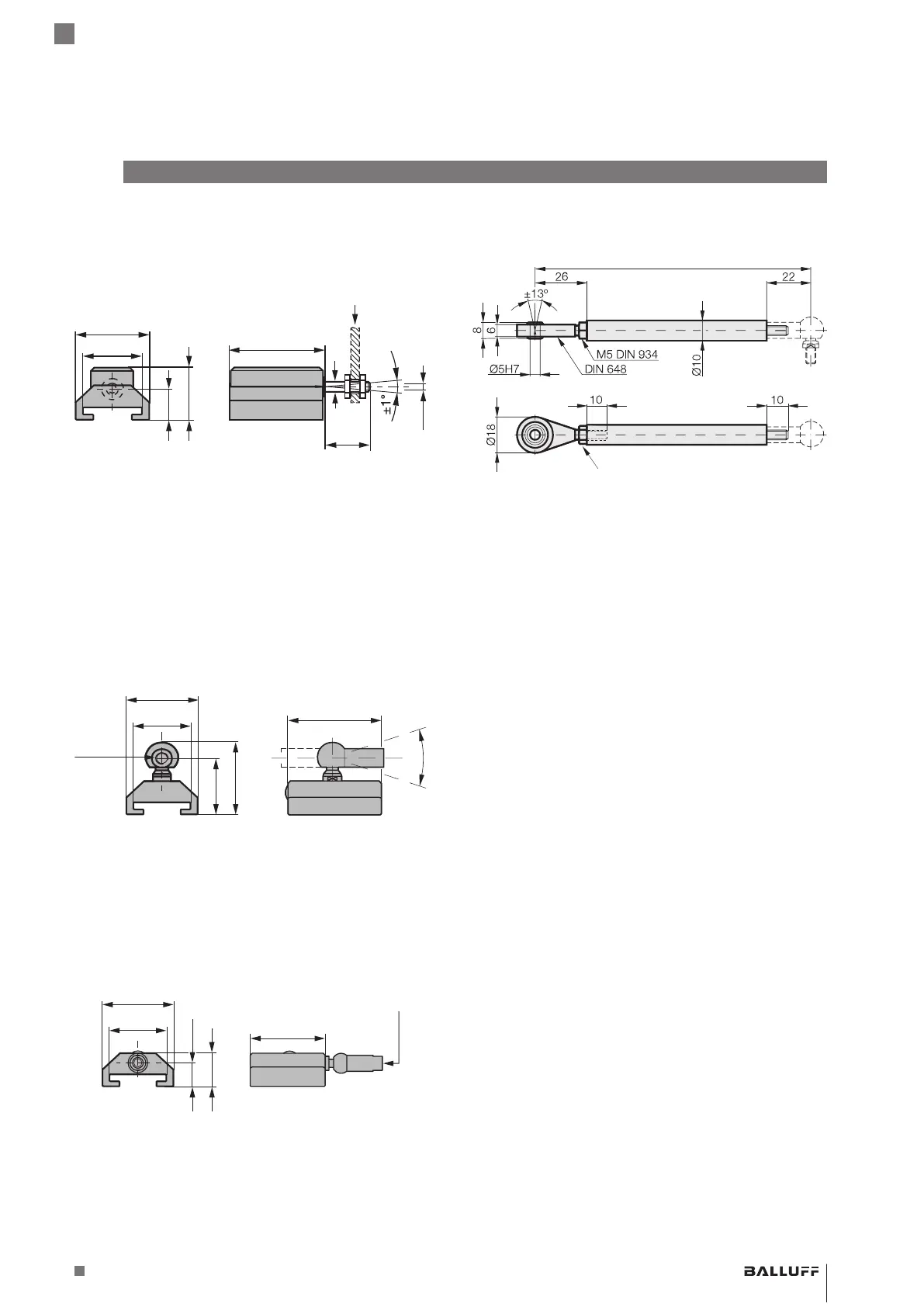

Fig. 7-1: Installation dimensions of BTL5-M/N-2814-1S magnet
BTL5-M-2814-1S BTL5-N-2814-1S
Distance X 12.5 mm 15 mm
Distance Y 21 mm 23.5 mm
Weight: Approx.32 g Approx.35 g
Housing: Aluminum Aluminum
Slide surface: Plastic Plastic
BTL5-F-2814-1S
30.4
28
22
M5x10
±18°
24
40
Fig. 7-2: Installation dimensions of BTL5-F-2814-1S magnet
Weight: Approx.28 g
Housing: Aluminum
Slide surface: Plastic
BTL5-T-2814-1S
16.5
11.5
28
22
40
M5x10
Fig. 7-3: Installation dimensions of BTL5-T-2814-1S magnet
Weight: Approx.28 g
Housing: Aluminum
Slide surface: Plastic
7.2 BTL2-GS10-_ _ _ _-A joint rod
Fig. 7-4: BTL2-GS10-_ _ _ _-A joint rod
Weight: ca. 150g/m
Material: Aluminum
1)
State the nominal length when ordering
Example: BTL2-GS10-0100-A (nominal length = 100mm)
7
Accessories
BTL5-T1 __ -M ____ -P-S103
Magnetostrictive Linear Position Sensor – Profile Style
