Accessories (continued)

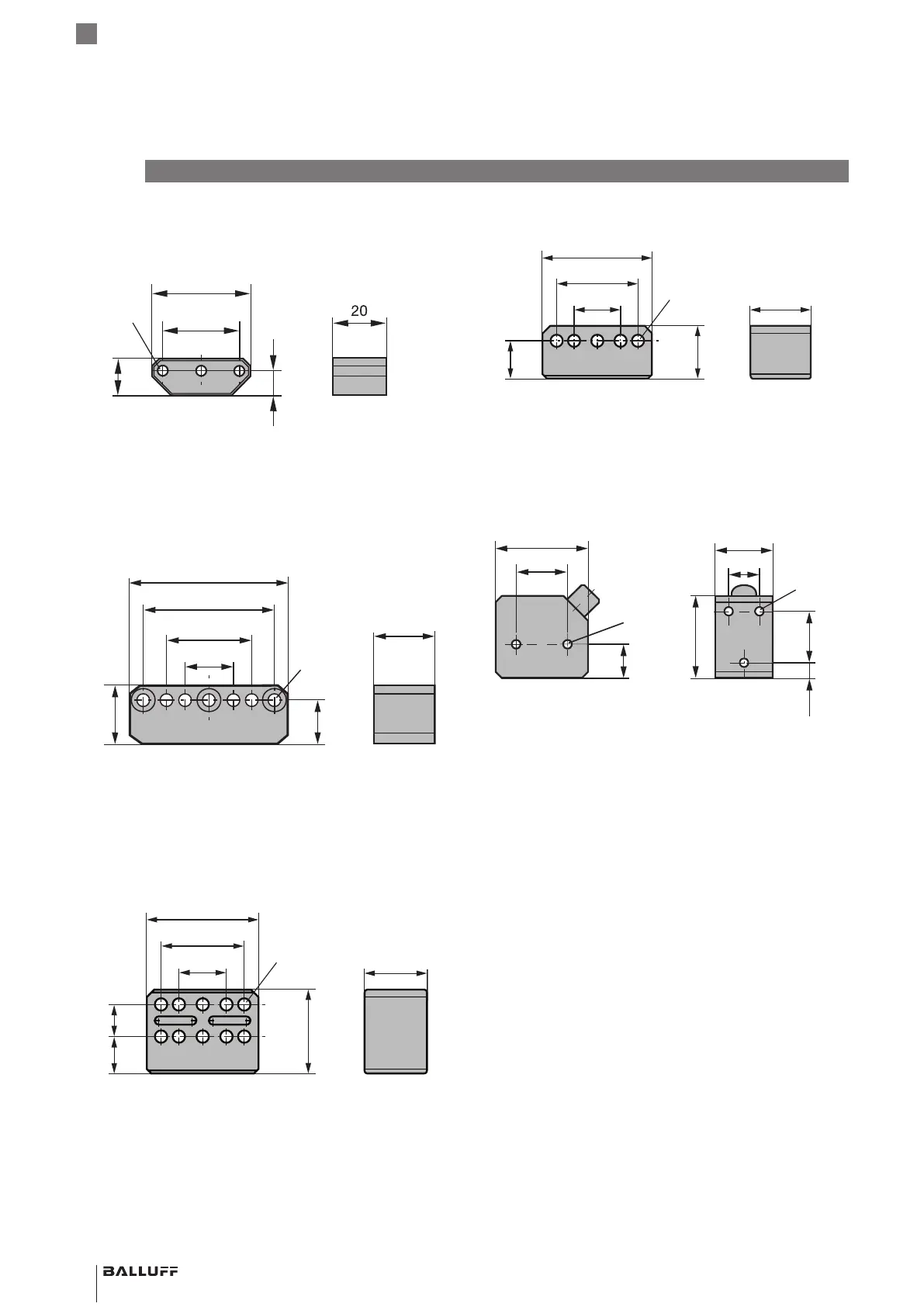

7.3 Floating magnets
BTL5-P-3800-2
38
28
9
14
Ø 4.2
Fig. 7-5: Installation dimensions of BTL5-P-3800-2 magnet
Weight: Approx.12g
Housing: Plastic
BTL5-P-5500-2
55
28
16
45
21
Ø 4.2
20
15
Fig. 7-6: Installation dimensions of BTL5-P-5500-2 magnet
Weight: Approx.40g
Housing: Plastic
BTL6-A-3800-2
21
10.813
28.8
28
16
37.6
Ø 4.2
Fig. 7-7: Installation dimensions for BTL6-A-3800-2
Weight: Approx.30 g
Housing: Plastic
BTL6-A-3801-2
28
16
21
37.6
Ø 4.2
18
13
Fig. 7-8: Installation dimensions for BTL6-A-3801-2
Weight: Approx.25 g
Housing: Plastic
BTL5-P-4500-1
16.5
45
25
28
15
Ø 4.5
25
7.
5
M5x8
40
Fig. 7-9: Installation dimensions of BTL5-P-4500-1 magnet
Weight: Approx.90 g
Housing: Plastic
Ambient temperature: −40°C…+60°C
Special advantage of the BTL5-P-4500-1 magnet: Several
magnets on the same BTL can be separately switched on
and off electrically (actuation with a PLC signal).
