www.balluff.com 29english

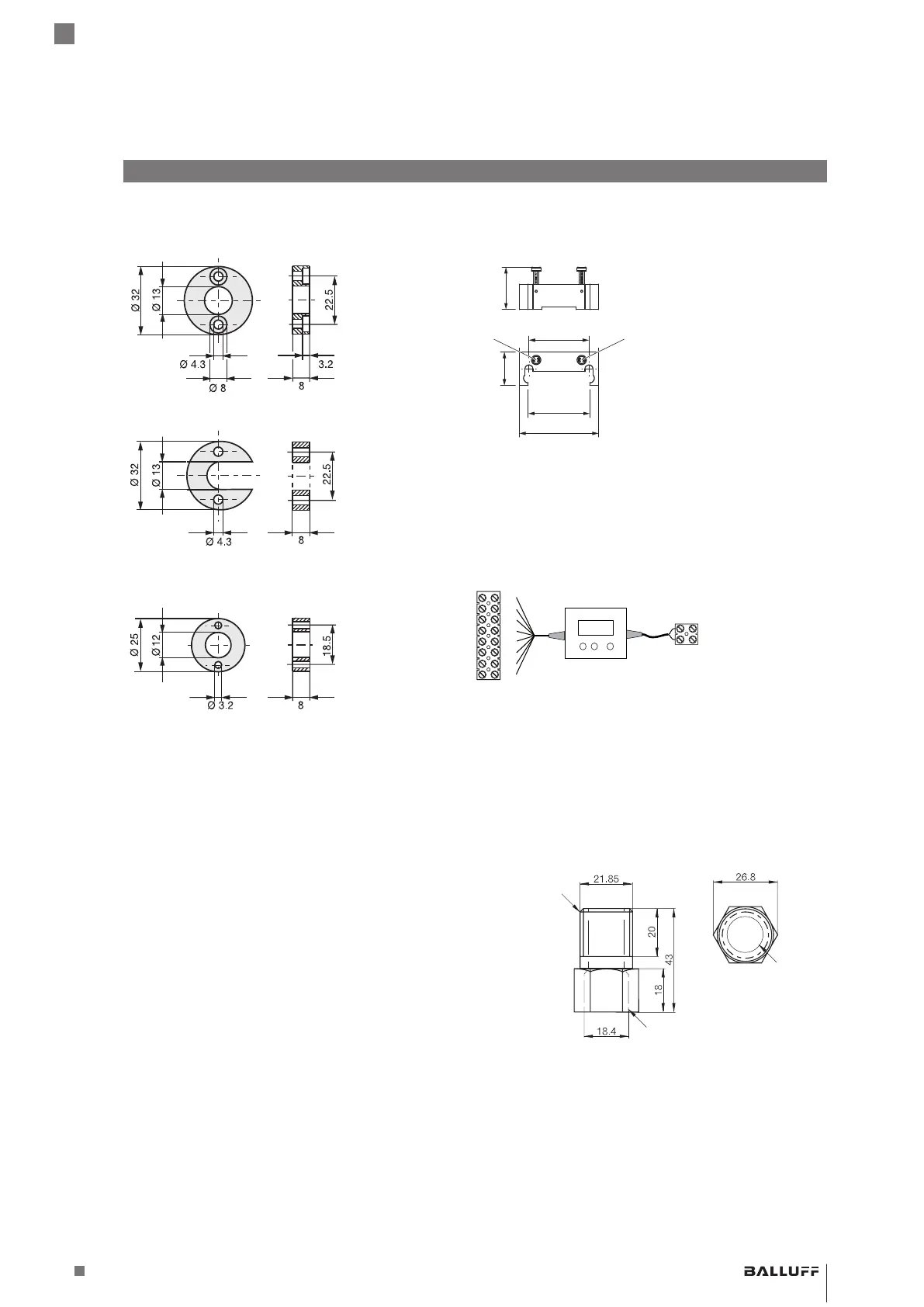

12.2 Magnets
Fig. 12-1:
BTL-P-1013-4R
BTL-P-1013-4S
BTL-P-1012-4R
Magnet installation dimensions
Order code
BTL-P-1013-4R
BTL-P-1013-4S
BTL-P-1012-4R
BAM013L
BAM013P
BAM013J
Weight <15g
Housing material Aluminum
Ambient
temperature
–40…+85°C
Included in the scope of delivery for the magnet:
Spacer 8mm, non-magnetizable material
12.3 Calibration device
BTL7-A-EH03
60
25.4
45.5 BU GY
46.6
32
Order code BAM02ME
Weight 96g
Housing material Plastic
12.4 Calibration box
BTL7-A-CB02-K
YE
GY
PK
RD
GN
BU
BN
WH
Order code BAE00EF
Scope of delivery:
– Calibration box
– 2 adapter cables, each approx. 0.3 m/0.6 m
– Instructions
12.5 Conduit adapter
BTL-A-AD09-M-00EX
Ø 15
Ø 15
M20 thread
1/2" NPT thread
Order
code
BAM011T
Housing Nickel-plated brass
12
Accessories (continued)
BTL7-A/C/E/G5_ _-M_ _ _ _-J-DEXC-TA12
Magnetostrictive Linear Position Sensor – Rod Style
Type of protection “db” and “ta”
Flameproof enclosure
