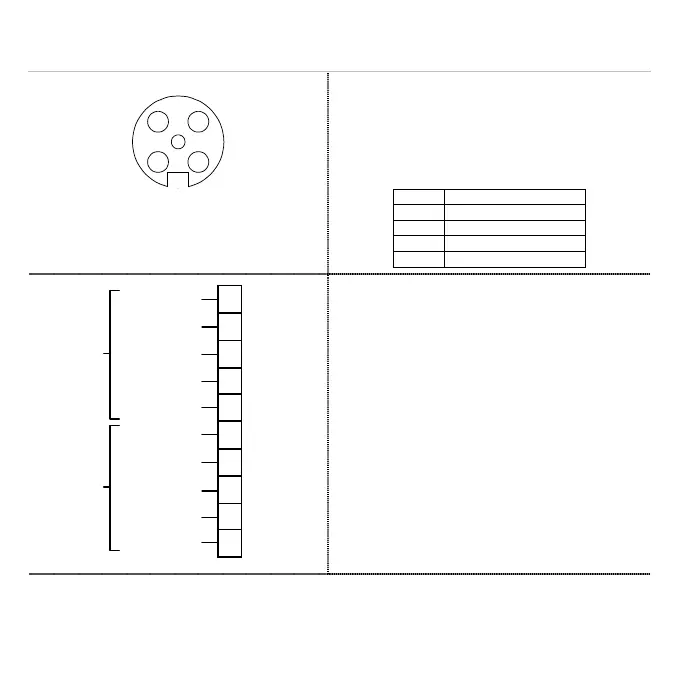

electrical connections
5
2 3
41
Front view of
male connector pins
external connections
Two FastNet² connectors are provided at the rear of the
unit. These connectors allow connection to the rest of the
system for the supply of power and data.
The table below shows pin functions.
Pin Number Signal
1
12V
2
Busy
3
FastNet²-
4
FastNet²+
5
0V
NMEA TX+
NMEA TX-
NMEA SCN
NMEA RX-
NMEA RX+
SCREEN
RED
No CONN.
No CONN.
BLUE
1 2 3 4 5 6 7 8 9 10
ALARM
NMEA
UNIVERSAL
internal connections
Wire the cables into the interface box as shown in the
diagram opposite.
