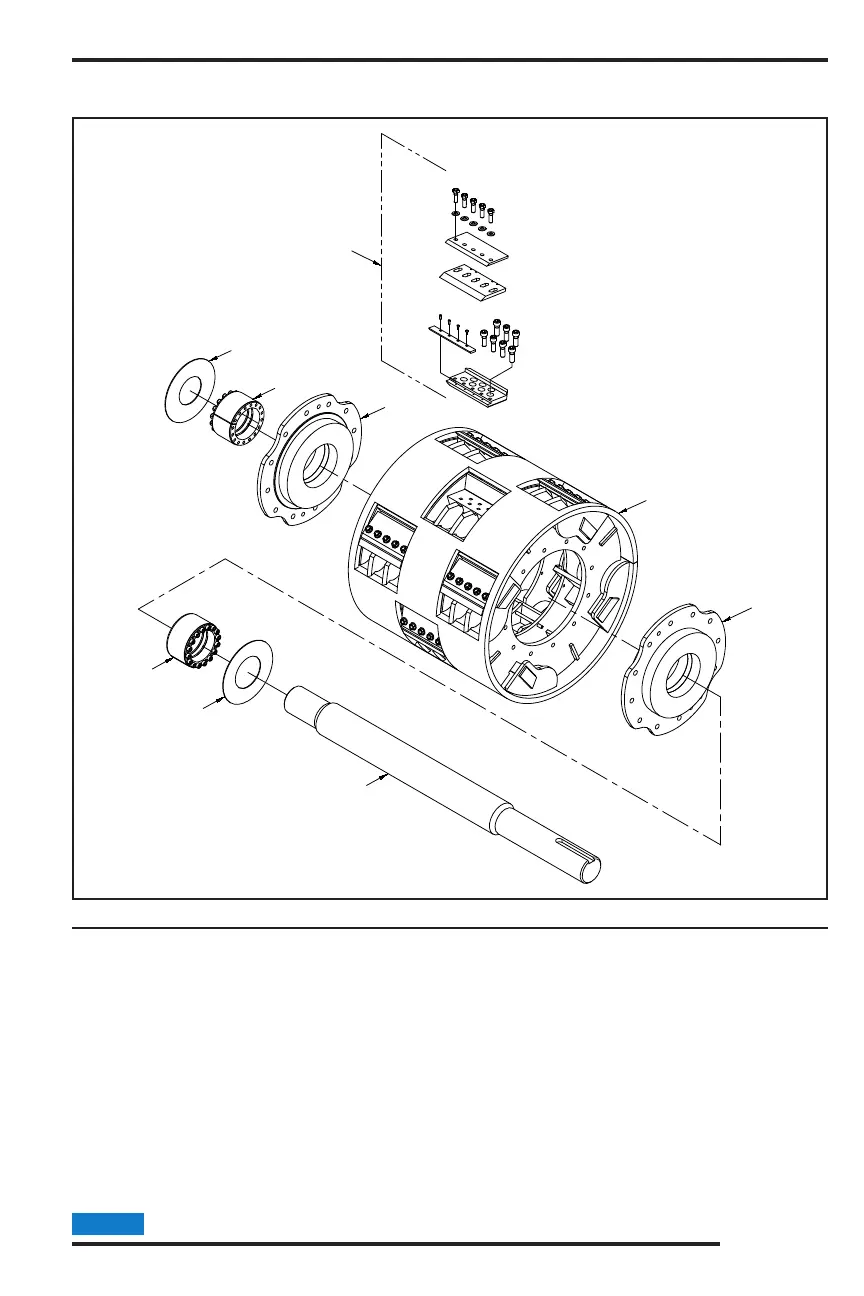

MODEL 2590 CHIPPER COMPONENTS
MICRO CHIPPER DRUM
Parts may not be exactly as shown.NOTICE
LOCATION PART NUMBER DESCRIPTION
2
3
4
5
3
4
8
6
7
1. 259-1000-88 Drum Assembly Complete
2. 259-2002-20 Drum Assembly
3. 938-200133 Drum End Plate Assembly
4. 900-1914-34 Keyless Locking Bushing
5. 259-3005-52 Keyless Locking Bushing Cover Plate
6. 977-301610 Drum Bushing Cover Plate
7. a. 259-3013-82 5” Drum Head Shaft (440 HP - 499 HP)
b. 259-3014-86 5” Drum Head Shaft (500 + HP)
c. 259-3000-68 4 15/16” Drum Head Shaft (440 HP - 499 HP)
d. 259-3005-21 4 15/16” Drum Head Shaft (500 + HP)
8. See Pages 92 - 93 Drum Knife Pocket Assembly See page
