MODEL 2590
LOCATION PART NUMBER DESCRIPTION
Anvil Bolt Torque: 250 ft.-lbs. (339 Nm)

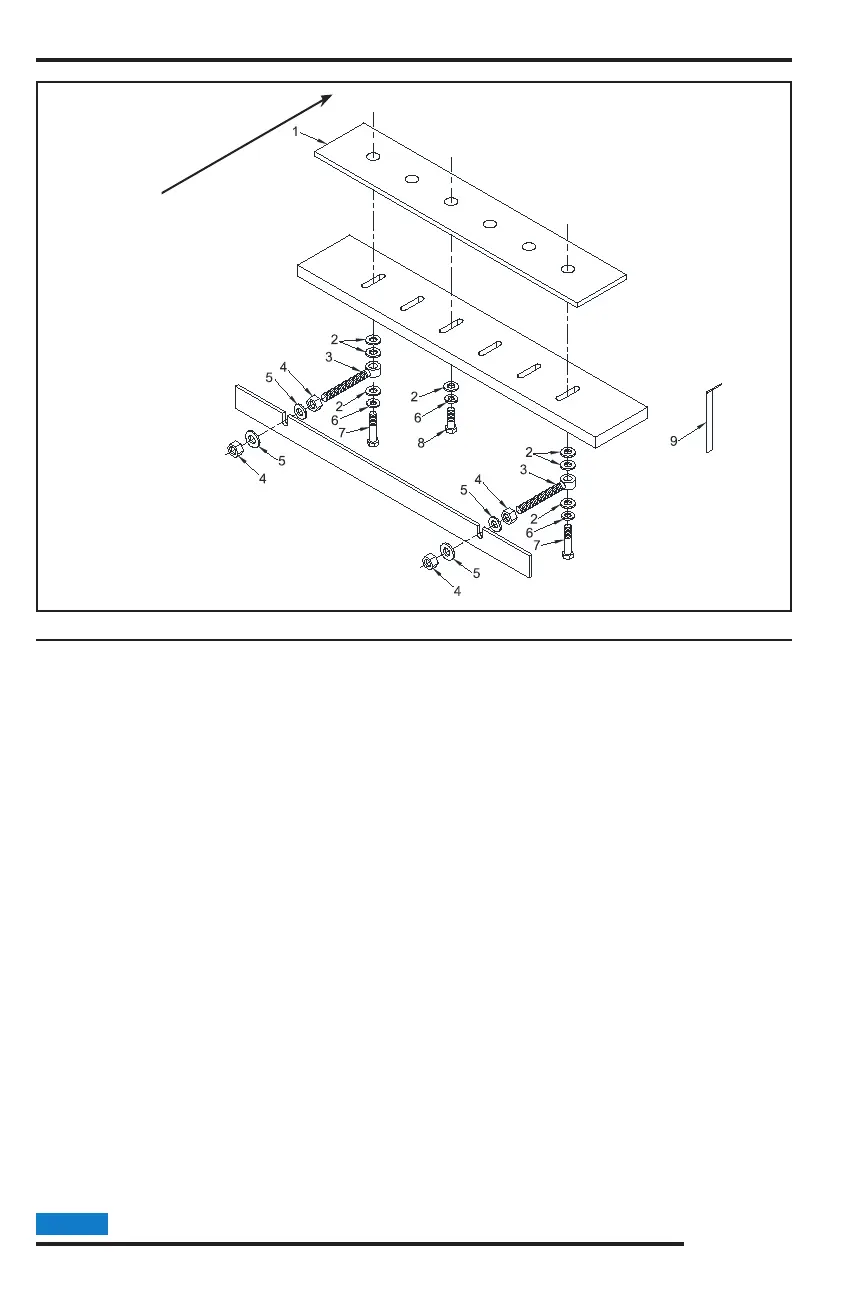

ANVIL HARDWARE
Parts may not be exactly as shown.NOTICE
FEED
DIRECTION
1. 259-3001-20 Anvil Only
2. 900-4903-21 3/4” Mill Carb Washer
3. 900-4902-75 Adjuster Eye Bolt 5/8” x 6”
4. 900-4907-04 5/8”-11NC Nut
5. 900-4901-32 5/8” Mill Carb Washer
6. 900-4907-17 3/4” Lock Washer
7. 900-4912-80 3/4”-10NC x 4” Bolt
8. 900-4907-14 3/4”-10NC x 3” Bolt
9. 955-300193 Anvil to Knife Gauge
10. 900-4921-24 Anvil Hardware Kit (Includes Items 2 - 8)
