MODEL 2590 CHIPPER KNIFE & HARDWARE
Parts may not be exactly as shown.NOTICE
KNIFE BOLTS MUST BE INSTALLED THROUGH KNIFE AS SHOWN.
NOTICE
Torque Knife Bolt to 210 ft.-lbs. (285 Nm)
Torque Knife Holder Bolt to 250 ft.-lbs. (339 Nm) with Loctite 243 (Blue)
Torque Counter Knife Bolts to 15 ft.-lbs. (20 Nm) with Loctite 243 (Blue)
LOCATION PART NUMBER DESCRIPTION
Knife Holders, Knife Holder Bolts, & Knife Gauges for
other chip sizes available upon request.
BABBITT STYLE KNIFE
LOCATION PART NUMBER DESCRIPTION
1. 500-0001-16 Knife Saver Kit
2. 900-9901-65 File For Knife Saver Kit Only
3. 900-9914-29 Replacement Blades For Knife Saver
4. 900-9914-24 Knife Changing Gloves
KNIFE SAVER KIT
6
7
10
5
4
3
2
8
9

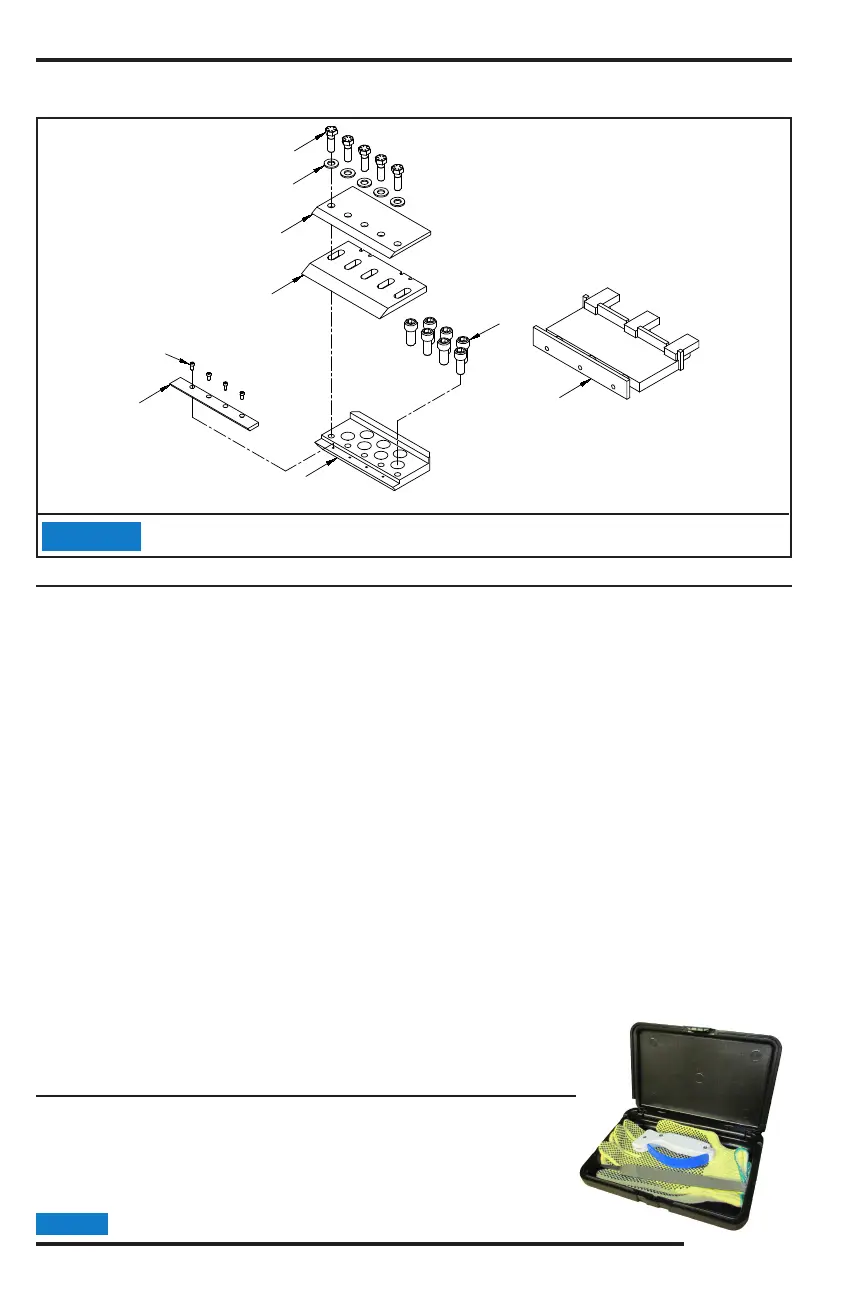

1. 259-1000-93 Micro Chip Pocket Assembly
2. 259-3013-33 Knife Holder - Babbitt Style Knife
3. 259-3004-84 Counter Knife
4. 900-4909-76 1/4” - 20 x 1/2” SHCS Counter Knife Bolts
5. 900-9907-29 Drum Knife
6. 259-3000-92 Drum Knife Clamp
7. 900-4901-32 Washer
8. 900-4913-99 5/8” - 18 x 2” NF Gr 8 Hex Head Bolt
9. 900-4921-18 3/4” - 10 x 1 3/4” SHCS
10. 259-2000-38 Chipper Knife Gauge
11. 900-4921-18 Ladle (Not Shown)
12. 900-9900-60 Bar Of Babbitt (Not Shown)
