Bandit
95Copyright 6/18

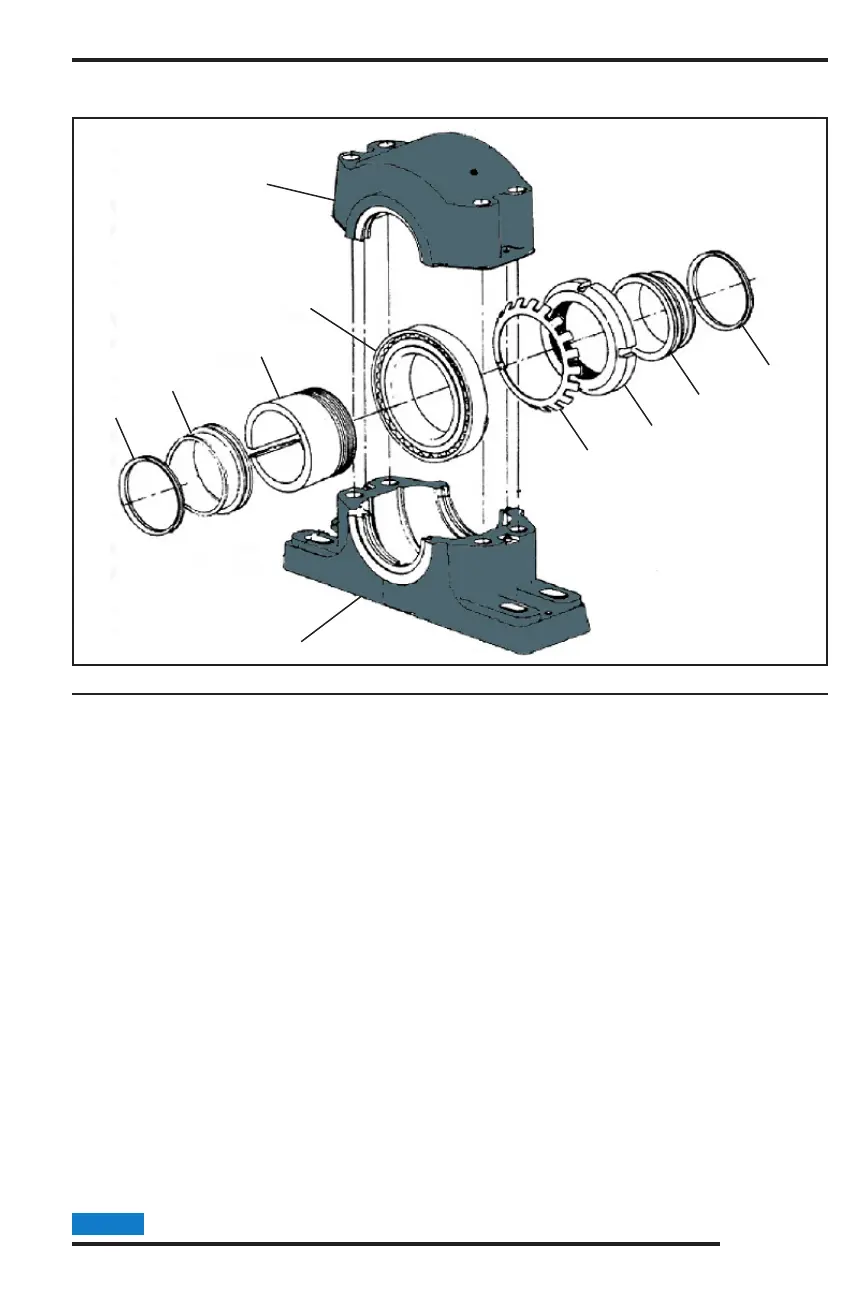

MODEL 2590 BEARING COMPONENTS
Parts may not be exactly as shown.NOTICE
1.
2.
4a.
4b.
3.
1.
2.
2.
4a.
4b.
DRUM BEARING
LOCATION PART NUMBER DESCRIPTION
Torque Bearing Housing Cap Bolt to 350 ft.-lbs. (475 Nm)
Torque Bearing Mounting Bolt to 500 ft.-lbs. (678 Nm)
** Components vary with engine, order by physical description or machine S/N
1. 900-1913-74 Bearing Housing
2. a. 900-1911-88 Bearing Adapter - Includes Lock Washer & Lock Nut - 4 15/16”
b. 900-1921-82 Bearing Adapter - Includes Lock Washer & Lock Nut - 5”
3. 900-1911-86 Bearing Insert - 4 15/16” or 5”
4. a. 900-1911-87 Grease Seal - Includes Seal Ring (1 per on Radiator Side Bearing) - 4 15/16”
b. 900-1921-83 Grease Seal - Includes Seal Ring (1 per on Radiator Side Bearing) 5”
5. 900-1911-89 Bearing End Cap (Not Shown) - 4 15/16” or 5”
6. a. 900-4909-15 1”-8NC x 6” Bearing Housing Cap Bolt (Not Shown)
b. 900-4914-25 1”-8NC x 12 1/2” Bearing Housing Cap Bolt (Not Shown)
c. 900-4913-52 1”-8NC Automation Lock Nut (Not Shown)
d. 900-4908-99 1” Lock Washer (Not Shown)
e. 900-6907-68 1” Washer (Not Shown)
7. a. 900-4913-37 1”-8NC x 4 1/2” Bearing Mounting Bolt (Not Shown)
b. 900-4913-52 1”-8NC Automation Lock Nut (Not Shown)
c. 900-6907-68 1” Washer (Not Shown)
8. a. ** Bearing Assembly - Drive Side (Includes 1 - 4)
b. ** Bearing Assembly - Radiator Side (Includes 1 - 5)
