Page 15
Making the connection

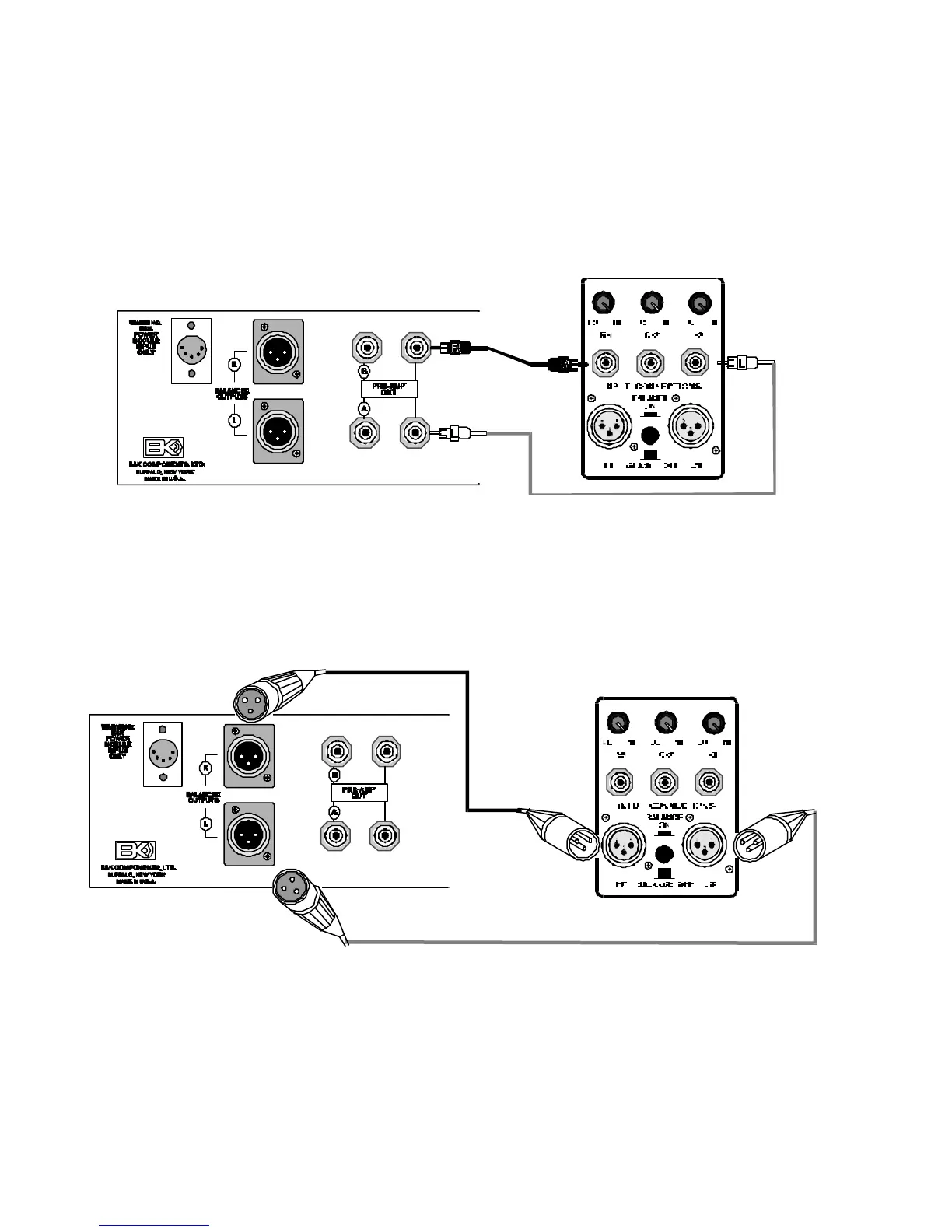

The diagram below shows a typical connection between the preamplifier and a B&K
amplifier using the unbalanced RCA outputs.
Note: The balanced button on the amplifier must be in the off (out) position.
The diagram below shows a typical connection between the preamplifier and a B&K
amplifier using the balanced XLR outputs.
Note: The balanced button on the amplifier must be in the on (in) position.
You may use either of these options to connect your preamplifier to the main amplifier. If you
wish to connect additional amplifiers, you may use both examples or use both sets of PRE-
AMP OUTS.
