74

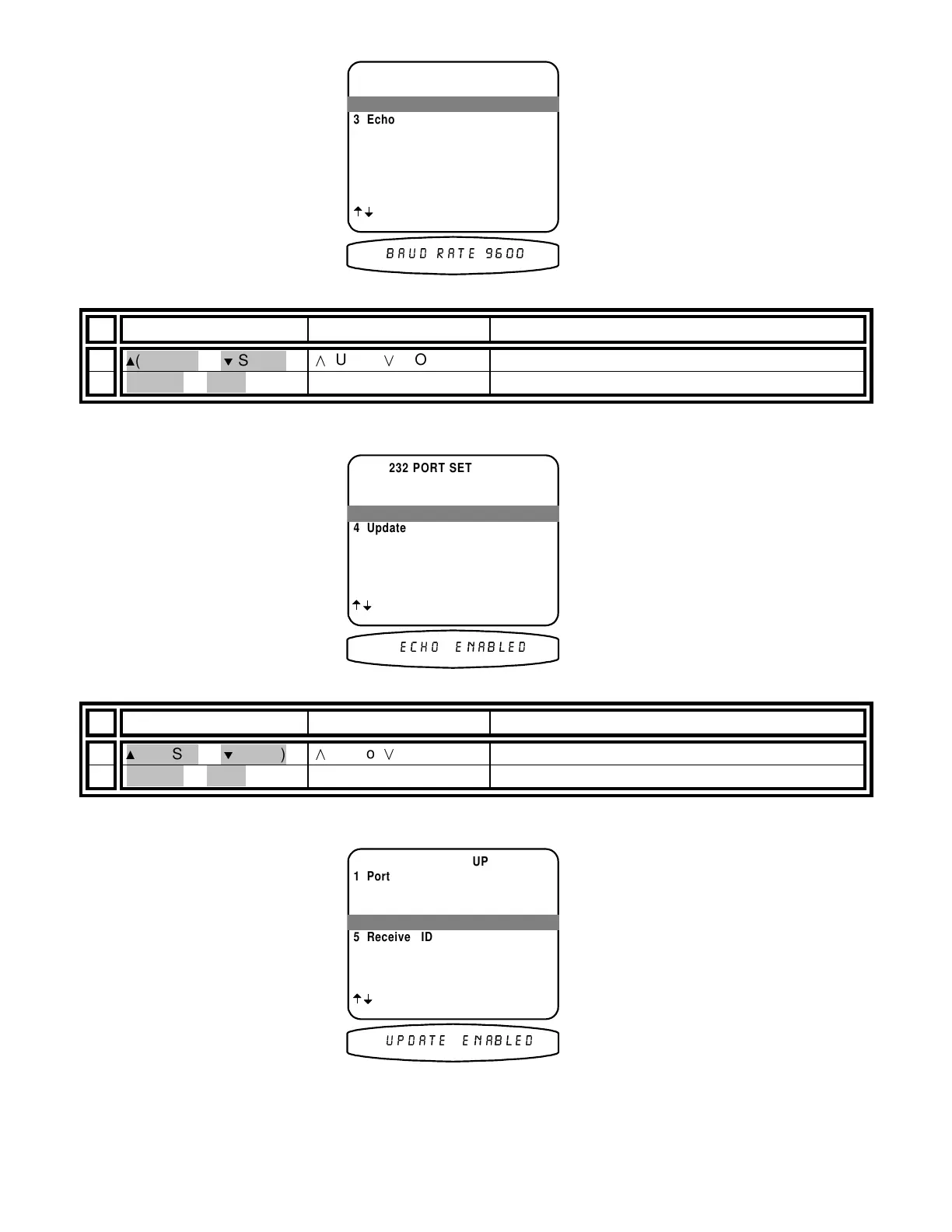

RS-232 baud rate -
From Remote From Front Panel Action
1
(PAUSE) or
V
(STOP)
(UP) or
(DOWN) move to Baud Rate
2
X
(REW) or
W
(FF)
VOLUME KNOB select desired baud rate
RS-232 echo -
From Remote From Front Panel Action
1
(PAUSE) or
V
(STOP)
(UP) or
(DOWN) move to Echo
2
X
(REW) or
W
(FF)
VOLUME KNOB select Enable or Disabled
RS-232 update -
RS-232 PORT SETUP
1 Port Enable
2 Baud Rate 9600
3 Echo Enable
4 Update Enable
5 Receive ID 0
6 Transmit ID 0
next item SEL select
MENU advanced setup
2 Baud Rate 9600
  "#$$
RS-232 PORT SETUP
1 Port Enable
2 Baud Rate 9600
3 Echo Enable
4 Update Enable
5 Receive ID 0
6 Transmit ID 0
next item SEL select
MENU advanced setup
3 Echo Enable
 
RS-232 PORT SETUP
1 Port Enable
2 Baud Rate 9600
3 Echo Enable
4 Update Enable
5 Receive ID 0
6 Transmit ID 0
next item SEL select
MENU advanced setup
4 Update Enable
 
