3.5. Enable Data Transfer
To enable Data transfer to the PC with NID Client installed, one must first establish the
connection between NanoRam and the PC.

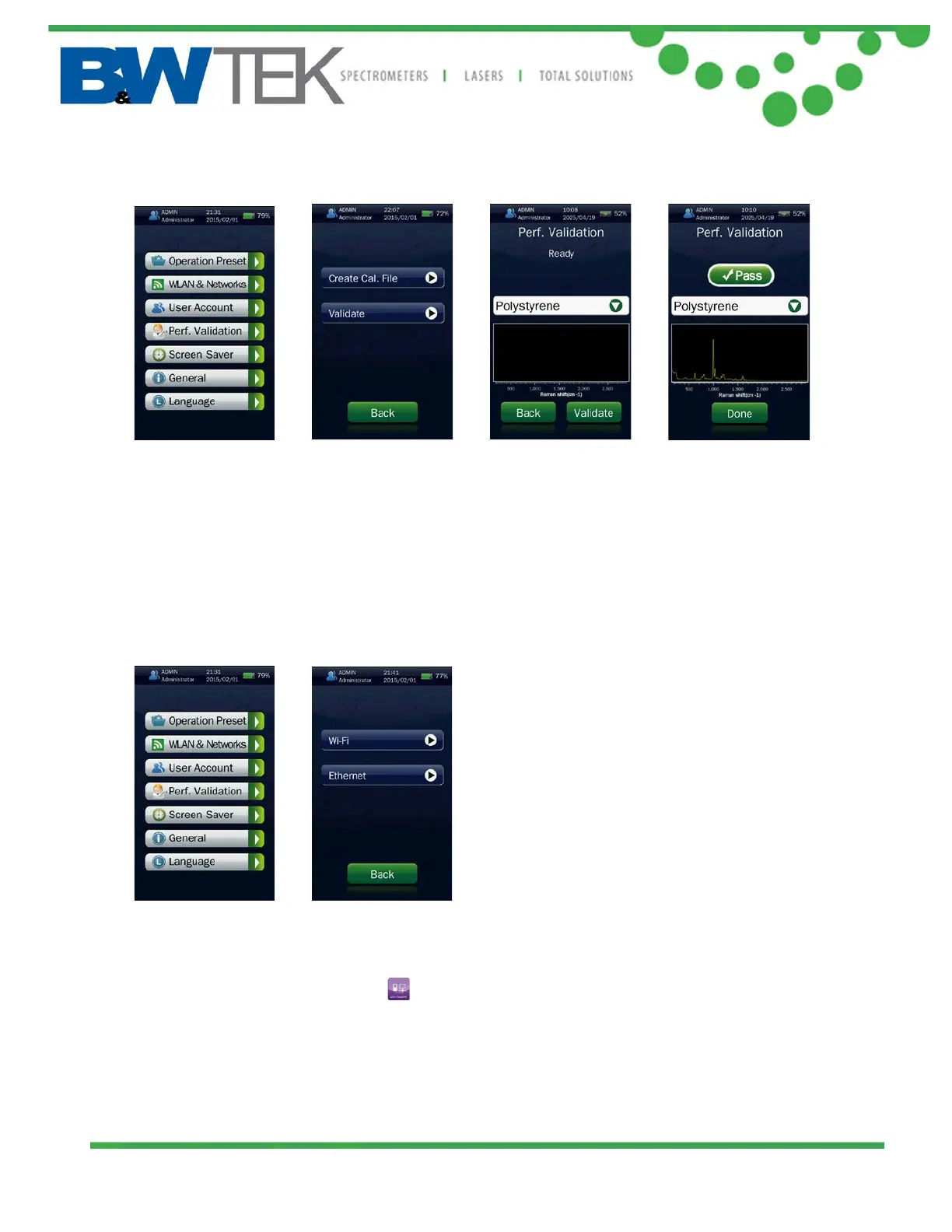

Press the Set Up icon on the home screen, then WLAN & Networks. Press Ethernet for
connection via Ethernet, or press Wi-Fi for connection via wireless.
After making the connection, return to the Home Screen.
Press the Data Transfer icon on the Home screen. The data transfer screen will be
displayed with two options available: Ethernet and Wi-Fi.
To enable Ethernet connection, press Ethernet button. Once the check mark turns green
