2.5 Euro-Style Connectors
The Gateway devices have 8-pin or 12-pin euro-style connectors. The pin numbering and wire color is
identified below. The signal wire to pin number association table identifies all wires for the DX80
Gateway.

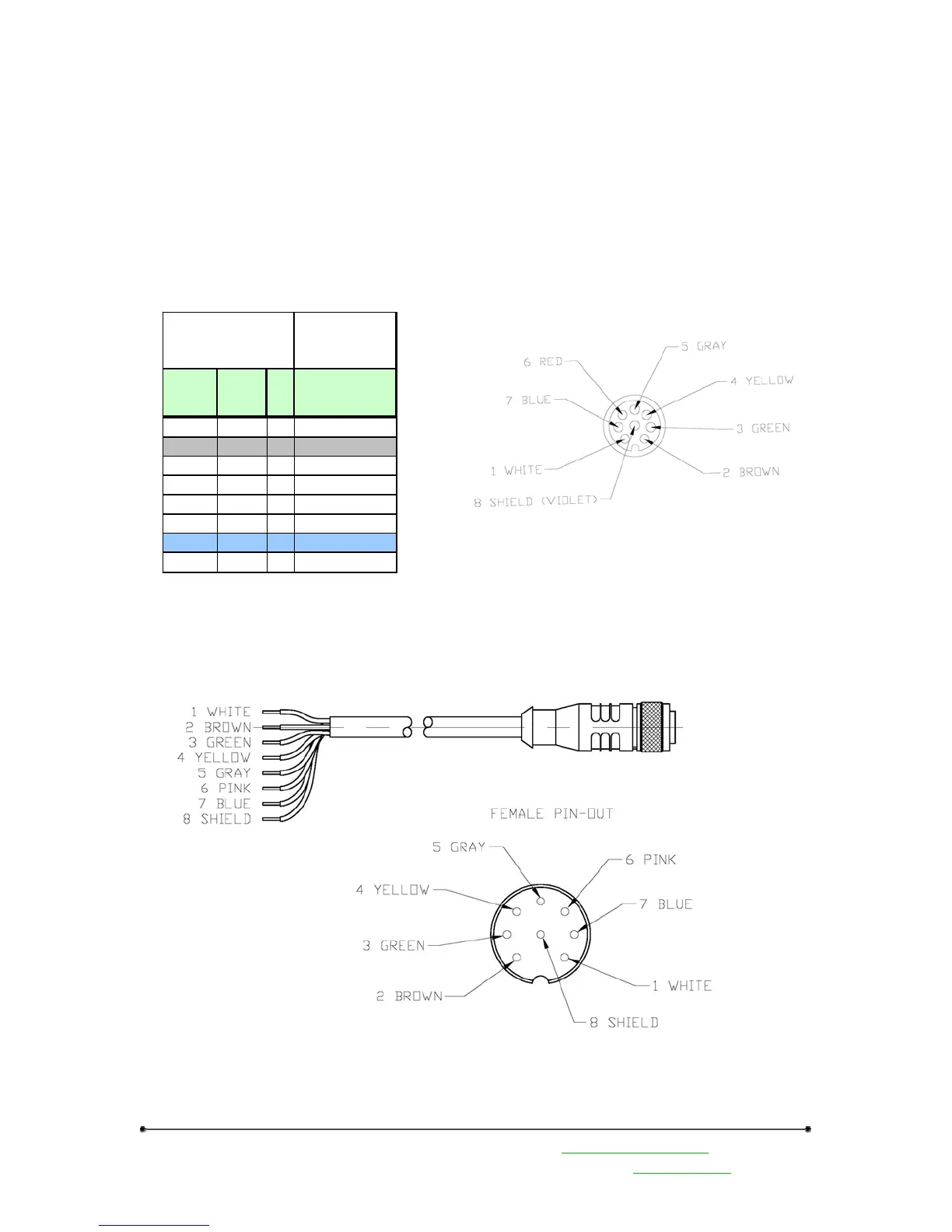

2.5.1 8-pin Euro-Style Wiring (models LPGW2, BPDEN1)
Signal to pin association for 8-pin Euro-Style connectors. DX80 Gateway models
DX80 internal 8-pin Euro Style Connector
(male)
* Looking at the pin end
8-Pin Euro-Style Cable
LPGW2 –
Line Powered
Ga t ewa y
Internal
Wire
Color
Cable
Wire
Color
Pin
#
Euro QD1 male
White White 1
Brown Brown 2 10-30Vdc
Green Green 3 Digital Input
Yellow Yellow 4 Courtesy Ground
Gray Gray 5 NMOS Ou tput
Red Pink 6
Blue Blue 7 Ground
Vio le t wire 8
Shield
Euro-Style
Connector
