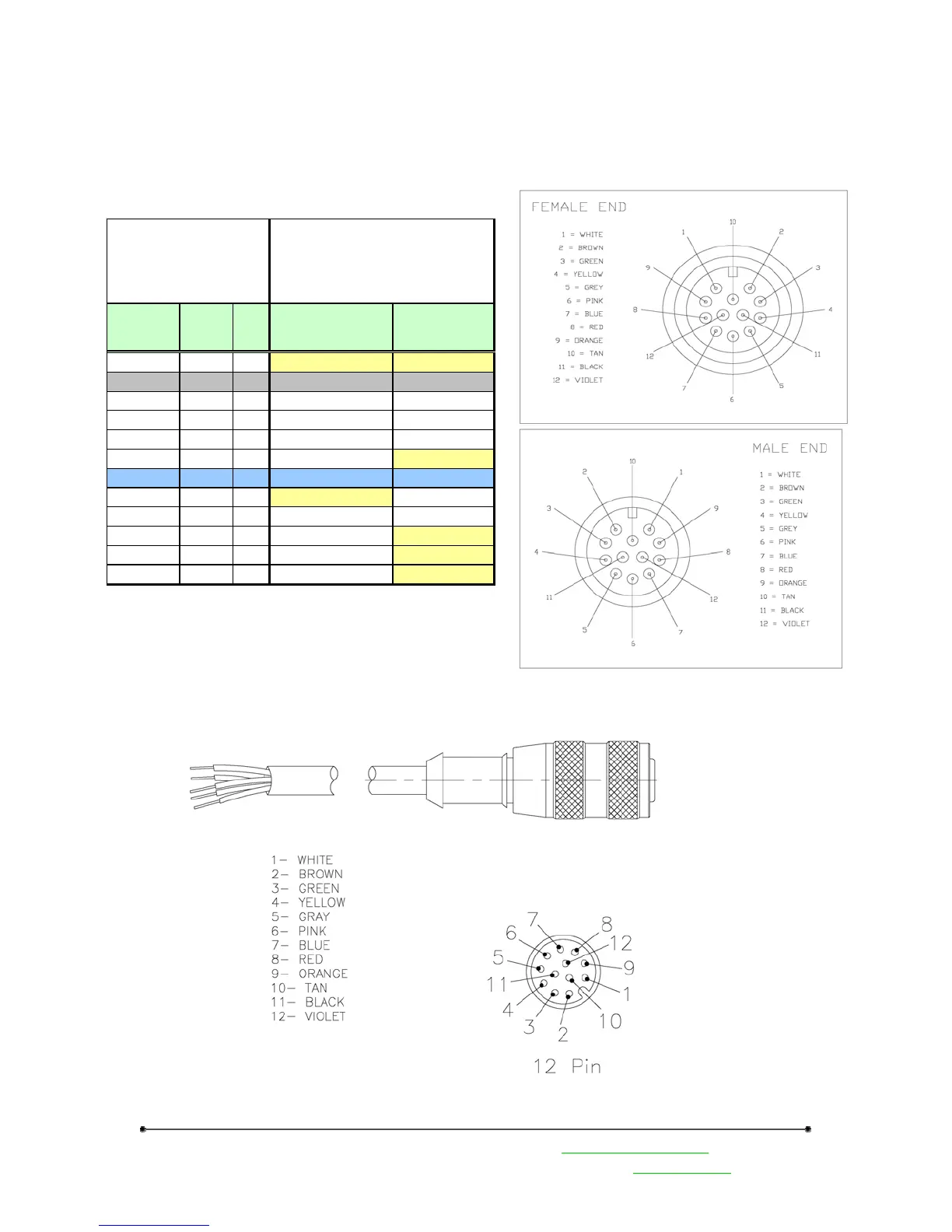

2.5.2 12-pin Euro-Style Wiring
Signal to pin association for 12-pin Euro-Style connectors. DX80 Gateway models
Looking at the connection pin end
Internal
Wire Color
Cable
Wire
Color
Pin # Euro QD1 female Euro QD2 male
White White 1 -
Brown Brown 2 10-30Vdc Output 10-30Vdc Input
Green Green 3 Analog In1 (4-20mA) RS485 -
Yellow Yellow 4 Analog Out1 (4-20mA) RS485 +
Grey Grey 5 Analog In2 (4-20mA) RS485 Signal Gnd
White/Red Pink 6 Analog Out2 (4-20mA) -
Blue Blue 7 Ground Ground
Red Red 8 - RS232Tx
Orange Orange 9 Digital In1 RS232Rx
White/Black Tan 10 Digital Out1 -
Black Black 11 Digital In2 -
Violet Violet 12 Digital Out 2 -
LPGW1 –
Line Powered Gateway
Euro-Style Connector
