PICO-GUARD Controller
Instruction Manual
Each PICO-GUARD Fiber Optic Safety System requires a
controller, optical fiber and one or more pairs of optical
elements. Controllers include the controller instruction manual
(this document), the application and design guide, and
controller mounting hardware. See the Banner Engineering
Machine Safety Catalog or www.bannerengineering.com for
available optical elements.

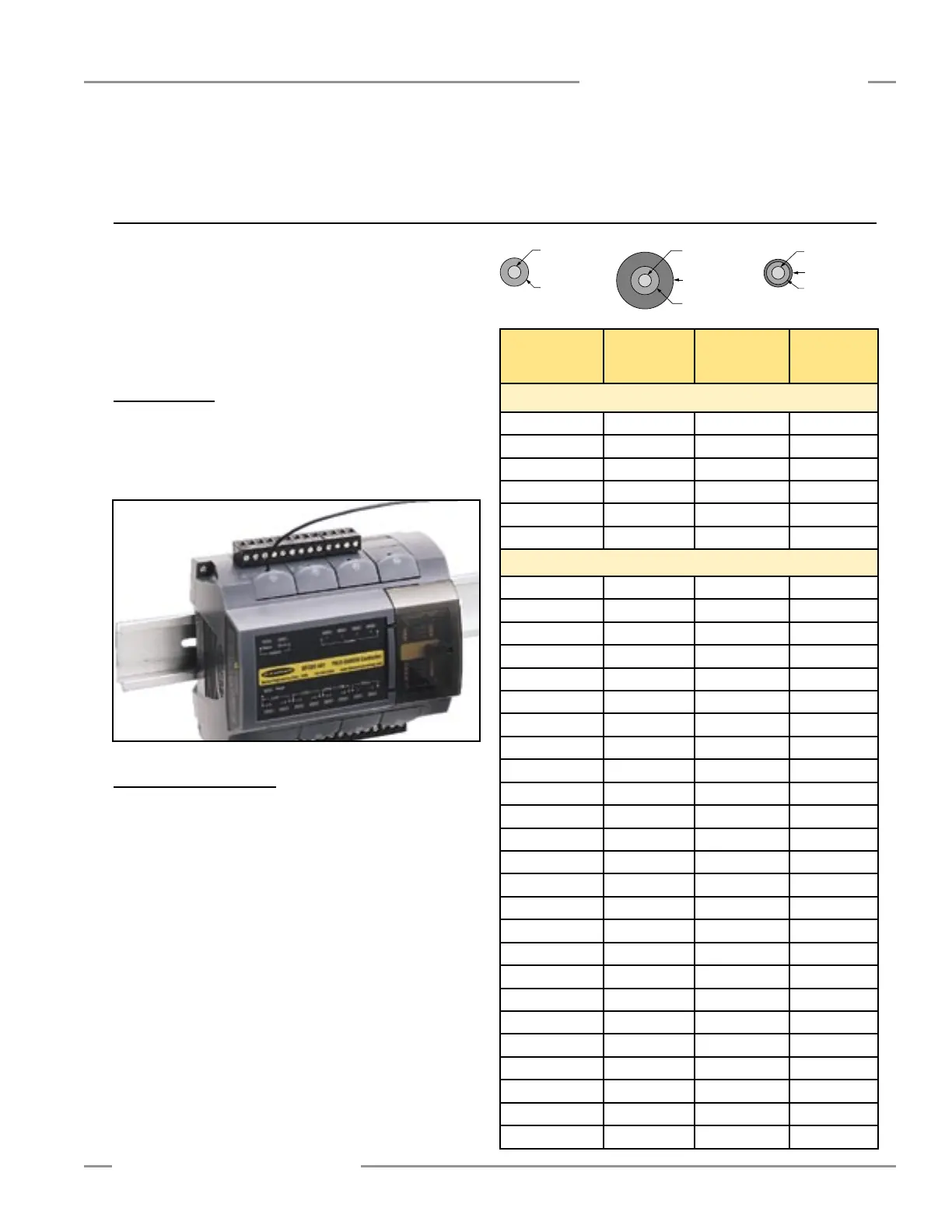

2.1 Controller
4-channel PICO-GUARD controller SFCDT-4A1
4-channel PICO-GUARD controller
with auxiliary channel outputs SFCDT-4A1C
2.2 Plastic Optical Fiber
Plastic optical fiber for use with Banner PICO-GUARD
optical elements is available in bulk form (to be cut to
length in the field) or precut lengths with polished ends for
maximum excess gain. Both are available in three styles:
standard polyethylene jacketed solid-core plastic fiber for
most applications; polyethylene jacketed solid-core plastic
fiber with a PVC sheath to withstand mechanical abrasion or
harsh duty; and polyethylene jacketed solid-core plastic fiber
with fluoropolymer sheathing to withstand harsh chemicals
or gases. Accessory sheathing is also available to provide
additional protection for any of these fibers. A fiber cutter (for
bulk fiber) is shipped with each PICO-GUARD controller.
2. System Components and Specifications
Components and Specifications
Fiber
1 mm (0.04")
Polyethylene Jacket
2.2 mm (0.09")
Standard - no Sheath
PVC Sheath
Fiber
1 mm (0.04")
Polyethylene Jacket
1.8 mm (0.07")
Fiber
1 mm (0.04")
PVC Sheath
5 mm (0.20")
Polyethylene Jacket
2.2 mm (0.09")
Fluoropolymer Sheath
2.2 mm (0.09")
Fluoropolymer Sheath
Length
Standard
Polyethylene
Jacket
PVC
Sheath
PVC
Sheath
Bulk Fiber
9 m (30')
PIU430U PIU430UXP PIU430UXT
18 m (60')
PIU460U PIU460UXP PIU460UXT
30.5 m (100')
PIU4100U PIU4100UXP PIU4100U
61 m (200')
PIU4200U PIU4200UXP PIU4200U
100.5 m (330')
PIU4330U PIU4330UXP PIU4330U
488 m (1600')
PIU41600U PIU41600UXP PIU41600U
Cut Lengths With Polished Ends
0.3 m (1')
PWS43P PWXP43P PWXT43P
0.5 m (1.6') PWS45P
PWXP45P PWXT45P
0.7 m (2.3')
PWS47P PWXP47P PWXT47P
1 m (3.3')
PWS410P PWXP410P PWXT410P
1.5 m (4.9')
PWS415P PWXP415P PWXT415P
2 m (6.5')
PWS420P PWXP420P PWXT420P
2.5 m (8.2')
PWS425P PWXP425P PWXT425P
3 m (9.8')
PWS430P PWXP430P PWXT430P
3.5 m (11.5')
PWS435P PWXP435P PWXT435P
4 m (13.1')
PWS440P PWXP440P PWXT440P
4.5 m (14.7')
PWS445P PWXP445P PWXT445P
5 m (16.4')
PWS450P PWXP450P PWXT450P
6 m (19.7')
PWS460P PWXP460P PWXT460P
7 m (23.0')
PWS470P PWXP470P PWXT470P
8 m (26.2')
PWS480P PWXP480P PWXT480P
9 m (29.5')
PWS490P PWXP490P PWXT490P
10 m (32.8')
PWS4100P PWXP4100P PWXT4100P
11 m (36')
PWS4110P PWXP4110P PWXT4110P
12 m (39.4')
PWS4120P PWXP4120P PWXT4120P
13 m (42.6')
PWS4130P PWXP4130P PWXT4130P
14 m (46')
PWS4140P PWXP4140P PWXT4140P
15 m (49.2')
PWS4150P PWXP4150P PWXT4150P
20 m (65.6')
PWS4200P PWXP4200P PWXT4200P
25 m (82')
PWS4250P PWXT4250P PWXT4250P
30 m (98.4')
PWS4300P PWXP4300P PWXT4300P
